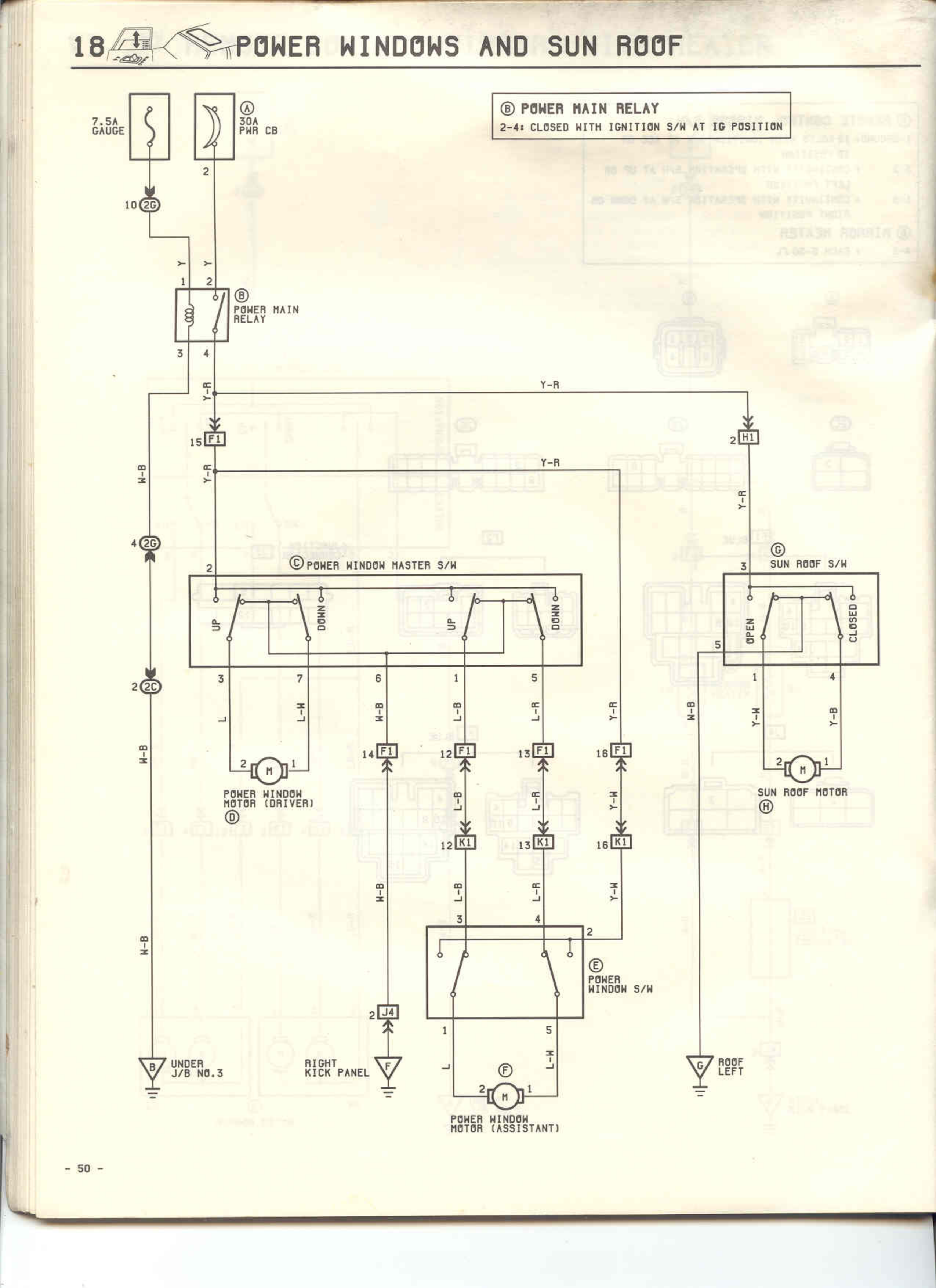

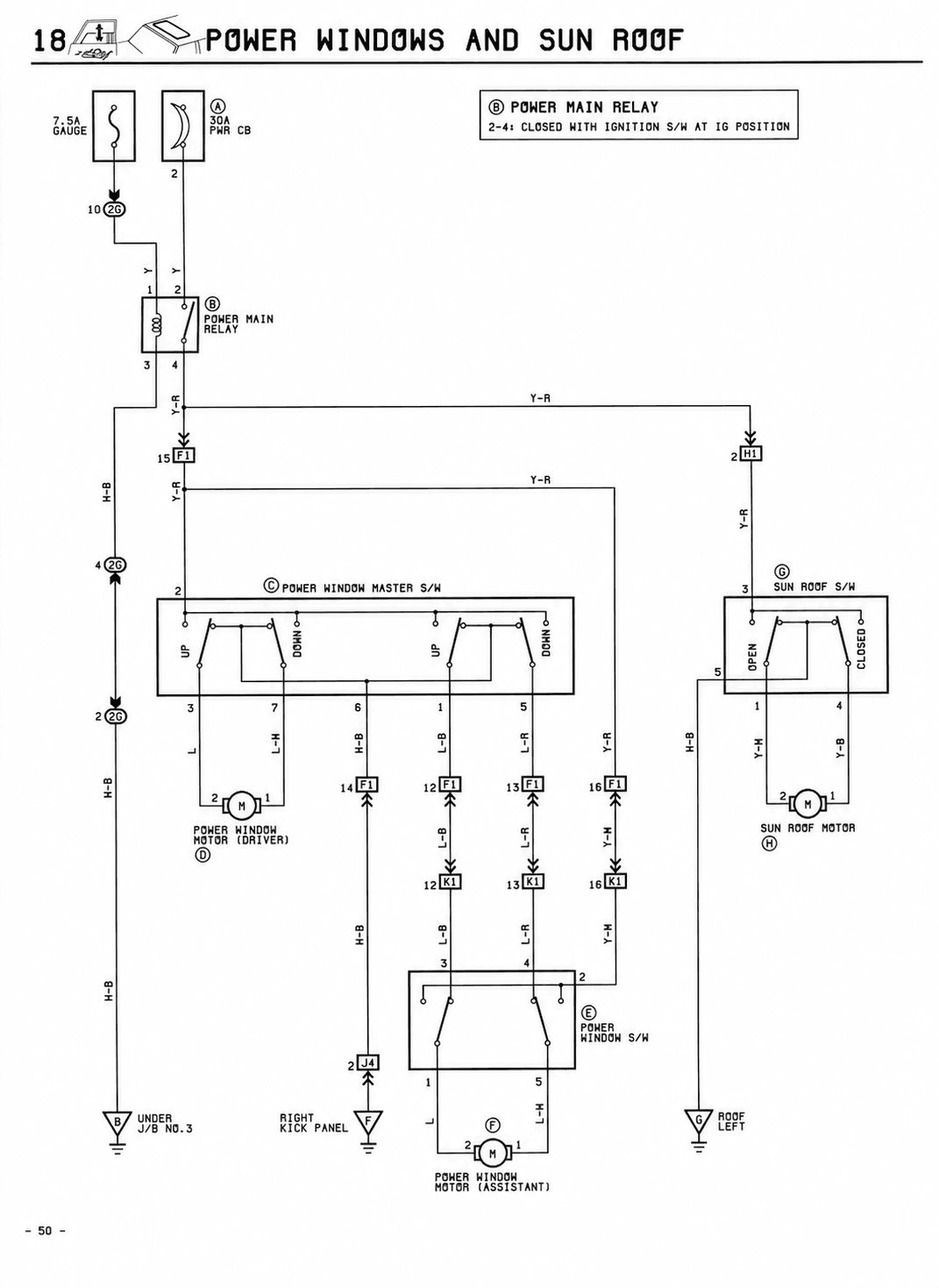

18 POWER WINDOWS AND SUN ROOF
7.5A GAUGE
30A 30 CB
2
10 C0
POWER MAIN RELAY
2-41 CLOSED WITH IGNITION S/W AT IG POSITION
6
POWER MAIN RELAY
3 4
Y-R
15 F1
2 M1
Y-R
Y-B
Y-B
Y-B
W-B
4 C0
POWER WINDOW MASTER S/W
SUN ROOF S/W
2
3
UP
DOWN
UP
DOWN
OPEN
CLOSE
2 C0
3
7
6
1
5
1
4
Y-W
Y-W
W-B
L-B
L-R
L-R
W-B
Y-W
Y-B
2
1
14 F1
12 F1
13 F1
16 F1
2
1
W-B
POWER WINDOW MOTOR (DRIVER)
D
L-B
L-R
Y-W
SUN ROOF MOTOR
M
12 M1
13 M1
16 M1
W-B
L-B
L-R
Y-W
4
2
W-B
POWER WINDOW S/W
2 F4
1
5
Y-R
UNDER J/B NO.3
RIGHT KICK PANEL
POWER WINDOW MOTOR (ASSISTANT)
ROOF LEFT
- 50 -
