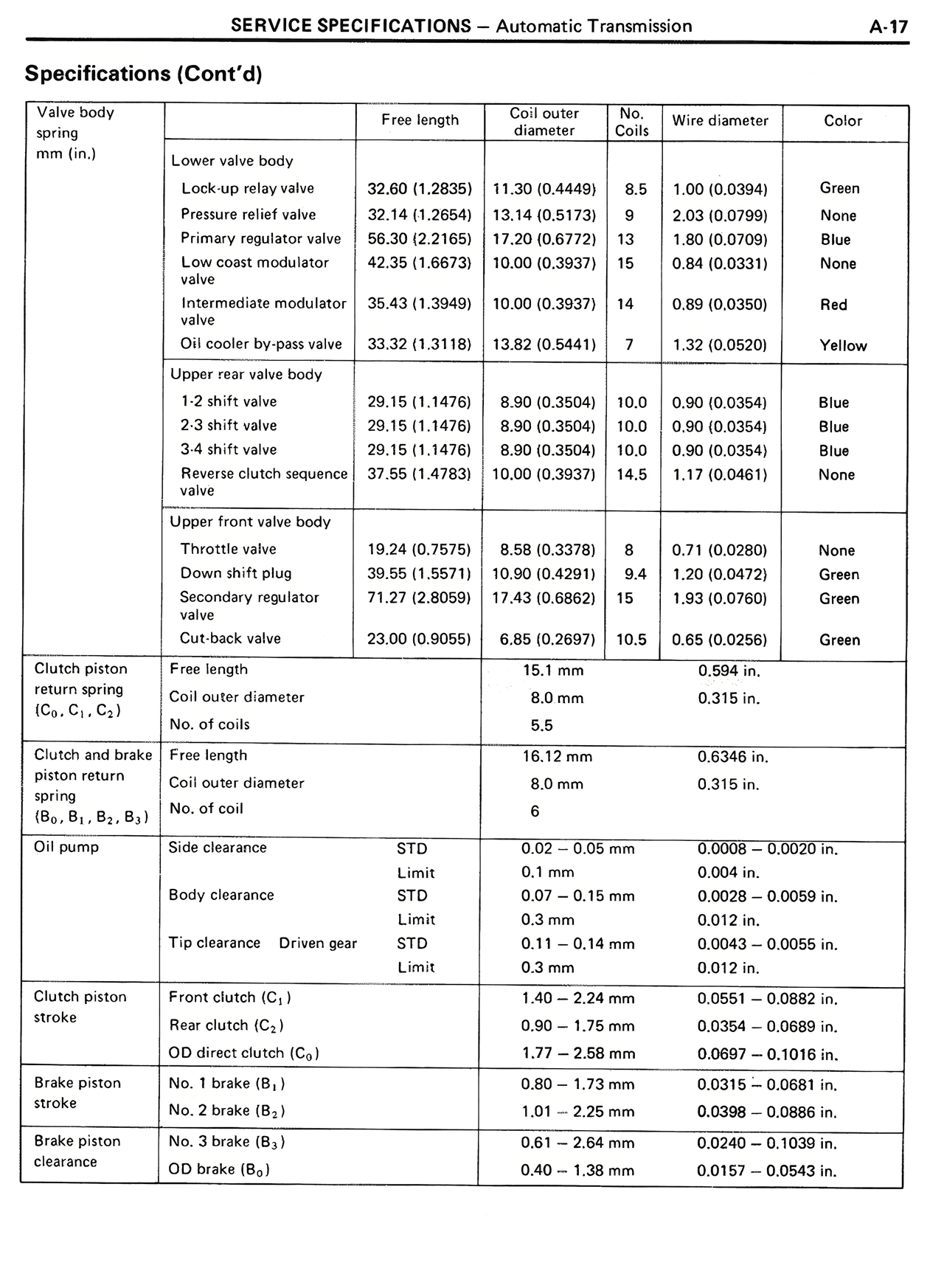

Specifications (Cont'd)
Valve body
spring
mm (in.)
Lower valve body
Lock-up relay valve
Pressure relief valve
Primary regulator valve
Low coast modulator
valve
Intermediate modulator
valve
Oil cooler by-pass valve
Upper rear valve body
1-2 shift valve
2-3 shift valve
3-4 shift valve
Reverse clutch sequence
valve
Upper front valve body
Throttle valve
Down shift plug
Secondary regulator
valve
Cut-back valve
Clutch piston
return spring
(C₁₁, C₁, C₂)
Free length
Coil outer diameter
No. of coils
Clutch and brake
piston return
spring
(B₀, B₁, B₂, B₃)
Free length
Coil outer diameter
No. of coil
Oil pump
Side clearance
STD
Limit
Body clearance
STD
Limit
Tip clearance
Driven gear
STD
Limit
Clutch piston
stroke
Front clutch (C₁)
Rear clutch (C₂)
OD direct clutch (C₀)
Brake piston
stroke
No. 1 brake (B₁)
No. 2 brake (B₂)
Brake piston
clearance
No. 3 brake (B₃)
OD brake (B₀)
Free length
32.60 (1.2835)
32.14 (1.2654)
58.30 (2.2165)
42.35 (1.6673)
35.43 (1.3949)
33.32 (1.3118)
29.15 (1.1476)
29.15 (1.1476)
29.15 (1.1476)
37.55 (1.4783)
19.24 (0.7575)
39.65 (1.5571)
71.27 (2.8059)
23.00 (0.9055)
Coil outer
diameter
11.30 (0.4449)
13.14 (0.5173)
17.20 (0.6772)
10.00 (0.3937)
10.00 (0.3937)
13.82 (0.5441)
8.90 (0.3504)
8.90 (0.3504)
8.90 (0.3504)
10.00 (0.3937)
8.58 (0.3378)
10.90 (0.4291)
17.43 (0.6862)
6.85 (0.2697)
15.1 mm
8.0 mm
5.5
16.12 mm
8.0 mm
6
0.02 — 0.05 mm
0.1 mm
0.07 — 0.15 mm
0.3 mm
0.11 — 0.14 mm
0.3 mm
1.40 — 2.24 mm
0.90 — 1.75 mm
1.77 — 2.58 mm
0.80 — 1.73 mm
1.01 — 2.25 mm
0.61 — 2.64 mm
0.40 — 1.38 mm
No.
Coils
8.5
9
13
15
14
7
10.0
10.0
10.0
14.5
8
9.4
15
10.5
Wire diameter
1.00 (0.0394)
2.03 (0.0799)
1.80 (0.0709)
0.84 (0.0331)
0.89 (0.0350)
1.32 (0.0520)
0.90 (0.0354)
0.90 (0.0354)
0.90 (0.0354)
1.17 (0.0461)
0.71 (0.0280)
1.20 (0.0472)
1.93 (0.0760)
0.65 (0.0256)
0.594 in.
0.315 in.
0.6346 in.
0.315 in.
0.0008 — 0.0020 in.
0.004 in.
0.0028 — 0.0059 in.
0.012 in.
0.0043 — 0.0056 in.
0.012 in.
0.0551 — 0.0882 in.
0.0354 — 0.0689 in.
0.0697 — 0.1016 in.
0.0315 — 0.0681 in.
0.0398 — 0.0886 in.
0.0240 — 0.1039 in.
0.0157 — 0.0543 in.
Color
Green
None
Blue
None
Red
Yellow
Blue
Blue
Blue
None
None
Green
Green
Green
