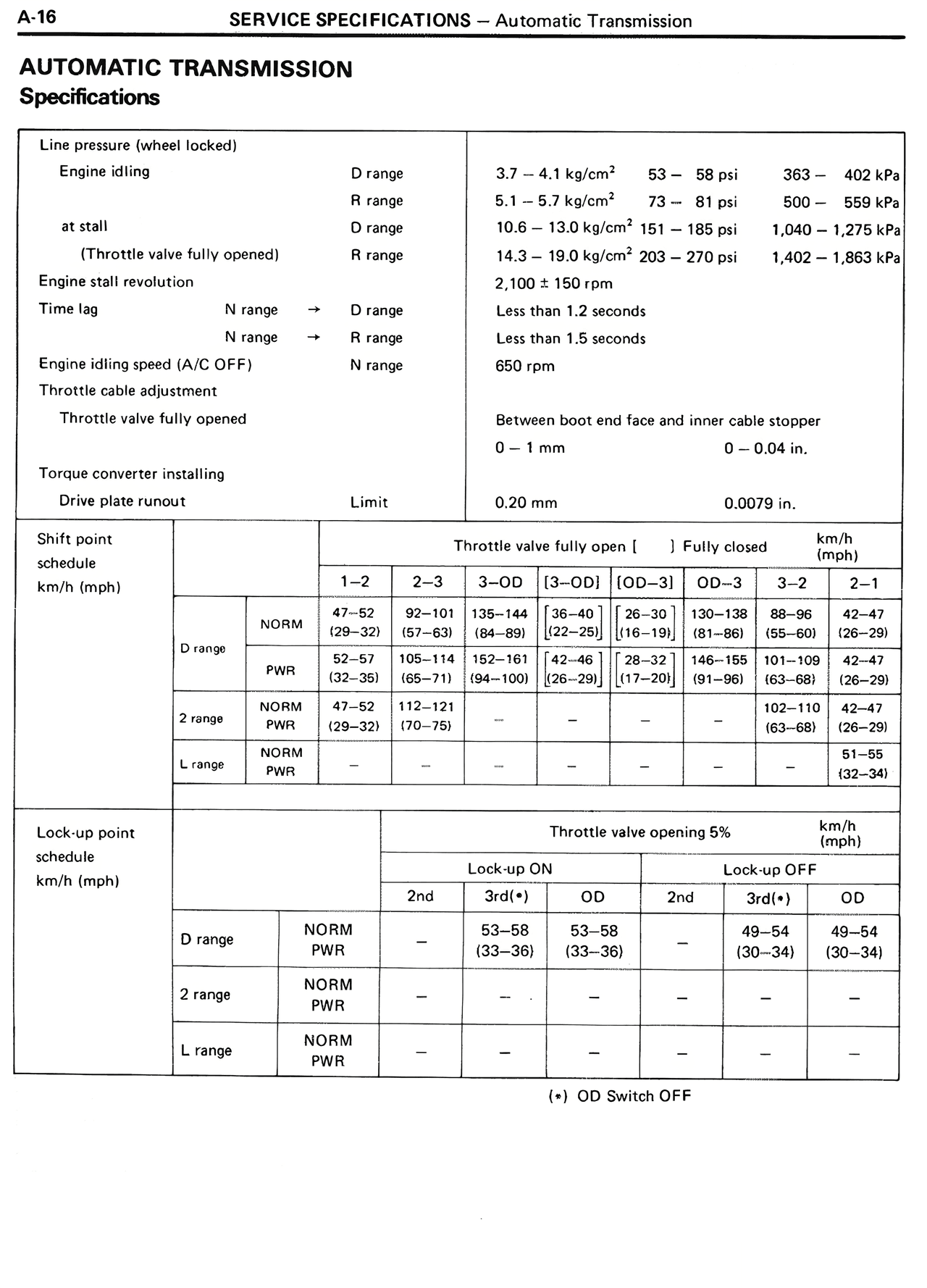

Line pressure (wheel locked)
Engine idling D range 3.7 - 4.1 kg/cm² 53 - 58 psi 363 - 402 kPa
R range 5.1 - 5.7 kg/cm² 73 - 81 psi 500 - 559 kPa
at stall D range 10.6 - 13.0 kg/cm² 151 - 185 psi 1,040 - 1,275 kPa
(Throttle valve fully opened) R range 14.3 - 19.0 kg/cm² 203 - 270 psi 1,402 - 1,863 kPa
Engine stall revolution 2,100 ± 150 rpm
Time lag
N range → D range Less than 1.2 seconds
N range → R range Less than 1.5 seconds
Engine idling speed (A/C OFF) N range 650 rpm
Throttle cable adjustment
Throttle valve fully opened Between boot end face and inner cable stopper
0 - 1 mm 0 - 0.04 in.
Torque converter installing
Drive plate runout Limit 0.20 mm 0.0079 in.
Shift point
schedule Throttle valve fully open [ ] Fully closed km/h
km/h (mph) (mph)
1-2 2-3 3-OD [3-OD] [OD-3] OD-3 3-2 2-1
NORM 47-52 92-101 135-144 [36-40] [26-30] 130-138 88-96 42-47
D range (29-32)(57-63)(84-89) [(22-25)][(16-19)](81-86) (55-60) (26-29)
PWR 52-57 105-114 152-161 [42-46] [28-32] 146-155 101-109 42-47
(32-38)(66-71) (94-100)[(26-29)][(17-20)](91-96) (63-68) (26-29)
2 range NORM 47-52 112-121 - - - - 102-110 42-47
PWR (29-32)(70-75) (63-68) (26-29)
L range NORM - - - - - - - 51-55
PWR (32-34)
Lock-up point
schedule Throttle valve opening 5% km/h
km/h (mph) (mph)
Lock-up ON Lock-up OFF
2nd 3rd(*) OD 2nd 3rd(*) OD
D range NORM - 53-58 53-58 - 49-54 49-54
PWR (33-36) (33-36) (30-34) (30-34)
2 range NORM - - - - - -
PWR
L range NORM - - - - - -
PWR
(*) OD Switch OFF
