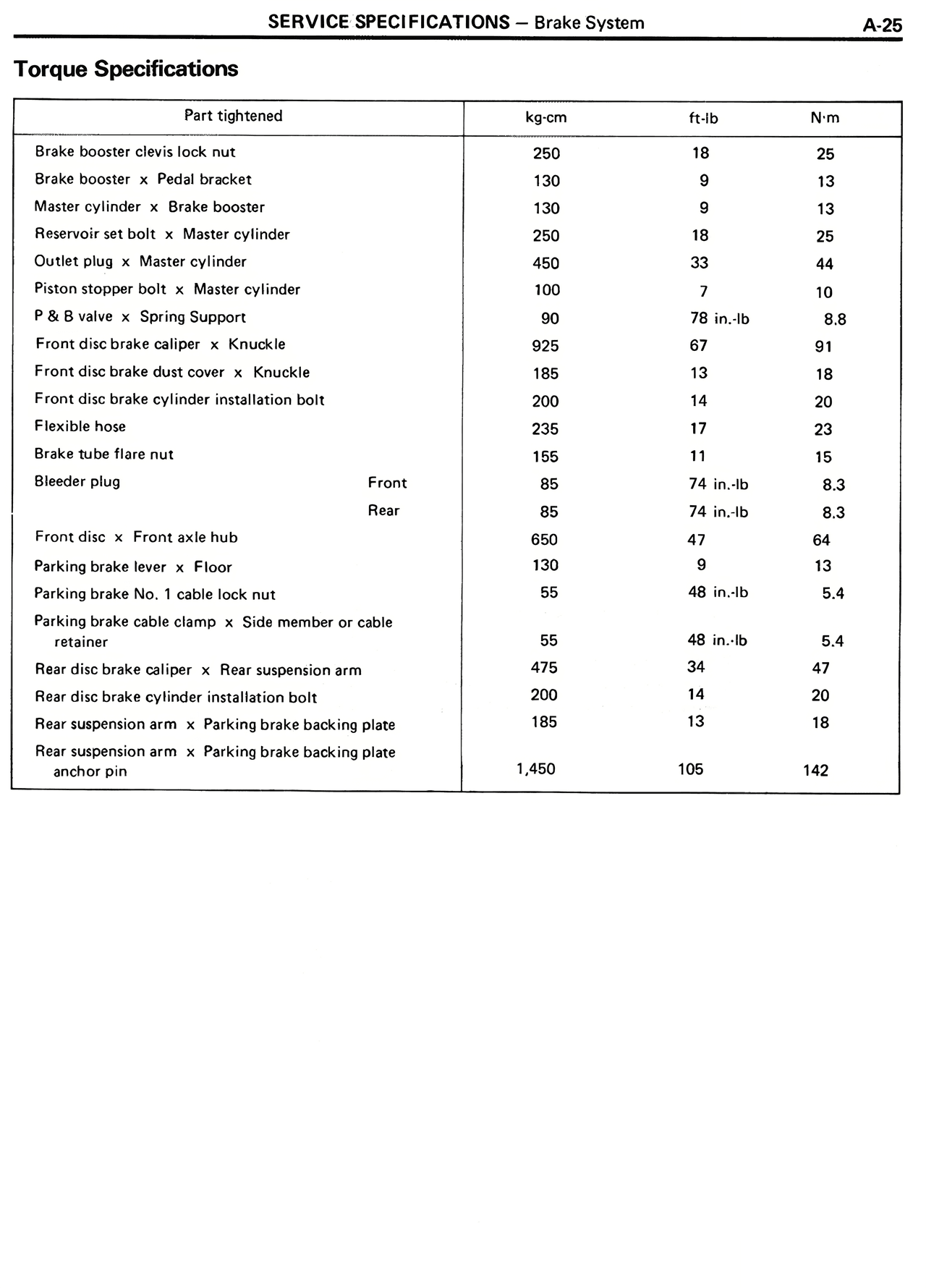

Torque Specifications
Part tightened kg·cm ft·lb N·m
Brake booster clevis lock nut 250 18 25
Brake booster × Pedal bracket 130 9 13
Master cylinder × Brake booster 130 9 13
Reservoir set bolt × Master cylinder 250 18 25
Outlet plug × Master cylinder 450 33 44
Piston stopper bolt × Master cylinder 100 7 10
P & B valve × Spring Support 90 78 in.·lb 8.8
Front disc brake caliper × Knuckle 925 67 91
Front disc brake dust cover × Knuckle 185 13 18
Front disc brake cylinder installation bolt 200 14 20
Flexible hose 235 17 23
Brake tube flare nut 155 11 15
Bleeder plug Front 85 74 in.·lb 8.3
Rear 85 74 in.·lb 8.3
Front disc × Front axle hub 650 47 64
Parking brake lever × Floor 130 9 13
Parking brake No. 1 cable guide nut 65 48 in.·lb 5.4
Parking brake cable clamp × Side member or cable
retainer 55 48 in.·lb 5.4
Rear disc brake caliper × Rear suspension arm 475 34 47
Rear disc brake cylinder installation bolt 200 14 20
Rear suspension arm × Parking brake backing plate 185 13 18
Rear suspension arm × Parking brake backing plate
anchor pin 1,450 105 142
