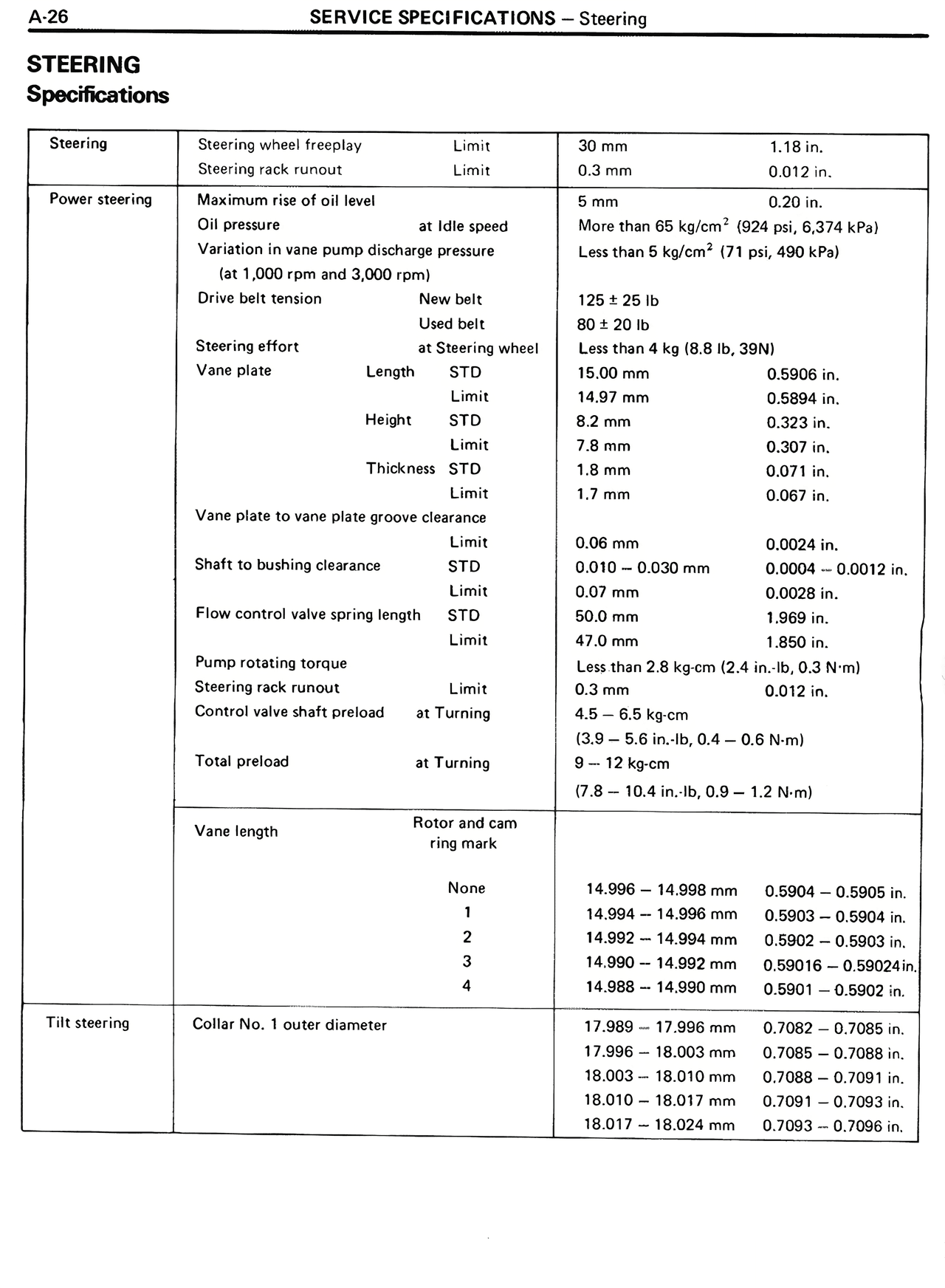

STEERING
Specifications
Steering
Steering wheel freeplay Limit 30 mm 1.18 in.
Steering rack runout Limit 0.3 mm 0.012 in.
Power steering
Maximum rise of oil level 5 mm 0.20 in.
Oil pressure at idle speed More than 65 kg/cm² (924 psi, 6,374 kPa)
Variation in vane pump discharge pressure Less than 5 kg/cm² (71 psi, 490 kPa)
(at 1,000 rpm and 3,000 rpm)
Drive belt tension New belt 125 ± 25 lb
Used belt 80 ± 20 lb
Steering effort at Steering wheel Less than 4 kg (8.8 lb, 39N)
Vane plate Length STD 15.00 mm 0.5906 in.
Limit 14.97 mm 0.5894 in.
Height STD 8.2 mm 0.323 in.
Limit 7.8 mm 0.307 in.
Thickness STD 1.8 mm 0.071 in.
Limit 1.7 mm 0.067 in.
Vane plate to vane plate groove clearance
Limit 0.06 mm 0.0024 in.
Shaft to bushing clearance STD 0.010 — 0.030 mm 0.0004 — 0.0012 in.
Limit 0.07 mm 0.0028 in.
Flow control valve spring length STD 50.0 mm 1.969 in.
Limit 47.0 mm 1.850 in.
Pump rotating torque Less than 2.8 kg·cm (2.4 .in.·lb, 0.3 N·m)
Steering rack runout Limit 0.3 mm 0.012 in.
Control valve shaft preload at Turning 4.5 — 6.5 kg·cm
(3.9 — 5.6 in.·lb, 0.4 — 0.6 N·m)
Total preload at Turning 9 — 12 kg·cm
(7.8 — 10.4 in.·lb, 0.9 — 1.2 N·m)
Vane length Rotor and cam
ring mark
None 14.996 — 14.998 mm 0.5904 — 0.5905 in.
1 14.994 — 14.996 mm 0.5903 — 0.5904 in.
2 14.992 — 14.994 mm 0.5902 — 0.5903 in.
3 14.990 — 14.992 mm 0.59016 — 0.59024 in.
4 14.988 — 14.990 mm 0.5901 — 0.5902 in.
Tilt steering Collar No. 1 outer diameter 17.989 — 17.996 mm 0.7082 — 0.7085 in.
17.996 — 18.003 mm 0.7085 — 0.7088 in.
18.003 — 18.010 mm 0.7088 — 0.7091 in.
18.010 — 18.017 mm 0.7091 — 0.7093 in.
18.017 — 18.024 mm 0.7093 — 0.7096 in.
