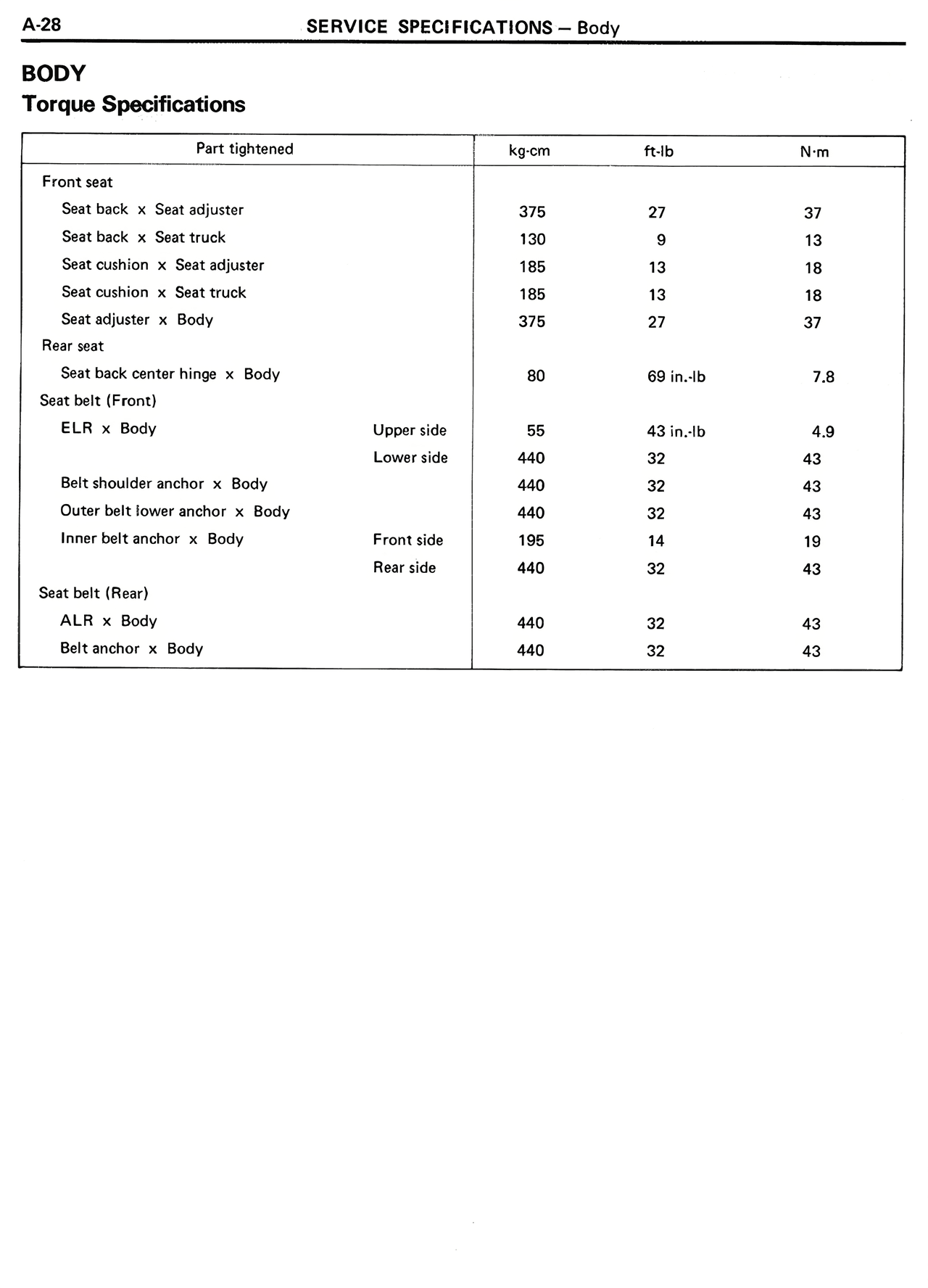

A-28
SERVICE SPECIFICATIONS — Body

BODY
Torque Specifications

Part tightend				kg·cm		ft·lb		N·m

Front seat
Seat back × Seat adjuster			375		27		37
Seat back × Seat truck				130		9		13
Seat cushion × Seat adjuster			185		13		18
Seat cushion × Seat truck			185		13		18
Seat adjuster × Body				375		27		37

Rear seat
Seat back center hinge × Body			80		69 in.·lb	7.8

Seat belt (Front)
ELR × Body			Upper side	55		43 in.·lb	4.9
				Lower side	440		32		43
Belt shoulder anchor × Body			440		32		43
Outer belt lower anchor × Body			440		32		43
Inner belt anchor × Body	Front side	195		14		19
				Rear side	440		32		43

Seat belt (Rear)
ALR × Body					440		32		43
Belt anchor × Body				440		32		43
