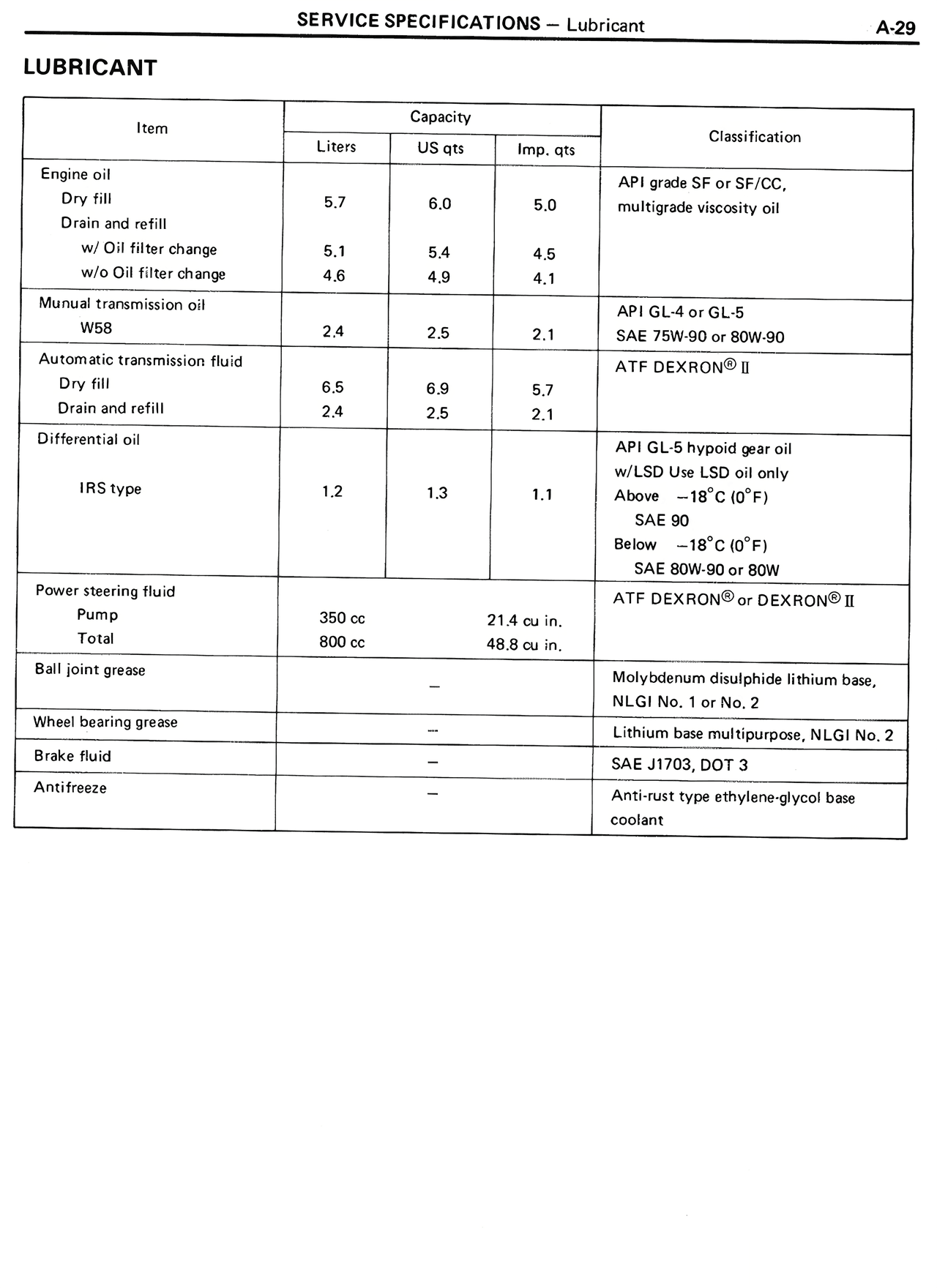

LUBRICANT
Item
Capacity
Classification
Liters
US qts
Imp. qts
Engine oil
Dry fill
5.7
6.0
5.0
API grade SF or SF/CC, multigrade viscosity oil
Drain and refill
w/ Oil filter change
5.1
5.4
4.5
w/o Oil filter change
4.6
4.9
4.1
Manual transmission oil
W58
2.4
2.5
2.1
API GL-4 or GL-5
SAE 75W-90 or 80W-90
Automatic transmission fluid
Dry fill
6.5
6.9
5.7
ATF DEXRON® II
Drain and refill
2.4
2.5
2.1
Differential oil
IRS type
1.2
1.3
1.1
API GL-5 hypoid gear oil
w/LSD Use LSD oil only
Above -18°C (0°F)
SAE 90
Below -18°C (0°F)
SAE 80W-90 or 80W
Power steering fluid
Pump
350 cc
21.4 cu in.
ATF DEXRON® or DEXRON® II
Total
800 cc
48.8 cu in.
Ball joint grease
—
Molybdenum disulphide lithium base, NLGI No. 1 or No. 2
Wheel bearing grease
—
Lithium base multipurpose, NLGI No. 2
Brake fluid
—
SAE J1703, DOT 3
Antifreeze
—
Anti-rust type ethylene-glycol base coolant
