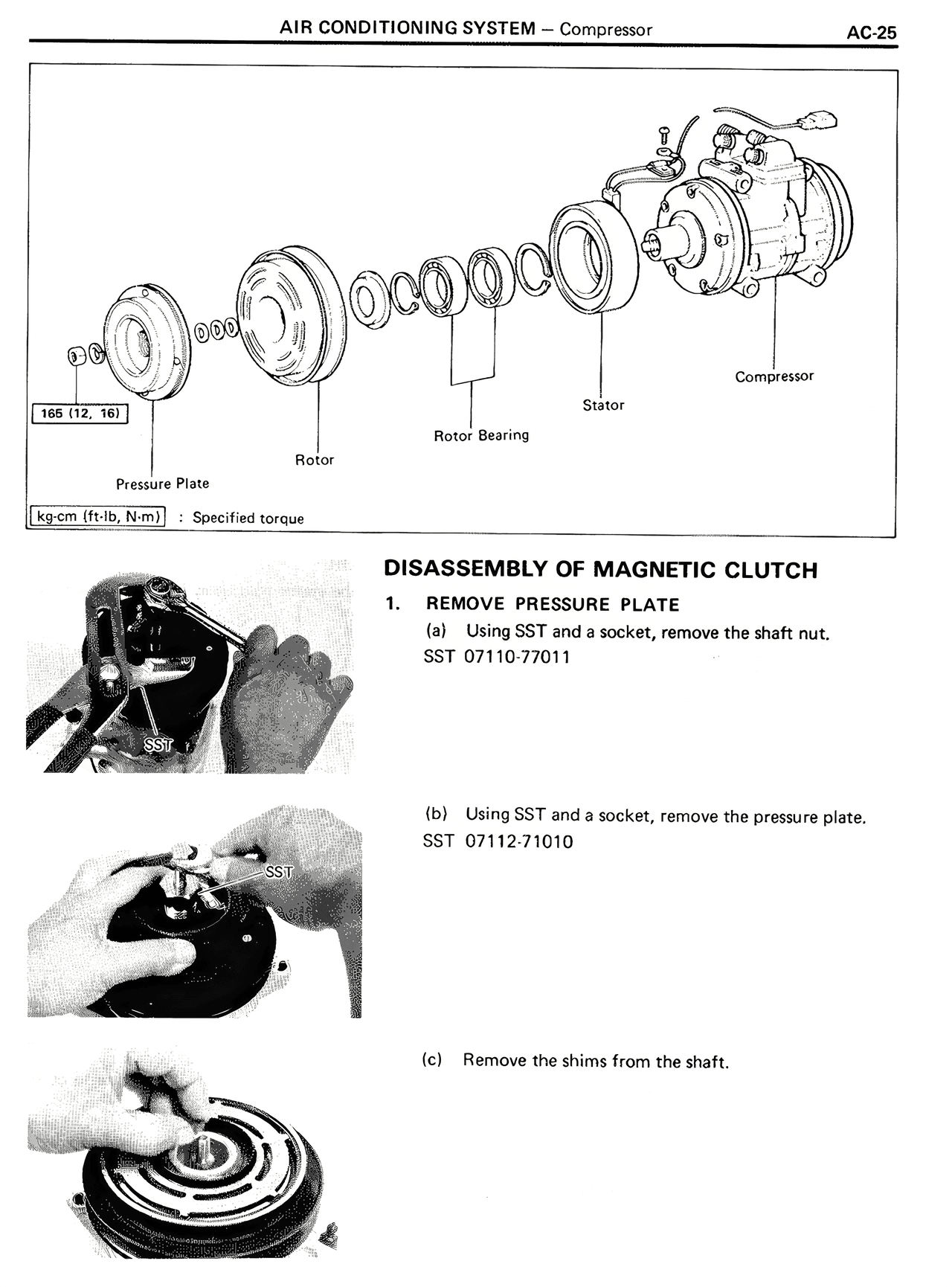

AC/Air Conditioning System — Disassembly of Magnetic Clutch, page 25

AIR CONDITIONING SYSTEM — Compressor                                    AC-25

[Diagram showing exploded view with labels:]
Pressure Plate
Rotor
Rotor Bearing
Stator
Compressor

[165 [12, 16]]
kg·cm {ft-lb, N·m} : Specified torque

DISASSEMBLY OF MAGNETIC CLUTCH

1. REMOVE PRESSURE PLATE

(a) Using SST and a socket, remove the shaft nut.
SST 07110 72011

(b) Using SST and a socket, remove the pressure plate.
SST 07112 71010

(c) Remove the shims from the shaft.
