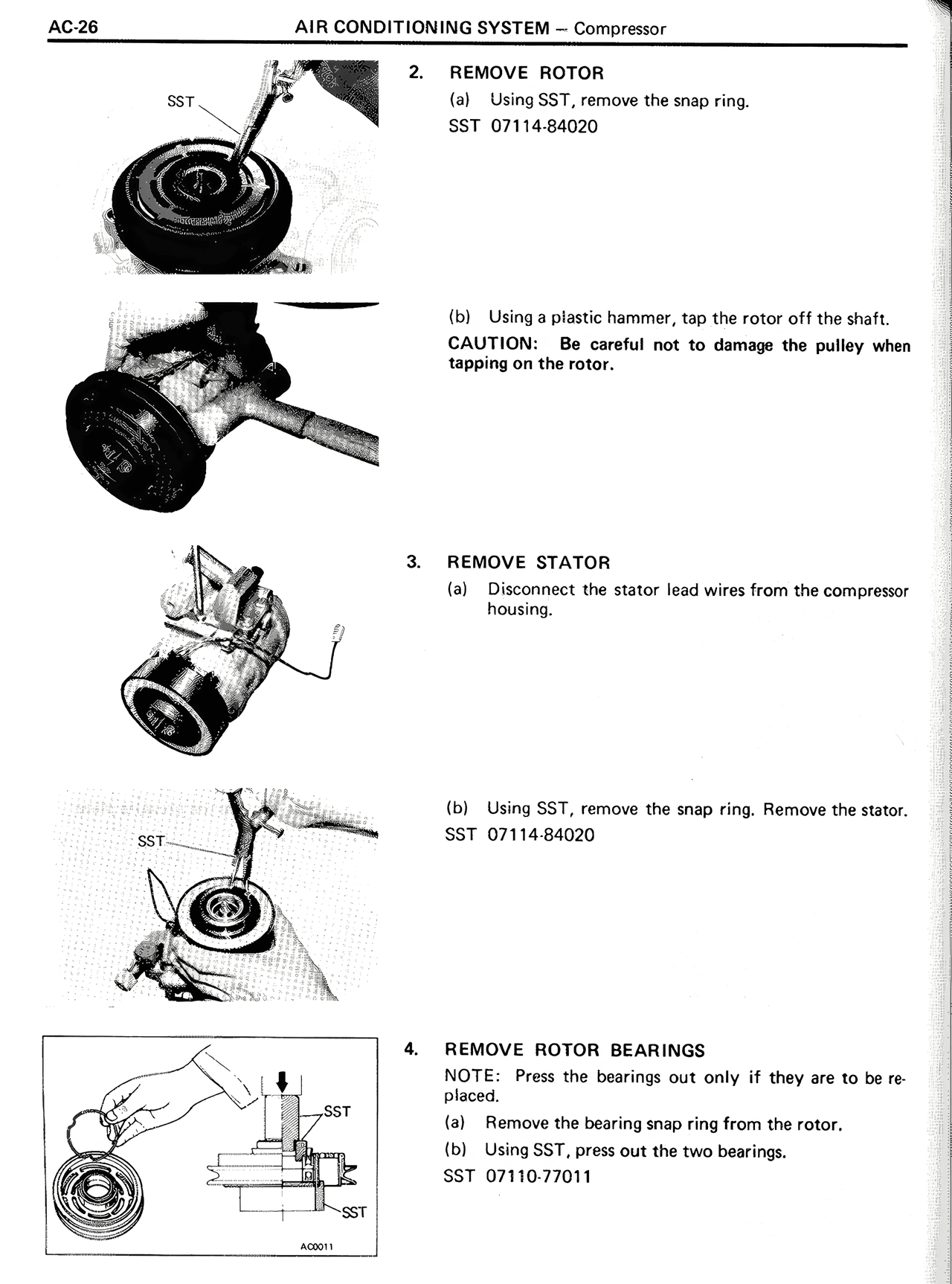

AC-26                    AIR CONDITIONING SYSTEM - Compressor

2.    REMOVE ROTOR
      (a)  Using SST, remove the snap ring.
           SST  07114-84020

      (b)  Using a plastic hammer, tap the rotor off the shaft.
           CAUTION:  Be careful not to damage the pulley when
                     tapping on the rotor.

3.    REMOVE STATOR
      (a)  Disconnect the stator lead wires from the compressor
           housing.

      (b)  Using SST, remove the snap ring. Remove the stator.
           SST  07114-84020

4.    REMOVE ROTOR BEARINGS
      NOTE: Press the bearings out only if they are to be re-
            placed.
      (a)  Remove the bearing snap ring from the rotor.
      (b)  Using SST, press out the two bearings.
           SST  07110-77011
