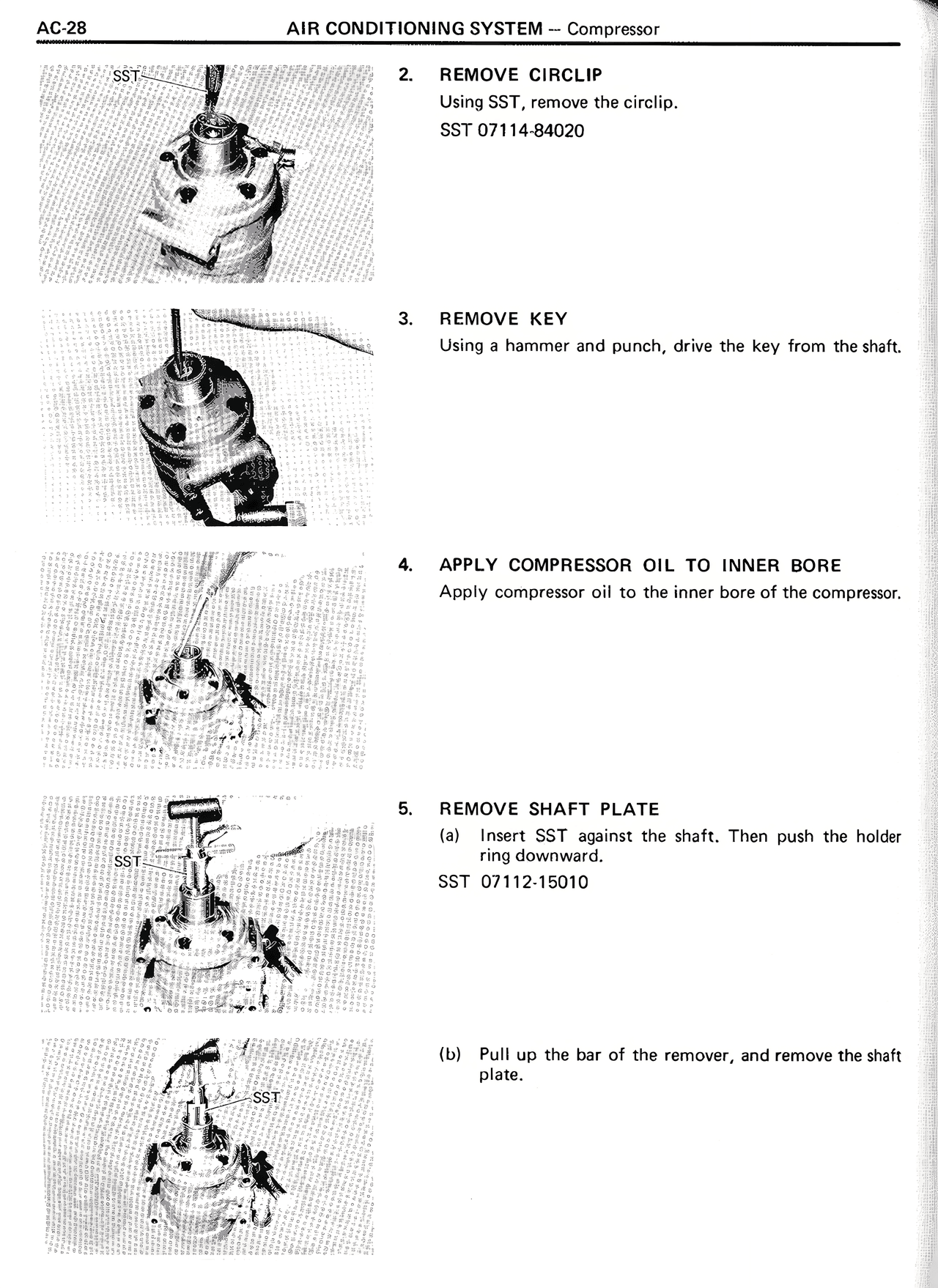

SST 2. REMOVE CIRCLIP Using SST, remove the circlip. SST 07114 84020 3. REMOVE KEY Using a hammer and punch, drive the key from the shaft. 4. APPLY COMPRESSOR OIL TO INNER BORE Apply compressor oil to the inner bore of the compressor. 5. REMOVE SHAFT PLATE (a) Insert SST against the shaft. Then push the holder ring downward. SST 07112 15010 (b) Pull up the bar of the remover, and remove the shaft plate. SST
