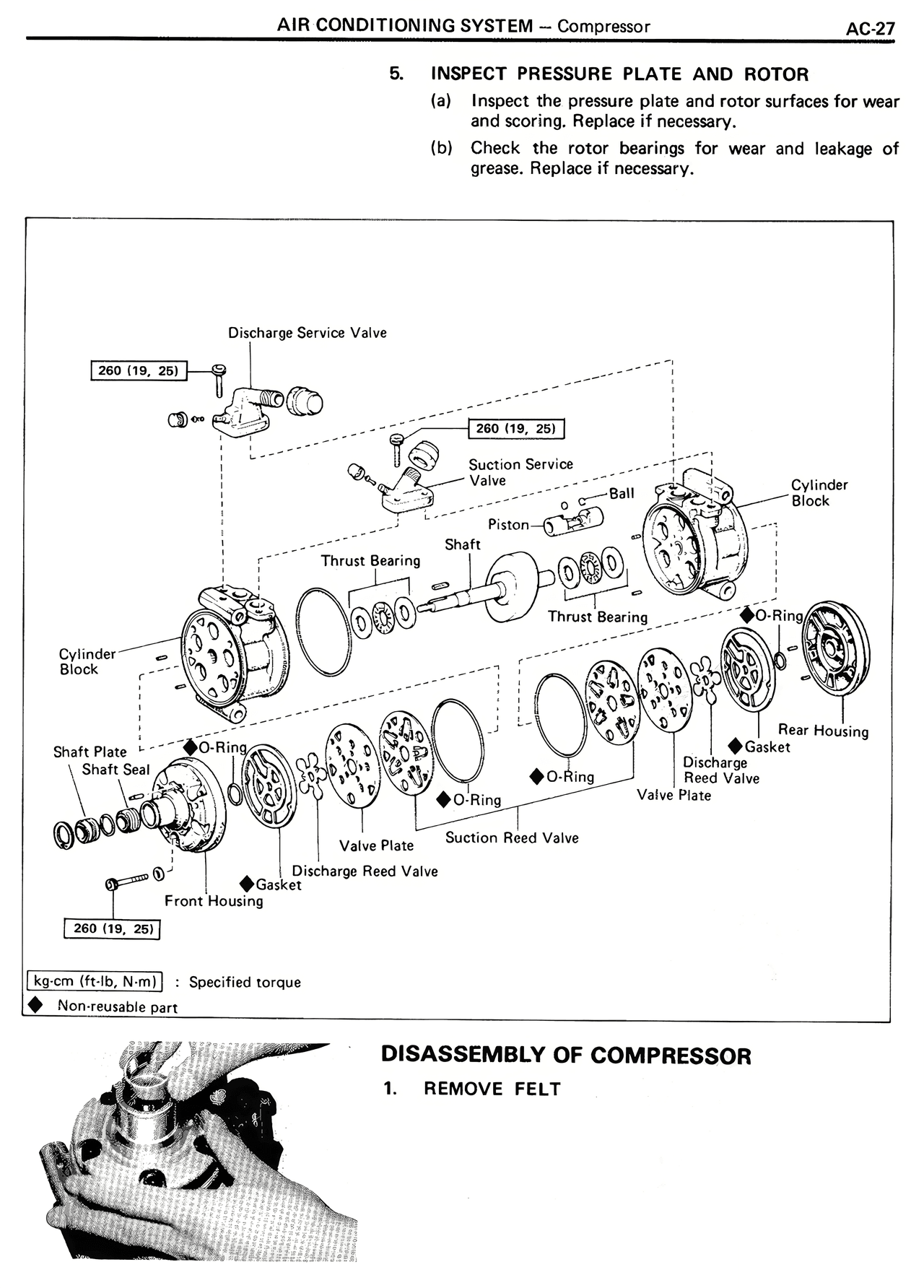

5. INSPECT PRESSURE PLATE AND ROTOR
(a) Inspect the pressure plate and rotor surfaces for wear and scoring. Replace if necessary.
(b) Check the rotor bearings for wear and leakage of grease. Replace if necessary.
Discharge Service Valve
260 (19, 25)
Suction Service Valve
260 (19, 25)
Ball
Cylinder Lock
Piston
Shaft
Thrust Bearing
Thrust Bearing
O-Ring
Cylinder
Rear Housing
Shaft Plate
O-Ring
Gasket
Shaft Seal
Reed Valve
Valve Plate
Discharge Reed Valve
O-Ring
O-Ring
Valve Plate
Gasket
Suction Reed Valve
Discharge Reed Valve
Gasket
Front Housing
260 (19, 25)
kg-cm (ft-lb, N-m)] : Specified torque
◆ Non-reusable part
DISASSEMBLY OF COMPRESSOR
1. REMOVE FELT
