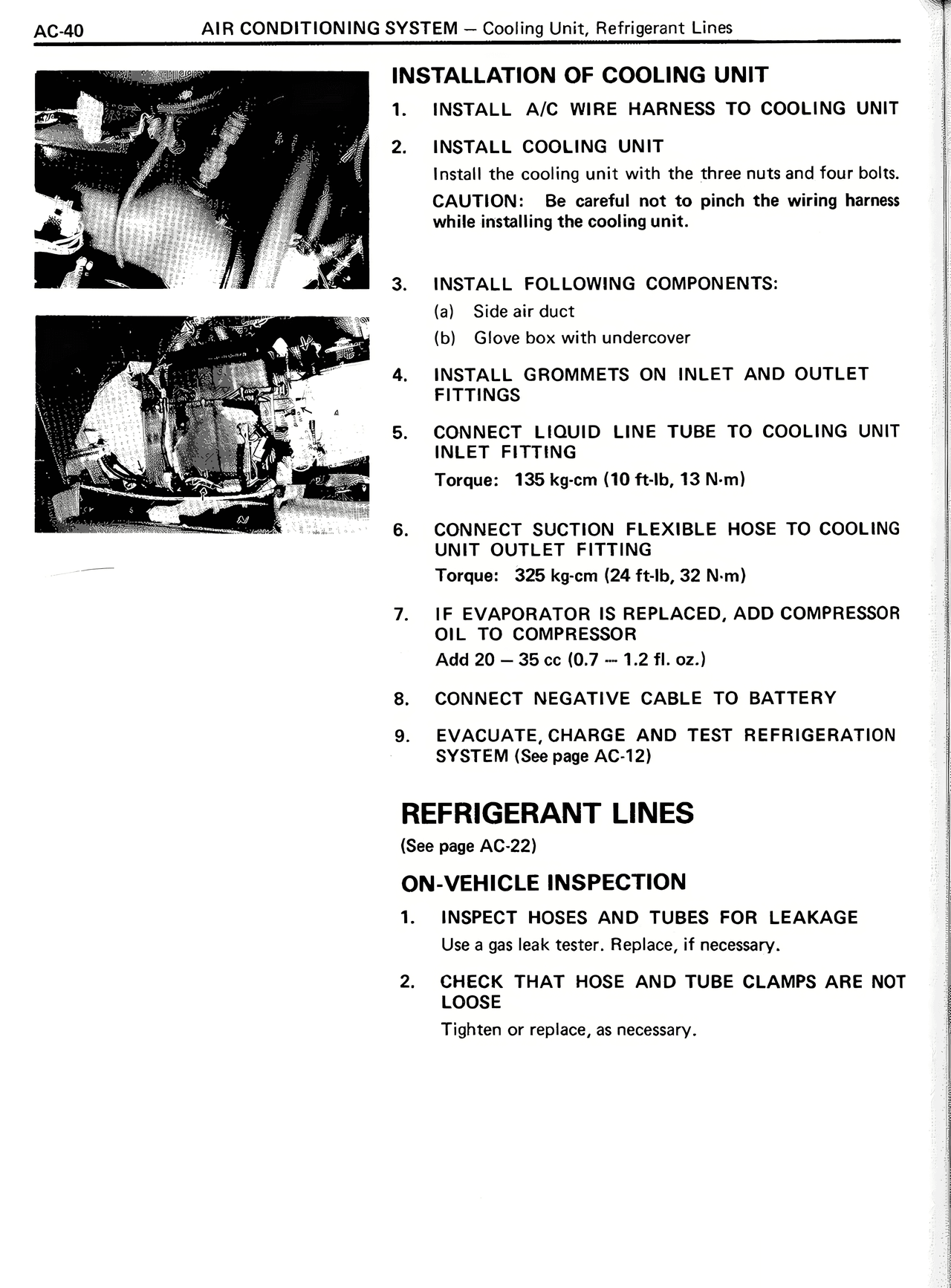

INSTALLATION OF COOLING UNIT
1. INSTALL A/C WIRE HARNESS TO COOLING UNIT
2. INSTALL COOLING UNIT
Install the cooling unit with the three nuts and four bolts.
CAUTION: Be careful not to pinch the wiring harness while installing the cooling unit.
3. INSTALL FOLLOWING COMPONENTS:
(a) Side air duct
(b) Glove box with undercover
4. INSTALL GROMMETS ON INLET AND OUTLET FITTINGS
5. CONNECT LIQUID LINE TUBE TO COOLING UNIT INLET FITTING
Torque: 135 kg-cm (10 ft-lb, 13 N-m)
6. CONNECT SUCTION FLEXIBLE HOSE TO COOLING UNIT OUTLET FITTING
Torque: 325 kg-cm (24 ft-lb, 32 N-m)
7. IF EVAPORATOR IS REPLACED, ADD COMPRESSOR OIL TO COMPRESSOR
Add 20 — 35 cc (0.7 — 1.2 fl. oz.)
8. CONNECT NEGATIVE CABLE TO BATTERY
9. EVACUATE, CHARGE AND TEST REFRIGERATION SYSTEM (See page AC-12)
REFRIGERANT LINES
(See page AC-22)
ON-VEHICLE INSPECTION
1. INSPECT HOSES AND TUBES FOR LEAKAGE
Use a gas leak tester. Replace, if necessary.
2. CHECK THAT HOSE AND TUBE CLAMPS ARE NOT LOOSE
Tighten or replace, as necessary.
