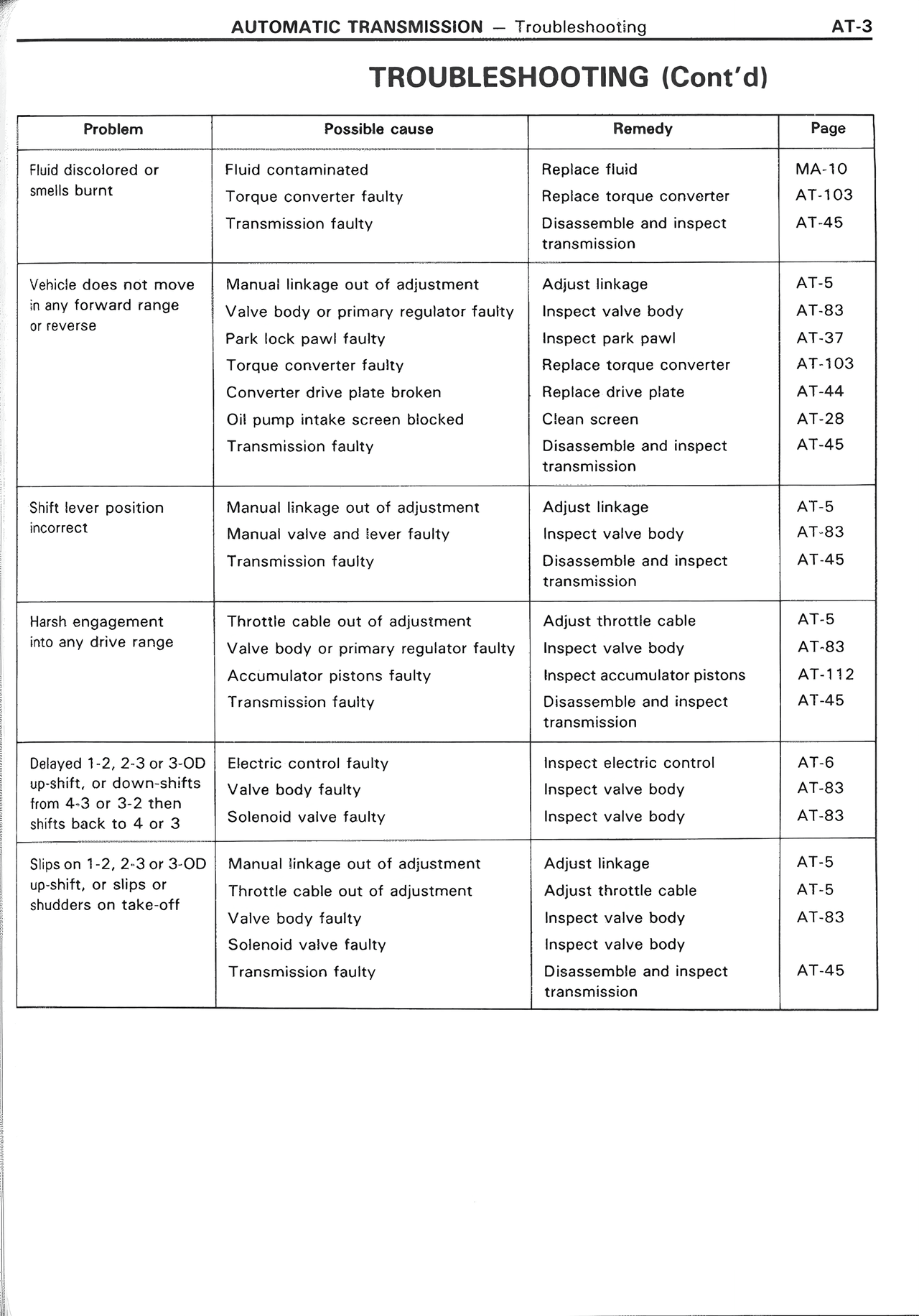

TROUBLESHOOTING (Cont'd)
Problem | Possible cause | Remedy | Page
Fluid discolored or smells burnt | Fluid contaminated | Replace fluid | MA-10
| Torque converter faulty | Replace torque converter | AT-103
| Transmission faulty | Disassemble and inspect transmission | AT-45
Vehicle does not move in any forward range or reverse | Manual linkage out of adjustment | Adjust linkage | AT-5
| Valve body or primary regulator faulty | Inspect valve body | AT-83
| Park lock pawl faulty | Inspect park pawl | AT-37
| Torque converter faulty | Replace torque converter | AT-103
| Converter drive plate broken | Replace drive plate | AT-44
| Oil pump intake screen blocked | Clean screen | AT-28
| Transmission faulty | Disassemble and inspect transmission | AT-45
Shift lever position incorrect | Manual linkage out of adjustment | Adjust linkage | AT-5
| Manual valve and lever faulty | Inspect valve body | AT-83
| Transmission faulty | Disassemble and inspect transmission | AT-45
Harsh engagement into any drive range | Throttle cable out of adjustment | Adjust throttle cable | AT-5
| Valve body or primary regulator faulty | Inspect valve body | AT-83
| Accumulator pistons faulty | Inspect accumulator pistons | AT-112
| Transmission faulty | Disassemble and inspect transmission | AT-45
Delayed 1-2, 2-3 or 3-OD up shift, or down-shifts from 4-3 or 3-2 then shifts back to 4 or 3 | Electric control faulty | Inspect electric control | AT-6
| Valve body faulty | Inspect valve body | AT-83
| Solenoid valve faulty | Inspect valve body | AT-83
Slips on 1-2, 2-3 or 3-OD up shift, or slips or shudders on take-off | Manual linkage out of adjustment | Adjust linkage | AT-5
| Throttle cable out of adjustment | Adjust throttle cable | AT-5
| Valve body faulty | Inspect valve body | AT-83
| Solenoid valve faulty | Inspect valve body |
| Transmission faulty | Disassemble and inspect transmission | AT-45
