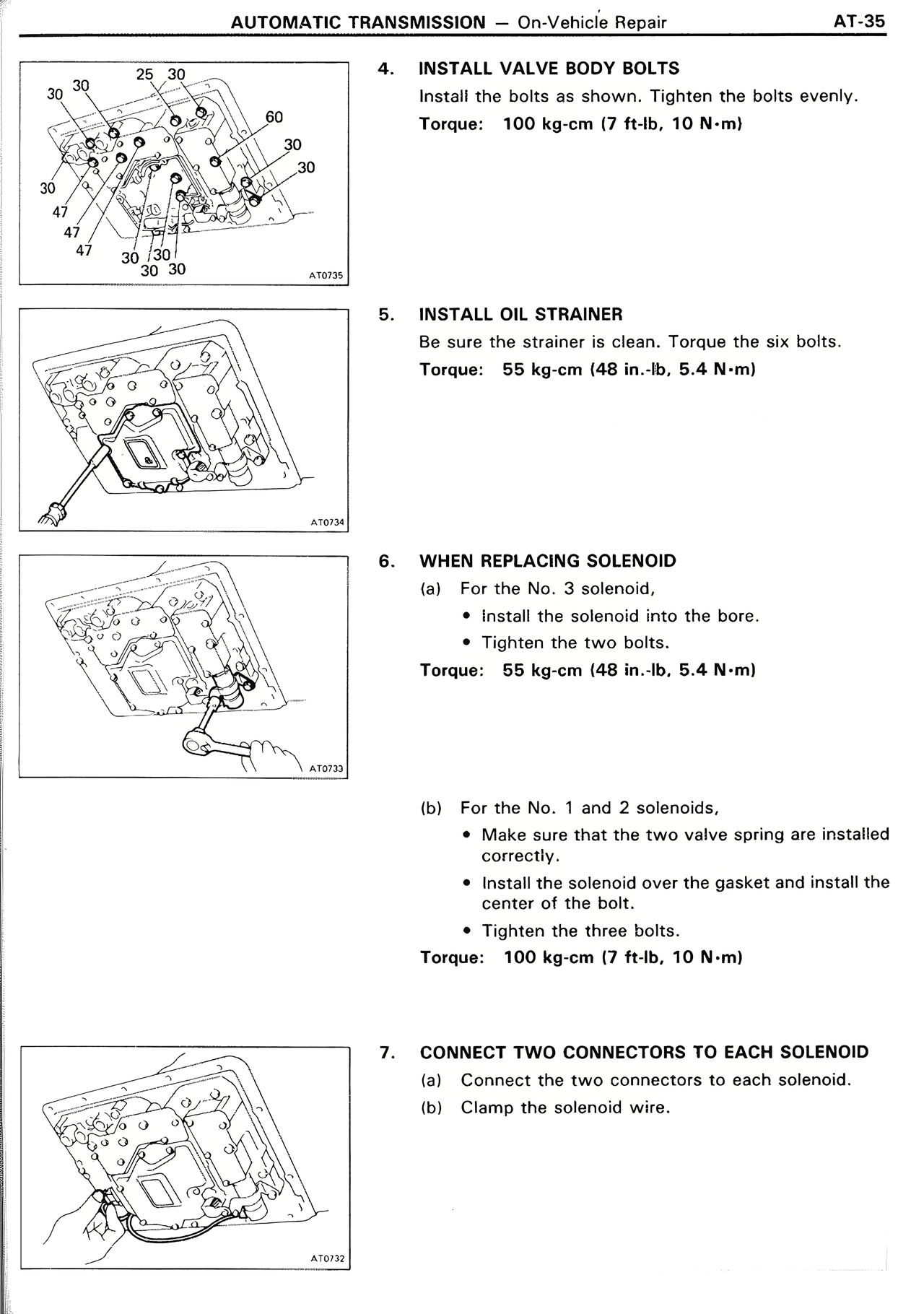

4. INSTALL VALVE BODY BOLTS Install the bolts as shown. Tighten the bolts evenly. Torque: 100 kg-cm (7 ft-lb, 10 N-m) 5. INSTALL OIL STRAINER Be sure the strainer is clean. Torque the six bolts. Torque: 55 kg-cm (48 in.-lb, 5.4 N-m) 6. WHEN REPLACING SOLENOID (a) For the No. 3 solenoid, • Install the solenoid into the bore. • Tighten the two bolts. Torque: 55 kg-cm (48 in.-lb, 5.4 N-m) (b) For the No. 1 and 2 solenoids, • Make sure that the two valve spring are installed correctly. • Install the solenoid over the gasket and install the center of the bolt. • Tighten the three bolts. Torque: 100 kg-cm (7 ft-lb, 10 N-m) 7. CONNECT TWO CONNECTORS TO EACH SOLENOID (a) Connect the two connectors to each solenoid. (b) Clamp the solenoid wire.
