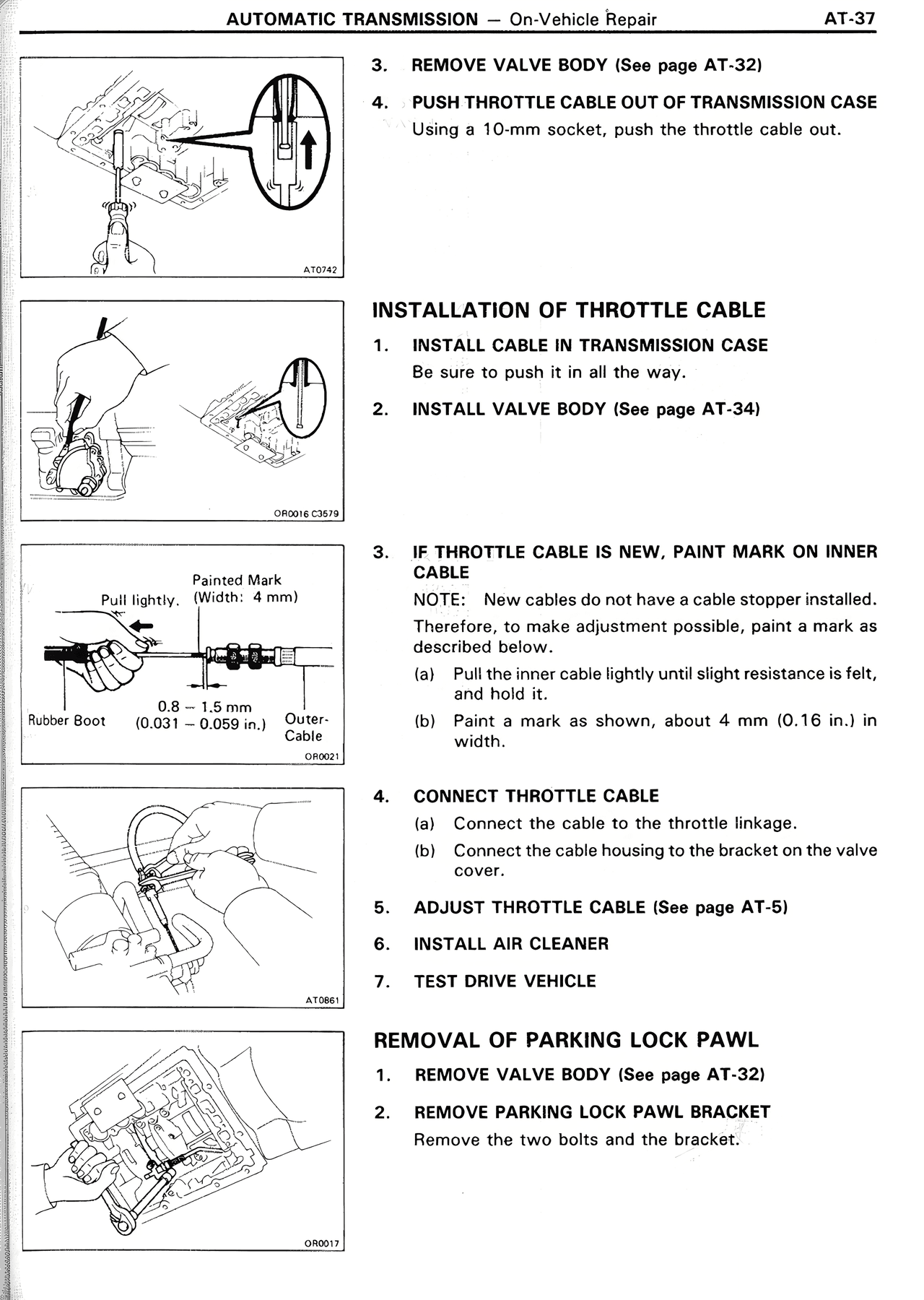

3. REMOVE VALVE BODY (See page AT-32) 4. PUSH THROTTLE CABLE OUT OF TRANSMISSION CASE Using a 10-mm socket, push the throttle cable out. INSTALLATION OF THROTTLE CABLE 1. INSTALL CABLE IN TRANSMISSION CASE Be sure to push it in all the way. 2. INSTALL VALVE BODY (See page AT-34) 3. IF THROTTLE CABLE IS NEW, PAINT MARK ON INNER CABLE NOTE: New cables do not have a cable stopper installed. Therefore, to make adjustment possible, paint a mark as described below. (a) Pull the inner cable lightly until slight resistance is felt, and hold it. (b) Paint a mark as shown, about 4 mm (0.16 in.) in width. Painted Mark (Width 4 mm) Pull lightly Rubber Boot 0.8 - 1.5 mm (0.031 - 0.059 in.) Outer-Cable 4. CONNECT THROTTLE CABLE (a) Connect the cable to the throttle linkage. (b) Connect the cable housing to the bracket on the valve cover. 5. ADJUST THROTTLE CABLE (See page AT-5) 6. INSTALL AIR CLEANER 7. TEST DRIVE VEHICLE REMOVAL OF PARKING LOCK PAWL 1. REMOVE VALVE BODY (See page AT-32) 2. REMOVE PARKING LOCK PAWL BRACKET Remove the two bolts and the bracket.
