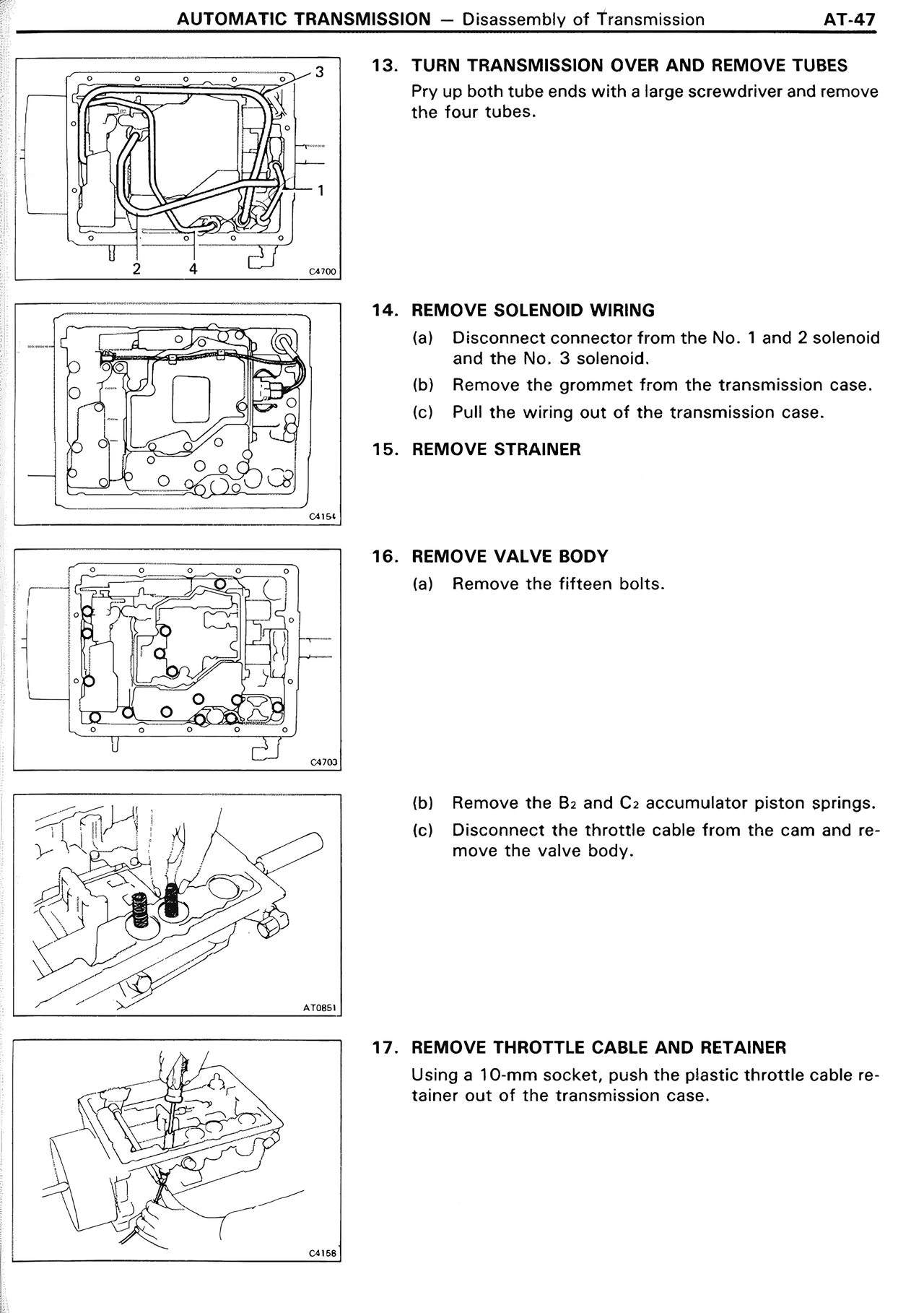

13. TURN TRANSMISSION OVER AND REMOVE TUBES
Pry up both tube ends with a large screwdriver and remove
the four tubes.
14. REMOVE SOLENOID WIRING
(a) Disconnect connector from the No. 1 and 2 solenoid
and the No. 3 solenoid.
(b) Remove the grommet from the transmission case.
(c) Pull the wiring out of the transmission case.
15. REMOVE STRAINER
16. REMOVE VALVE BODY
(a) Remove the fifteen bolts.
(b) Remove the B₂ and C₂ accumulator piston springs.
(c) Disconnect the throttle cable from the cam and re-
move the valve body.
17. REMOVE THROTTLE CABLE AND RETAINER
Using a 10-mm socket, push the plastic throttle cable re-
tainer out of the transmission case.
