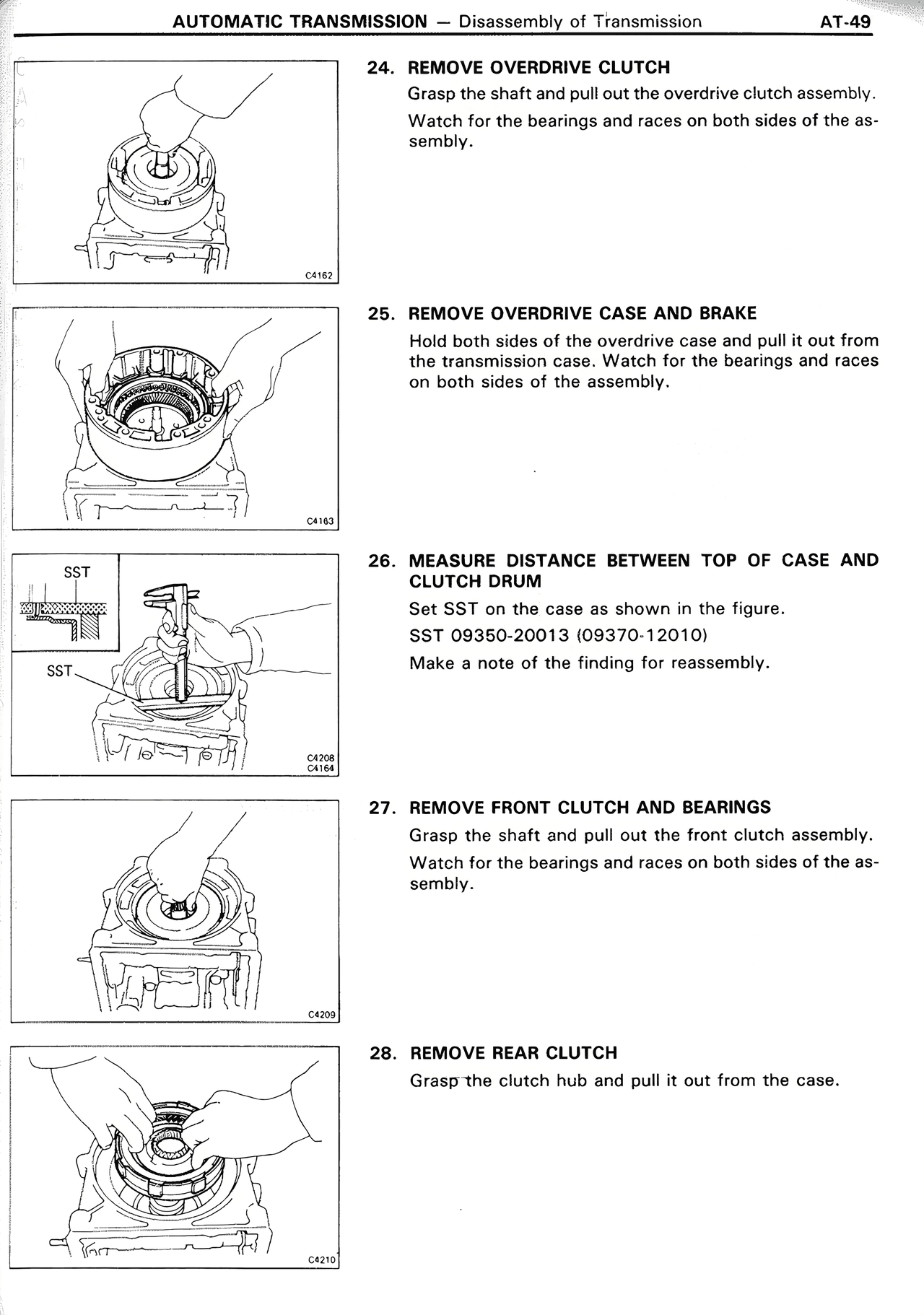

AUTOMATIC TRANSMISSION — Disassembly of Transmission — MK2 Supra Automatic Transmission, page 49
100%
24. REMOVE OVERDRIVE CLUTCH Grasp the shaft and pull out the overdrive clutch assembly. Watch for the bearings and races on both sides of the assembly. 25. REMOVE OVERDRIVE CASE AND BRAKE Hold both sides of the overdrive case and pull it out from the transmission case. Watch for the bearings and races on both sides of the assembly. 26. MEASURE DISTANCE BETWEEN TOP OF CASE AND CLUTCH DRUM Set SST on the case as shown in the figure. SST 09350-20013 (09370 12010) Make a note of the finding for reassembly. 27. REMOVE FRONT CLUTCH AND BEARINGS Grasp the shaft and pull out the front clutch assembly. Watch for the bearings and races on both sides of the assembly. 28. REMOVE REAR CLUTCH Grasp the clutch hub and pull it out from the case.
