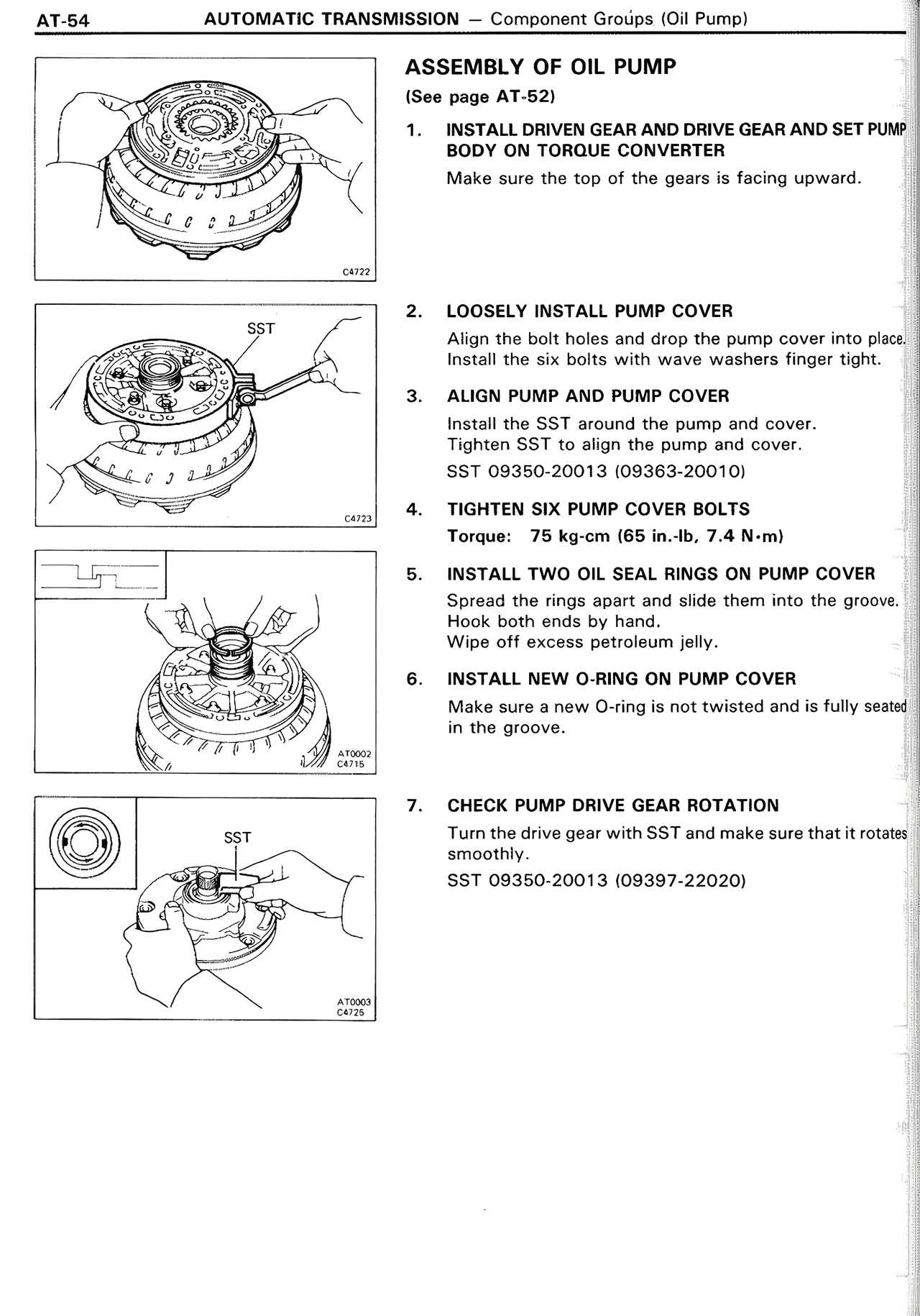

ASSEMBLY OF OIL PUMP (See page AT-52) 1. INSTALL DRIVEN GEAR AND DRIVE GEAR AND SET PUMP BODY ON TORQUE CONVERTER Make sure the top of the gears is facing upward. 2. LOOSELY INSTALL PUMP COVER Align the bolt holes and drop the pump cover into place. Install the six bolts with wave washers finger tight. 3. ALIGN PUMP AND DRIVE GEAR Install the SST around the pump and cover. Tighten SST to align the pump and cover. SST 09350-20013 (09363-20010) 4. TIGHTEN SIX PUMP COVER BOLTS Torque: 75 kg-cm (65 in.-lb. 7.4 N-m) 5. INSTALL TWO OIL SEAL RINGS ON PUMP COVER Spread the rings apart and slide them into the groove. Hook both ends by hand. Wipe off excess petroleum jelly. 6. INSTALL NEW O-RING ON PUMP COVER Make sure a new O-ring is not twisted and is fully seated in the groove. 7. CHECK PUMP DRIVE GEAR ROTATION Turn the drive gear with SST and make sure that it rotates smoothly. SST 09350-20013 (09397-22020)
