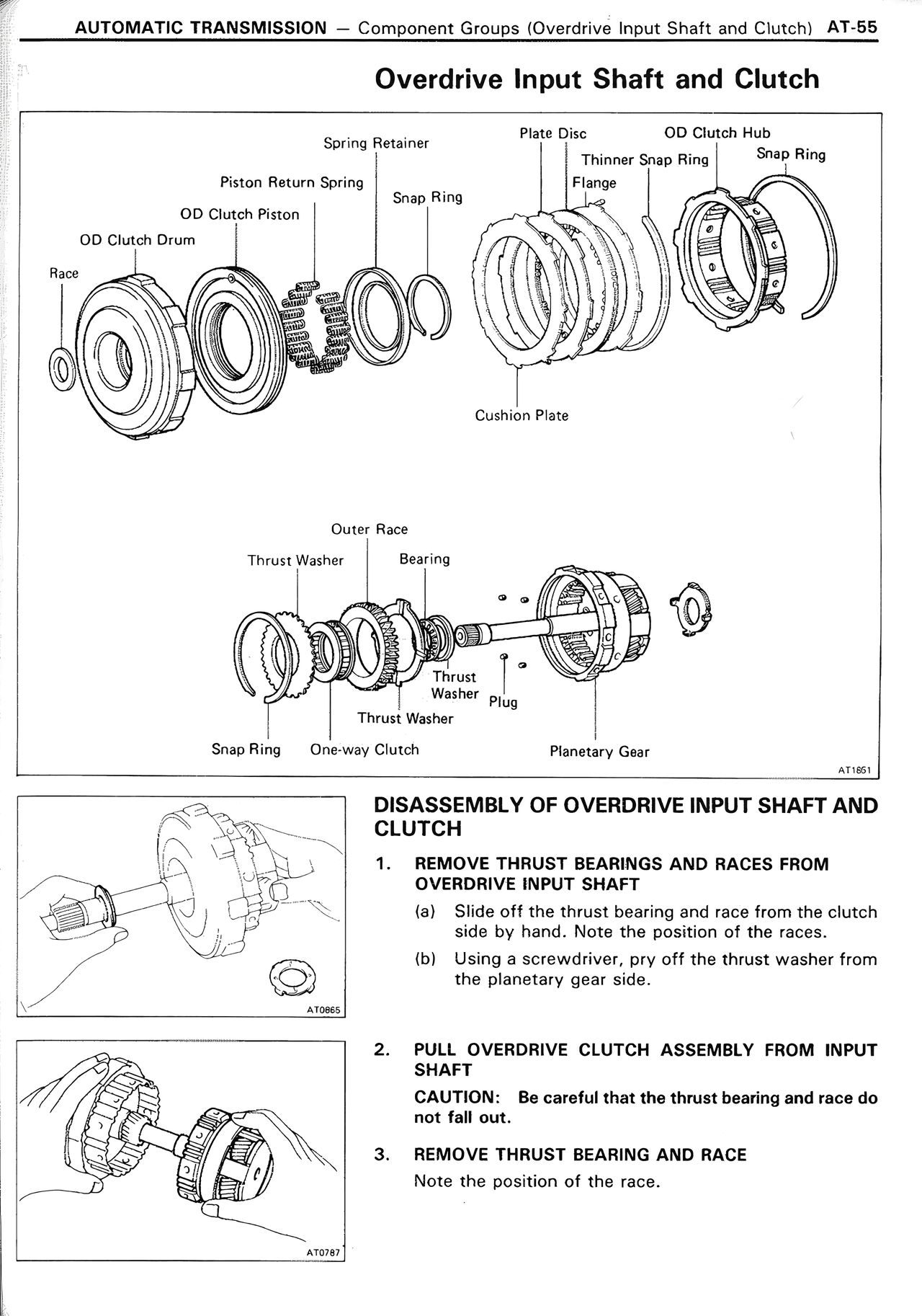

AUTOMATIC TRANSMISSION — Component Groups (Overdrive Input Shaft and Clutch) AT-55

Overdrive Input Shaft and Clutch

Spring Retainer
Piston Return Spring
OD Clutch Piston
OD Clutch Drum
Race

Snap Ring

Plate Disc
Thinner Snap Ring
Flange

OD Clutch Hub
Snap Ring

Cushion Plate

Outer Race
Thrust Washer
Bearing

Snap Ring
One-way Clutch

Thrust Washer
Thrust Washer
Plug

Planetary Gear

AT1801

DISASSEMBLY OF OVERDRIVE INPUT SHAFT AND CLUTCH

1. REMOVE THRUST BEARINGS AND RACES FROM OVERDRIVE INPUT SHAFT

(a) Slide off the thrust bearing and race from the clutch side by hand. Note the position of the races.

(b) Using a screwdriver, pry off the thrust washer from the planetary gear side.

AT0851

2. PULL OVERDRIVE CLUTCH ASSEMBLY FROM INPUT SHAFT

CAUTION: Be careful that the thrust bearing and race do not fall out.

3. REMOVE THRUST BEARING AND RACE

Note the position of the race.

AT0479
