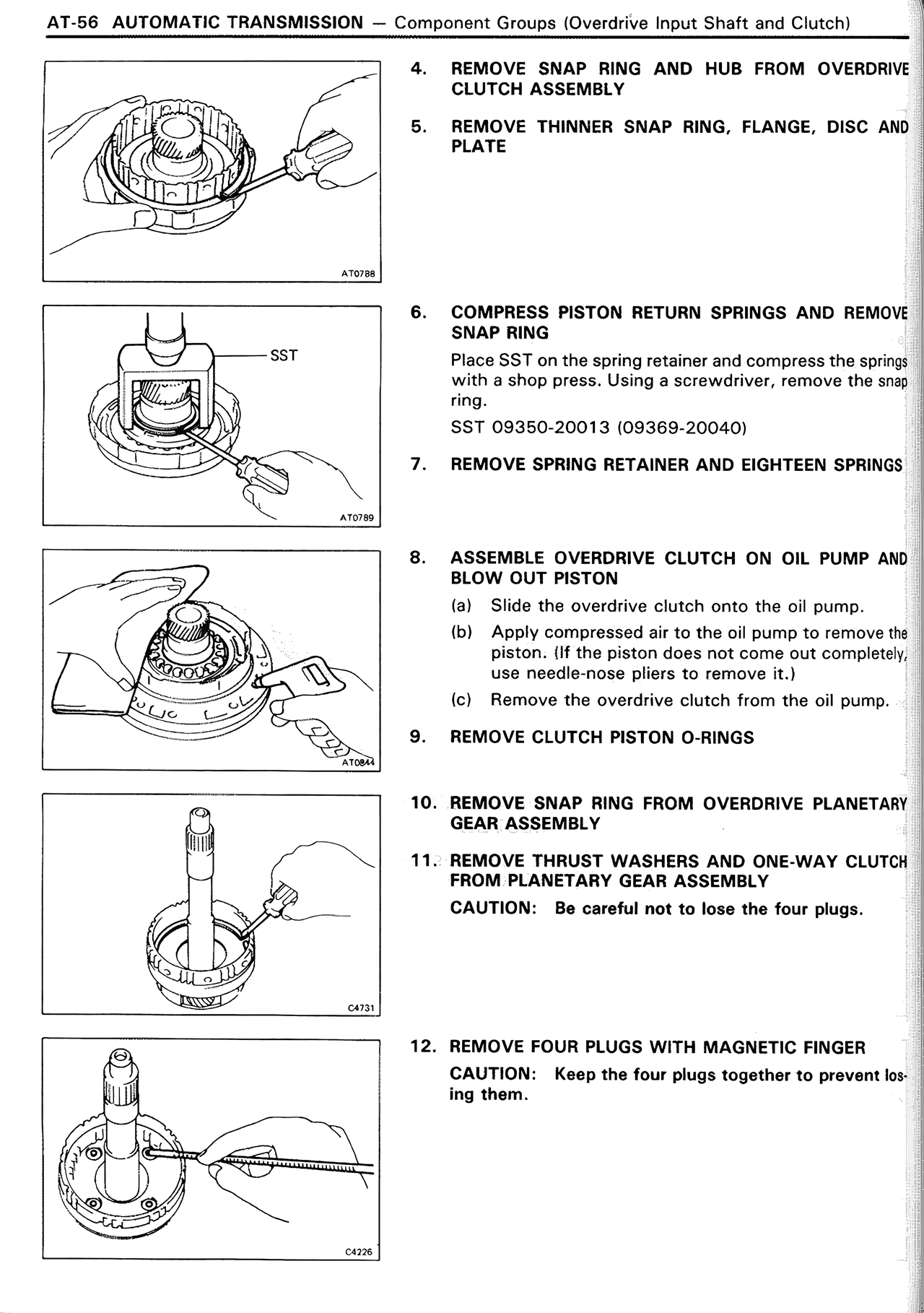

AT-56 AUTOMATIC TRANSMISSION — Component Groups (Overdrive Input Shaft and Clutch) — MK2 Supra Automatic Transmission, page 56
100%
4. REMOVE SNAP RING AND HUB FROM OVERDRIVE CLUTCH ASSEMBLY 5. REMOVE THINNER SNAP RING, FLANGE, DISC AND PLATE 6. COMPRESS PISTON RETURN SPRINGS AND REMOVE SNAP RING Place SST on the spring retainer and compress the springs with a shop press. Using a screwdriver, remove the snap ring. SST 09350-20013 (09369-20040) 7. REMOVE SPRING RETAINER AND EIGHTEEN SPRINGS 8. ASSEMBLE OVERDRIVE CLUTCH ON OIL PUMP AND BLOW OUT PISTON (a) Slide the overdrive clutch onto the oil pump. (b) Apply compressed air to oil pump to remove the piston. (If the piston does not come out completely, use needle-nose pliers to remove it.) (c) Remove the overdrive clutch from the oil pump. 9. REMOVE CLUTCH PISTON O-RINGS 10. REMOVE SNAP RING FROM OVERDRIVE PLANETARY GEAR ASSEMBLY 11. REMOVE THRUST WASHERS AND ONE-WAY CLUTCH FROM PLANETARY GEAR ASSEMBLY CAUTION: Be careful not to lose the four plugs. 12. REMOVE FOUR PLUGS WITH MAGNETIC FINGER CAUTION: Keep the four plugs together to prevent losing them.
