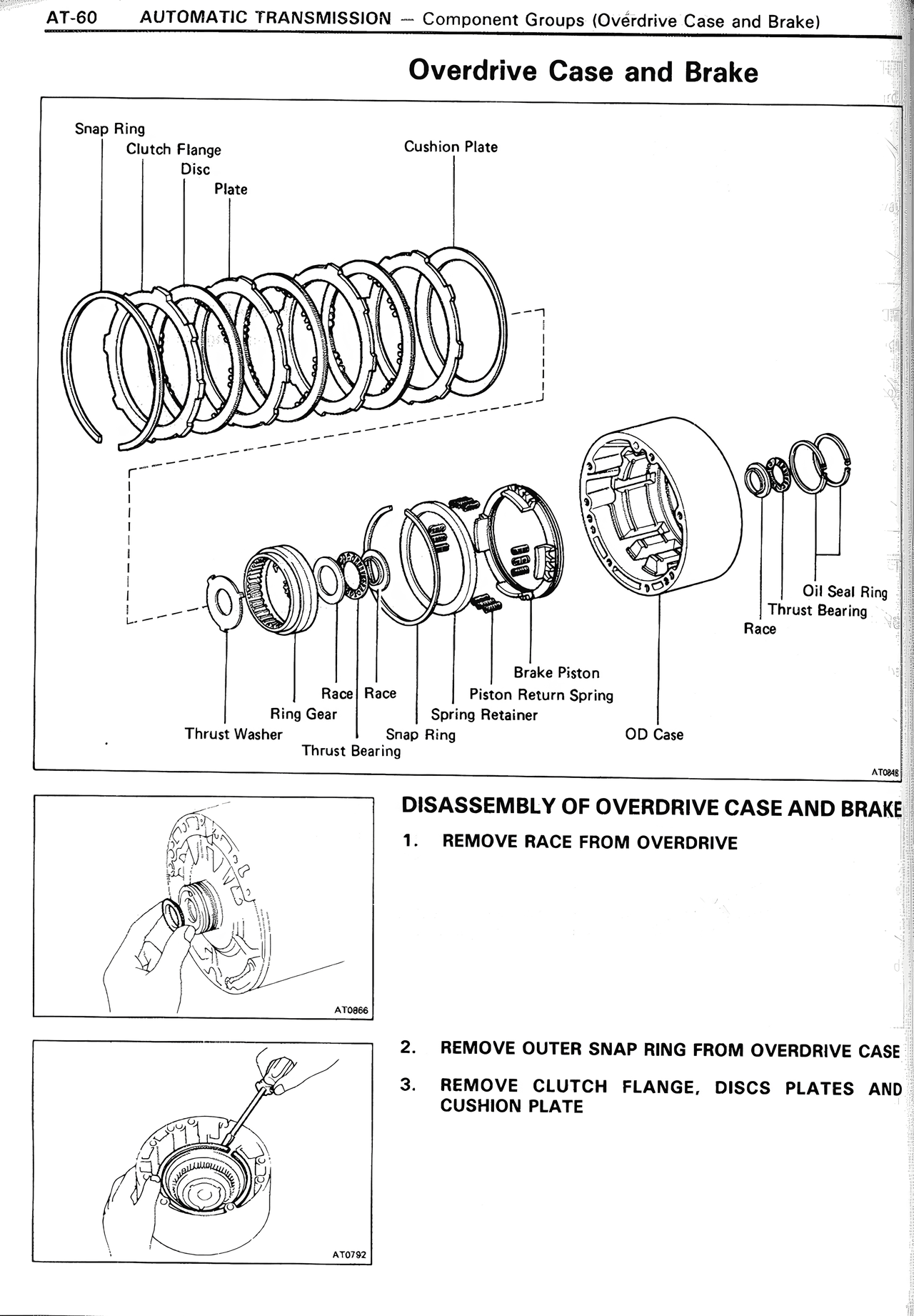

AT-60     AUTOMATIC TRANSMISSION — Component Groups (Overdrive Case and Brake)

Overdrive Case and Brake

Snap Ring
Clutch Flange
Disc
Plate
Cushion Plate

Thrust Washer
Ring Gear
Race
Race
Thrust Bearing
Snap Ring
Spring Retainer
Piston Return Spring
Brake Piston
Race
Thrust Bearing
Oil Seal Ring
Race
OD Case

AT086

DISASSEMBLY OF OVERDRIVE CASE AND BRAKE

1. REMOVE RACE FROM OVERDRIVE

AT086S

2. REMOVE OUTER SNAP RING FROM OVERDRIVE CASE

3. REMOVE CLUTCH FLANGE, DISCS PLATES AND CUSHION PLATE
