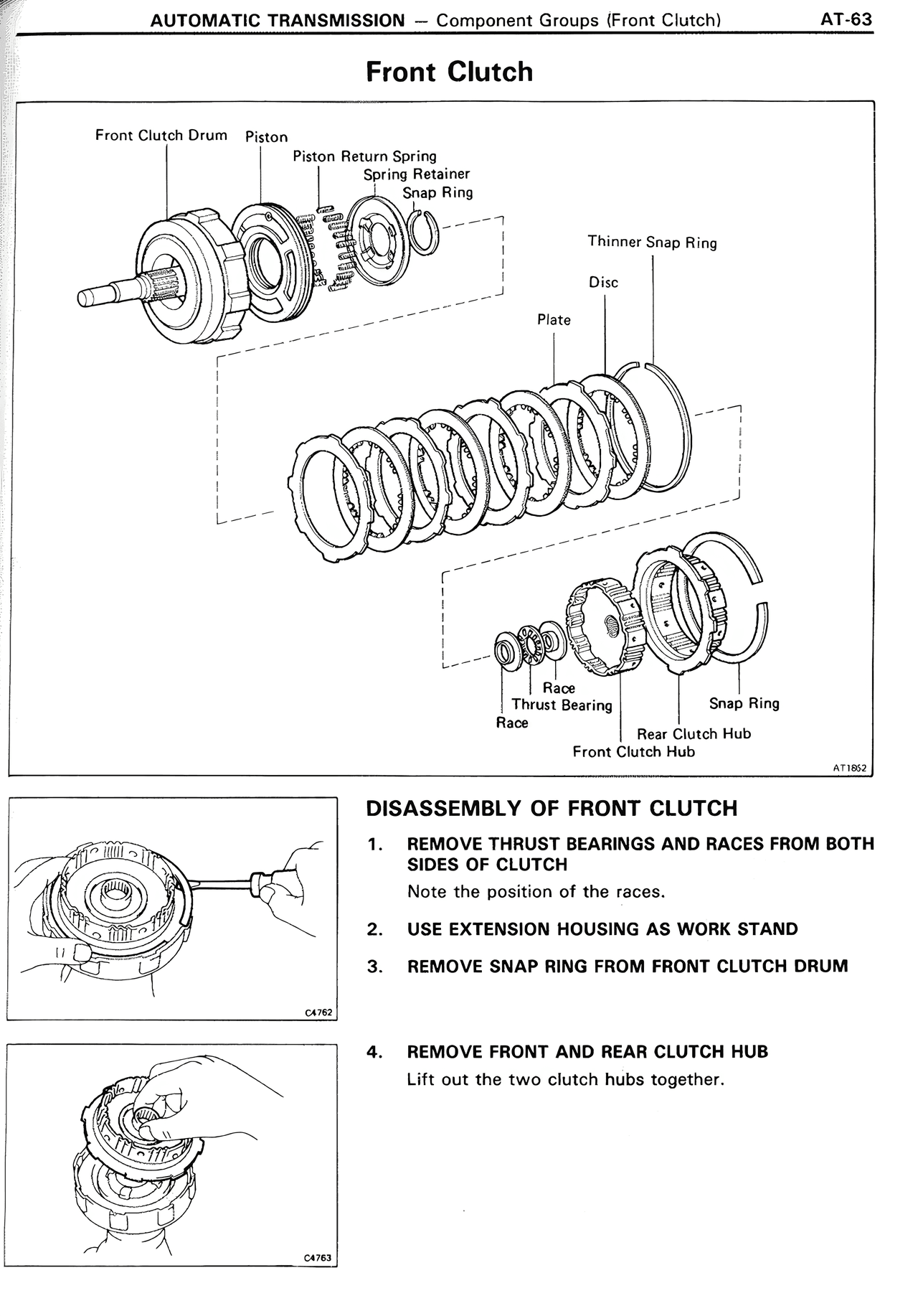

AT/Automatic Transmission — Front Clutch, page 63

AUTOMATIC TRANSMISSION — Component Groups (Front Clutch)     AT-63

Front Clutch

Front Clutch Drum
Piston
Piston Return Spring
Spring Retainer
Snap Ring
Thinner Snap Ring
Disc
Plate
Race
Thrust Bearing
Race
Front Clutch Hub
Rear Clutch Hub
Snap Ring

DISASSEMBLY OF FRONT CLUTCH

1. REMOVE THRUST BEARINGS AND RACES FROM BOTH SIDES OF CLUTCH
Note the position of the races.

2. USE EXTENSION HOUSING AS WORK STAND

3. REMOVE SNAP RING FROM FRONT CLUTCH DRUM

4. REMOVE FRONT AND REAR CLUTCH HUB
Lift out the two clutch hubs together.
