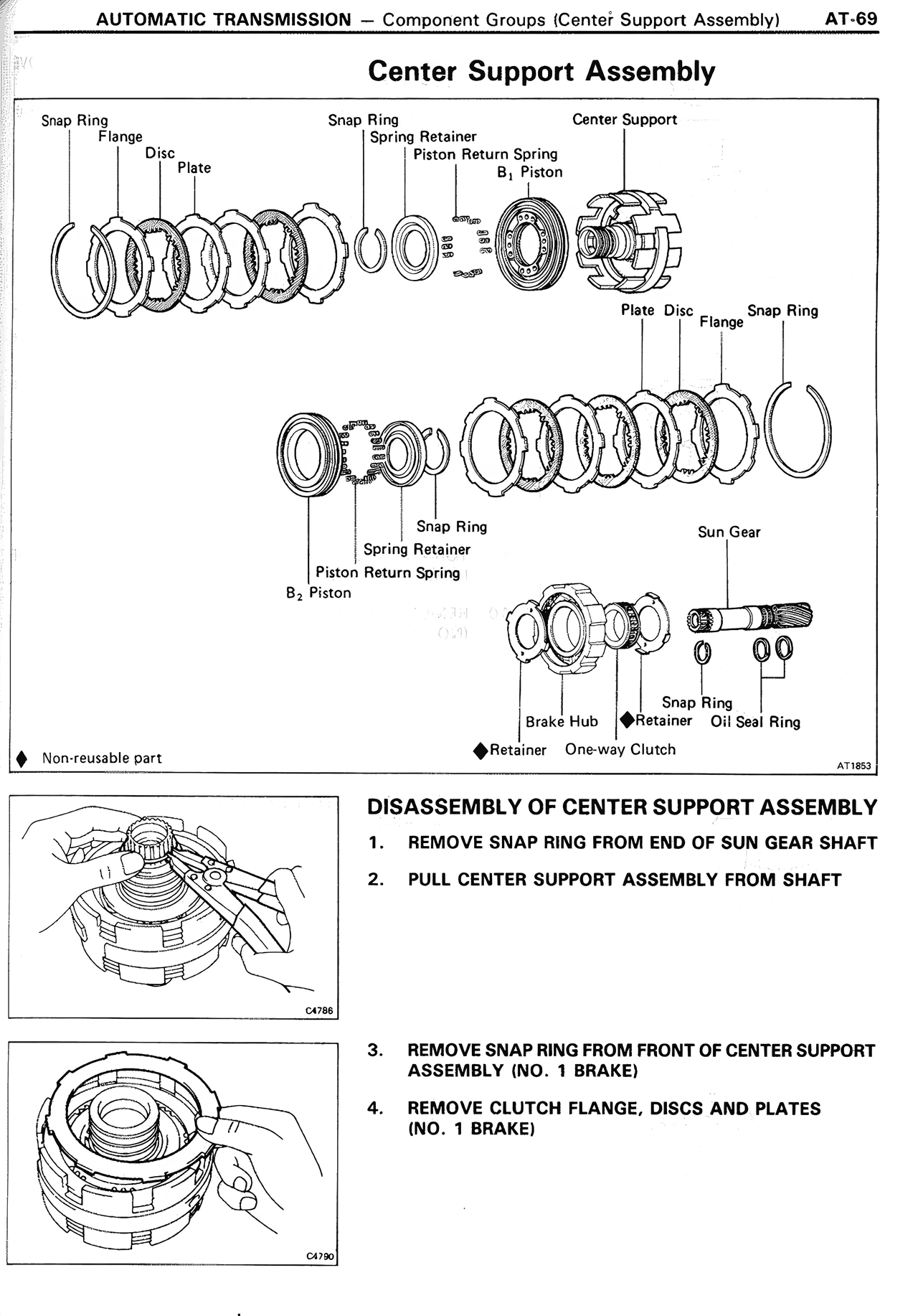

AUTOMATIC TRANSMISSION — Component Groups (Center Support Assembly)     AT-69

Center Support Assembly

Snap Ring
    Flange
        Disc
            Plate

Snap Ring
    Spring Retainer
        Piston Return Spring
            B1 Piston

Center Support

Plate  Disc
    Flange  Snap Ring

Snap Ring
    Spring Retainer
        Piston Return Spring
            B2 Piston

Sun Gear

Brake Hub
    Retainer
        Snap Ring
            Oil Seal Ring

Retainer  One-way Clutch

♦ Non-reusable part
♦Retainer

AT1883

DISASSEMBLY OF CENTER SUPPORT ASSEMBLY

1.  REMOVE SNAP RING FROM END OF SUN GEAR SHAFT

2.  PULL CENTER SUPPORT ASSEMBLY FROM SHAFT

C4786

3.  REMOVE SNAP RING FROM FRONT OF CENTER SUPPORT
    ASSEMBLY (NO. 1 BRAKE)

4.  REMOVE CLUTCH FLANGE, DISCS AND PLATES
    (NO. 1 BRAKE)

C4790
