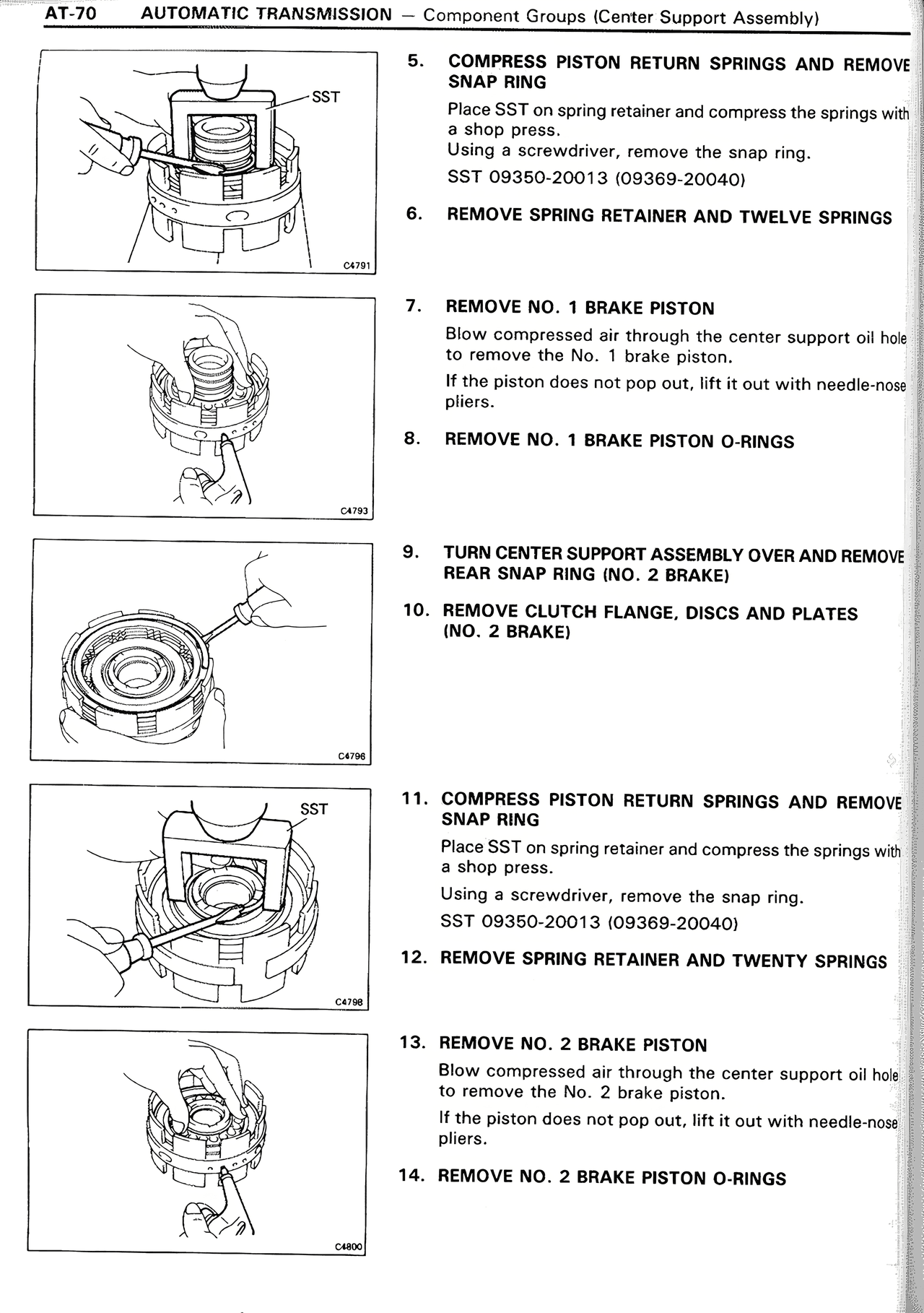

AT-70 AUTOMATIC TRANSMISSION — Component Groups (Center Support Assembly)
5. COMPRESS PISTON RETURN SPRINGS AND REMOVE SNAP RING
Place SST on spring retainer and compress the springs with a shop press.
Using a screwdriver, remove the snap ring.
SST 09350-20013 (09369-20040)
6. REMOVE SPRING RETAINER AND TWELVE SPRINGS
7. REMOVE NO. 1 BRAKE PISTON
Blow compressed air through the center support oil hole to remove the No. 1 brake piston.
If the piston does not pop out, lift it out with needle-nose pliers.
8. REMOVE NO. 1 BRAKE PISTON O-RINGS
9. TURN CENTER SUPPORT ASSEMBLY OVER AND REMOVE REAR SNAP RING (NO. 2 BRAKE)
10. REMOVE CLUTCH FLANGE, DISCS AND PLATES (NO. 2 BRAKE)
11. COMPRESS PISTON RETURN SPRINGS AND REMOVE SNAP RING
Place SST on spring retainer and compress the springs with a shop press.
Using a screwdriver, remove the snap ring.
SST 09350-20013 (09369-20040)
12. REMOVE SPRING RETAINER AND TWENTY SPRINGS
13. REMOVE NO. 2 BRAKE PISTON
Blow compressed air through the center support oil hole to remove the No. 2 brake piston.
If the piston does not pop out, lift it out with needle-nose pliers.
14. REMOVE NO. 2 BRAKE PISTON O-RINGS
