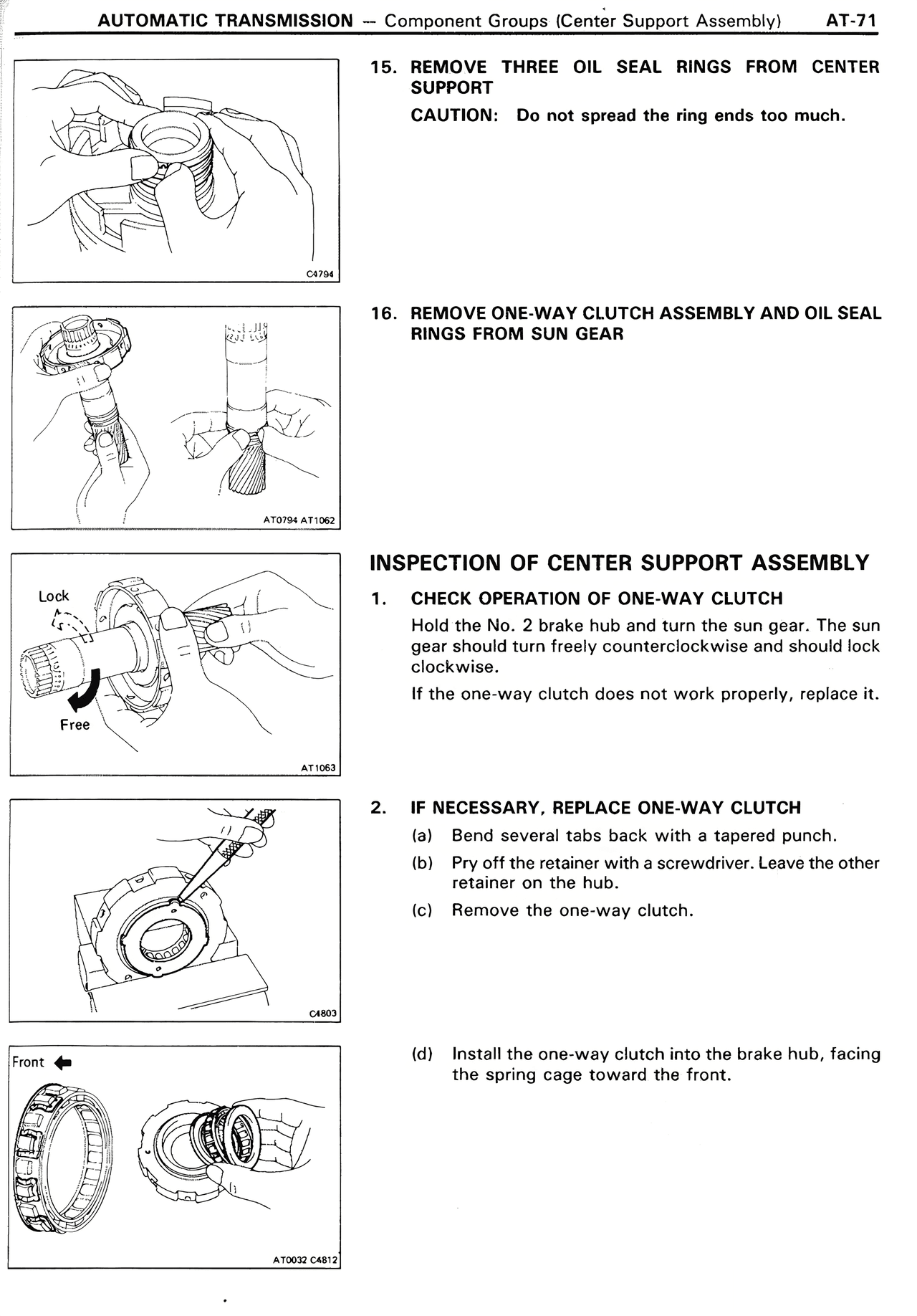

AUTOMATIC TRANSMISSION — Component Groups (Center Support Assembly) — MK2 Supra Automatic Transmission, page 71
100%
15. REMOVE THREE OIL SEAL RINGS FROM CENTER SUPPORT CAUTION: Do not spread the ring ends too much. 16. REMOVE ONE-WAY CLUTCH ASSEMBLY AND OIL SEAL RINGS FROM SUN GEAR INSPECTION OF CENTER SUPPORT ASSEMBLY 1. CHECK OPERATION OF ONE-WAY CLUTCH Hold the No. 2 brake hub and turn the sun gear. The sun gear should turn freely counterclockwise and should lock clockwise. If the one-way clutch does not work properly, replace it. 2. IF NECESSARY, REPLACE ONE-WAY CLUTCH (a) Bend several tabs back with a tapered punch. (b) Pry off the retainer with a screwdriver. Leave the other retainer on the hub. (c) Remove the one-way clutch. (d) Install the one-way clutch into the brake hub, facing the spring cage toward the front.
