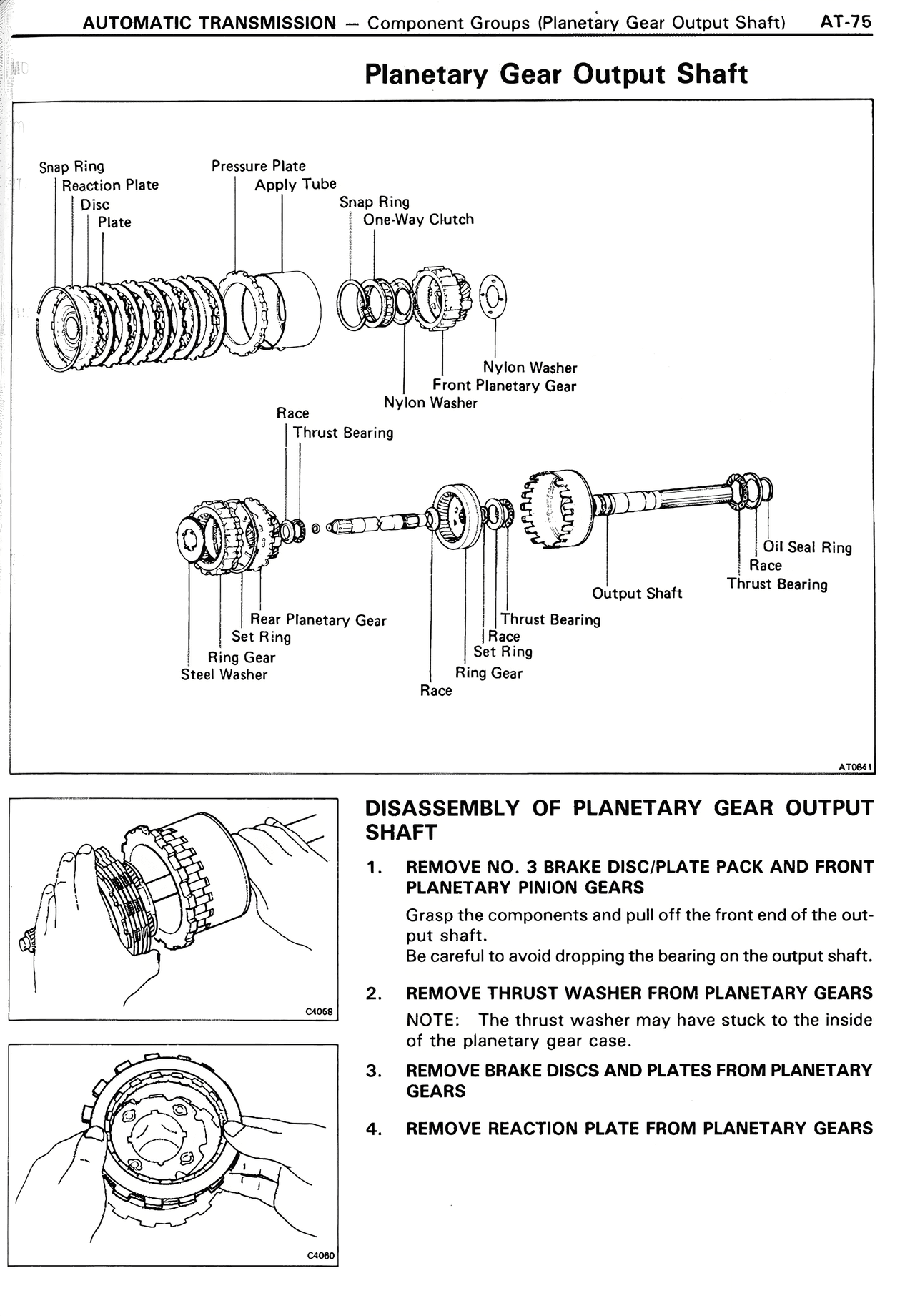

Planetary Gear Output Shaft
Snap Ring
Reaction Plate
Disc
Plate
Pressure Plate
Apply Tube
Snap Ring
One-Way Clutch
Nylon Washer
Front Planetary Gear
Nylon Washer
Race
Thrust Bearing
Rear Planetary Gear
Set Ring
Ring Gear
Steel Washer
Thrust Bearing
Set Ring
Ring Gear
Race
Oil Seal Ring
Race
Thrust Bearing
Output Shaft
DISASSEMBLY OF PLANETARY GEAR OUTPUT SHAFT
1. REMOVE NO. 3 BRAKE DISC/PLATE PACK AND FRONT PLANETARY PINION GEARS
Grasp the components and pull off the front end of the output shaft.
Be careful to avoid dropping the bearing on the output shaft.
2. REMOVE THRUST WASHER FROM PLANETARY GEARS
NOTE: The thrust washer may have stuck to the inside of the planetary gear case.
3. REMOVE BRAKE DISCS AND PLATES FROM PLANETARY GEARS
4. REMOVE REACTION PLATE FROM PLANETARY GEARS
