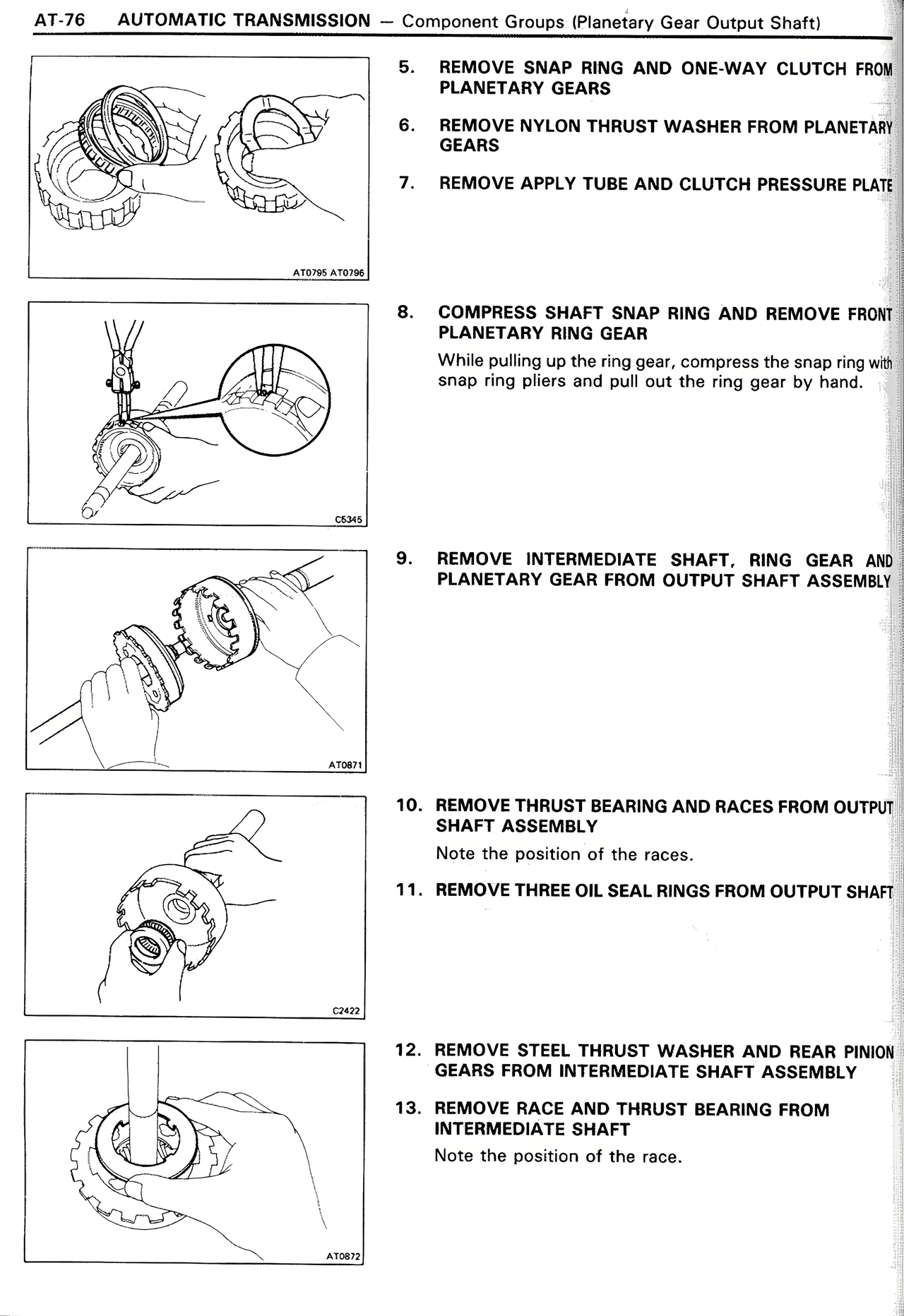

AT-76    AUTOMATIC TRANSMISSION — Component Groups (Planetary Gear Output Shaft)

5. REMOVE SNAP RING AND ONE-WAY CLUTCH FROM PLANETARY GEARS

6. REMOVE NYLON THRUST WASHER FROM PLANETARY GEARS

7. REMOVE APPLY TUBE AND CLUTCH PRESSURE PLATE

8. COMPRESS SHAFT SNAP RING AND REMOVE FRONT PLANETARY RING GEAR

While pulling up the ring gear, compress the snap ring with snap ring pliers and pull out the ring gear by hand.

9. REMOVE INTERMEDIATE SHAFT, RING GEAR AND PLANETARY GEAR FROM OUTPUT SHAFT ASSEMBLY

10. REMOVE THRUST BEARING AND RACES FROM OUTPUT SHAFT ASSEMBLY

Note the position of the races.

11. REMOVE THREE OIL SEAL RINGS FROM OUTPUT SHAFT

12. REMOVE STEEL THRUST WASHER AND REAR PINION GEARS FROM INTERMEDIATE SHAFT ASSEMBLY

13. REMOVE RACE AND THRUST BEARING FROM INTERMEDIATE SHAFT

Note the position of the race.
