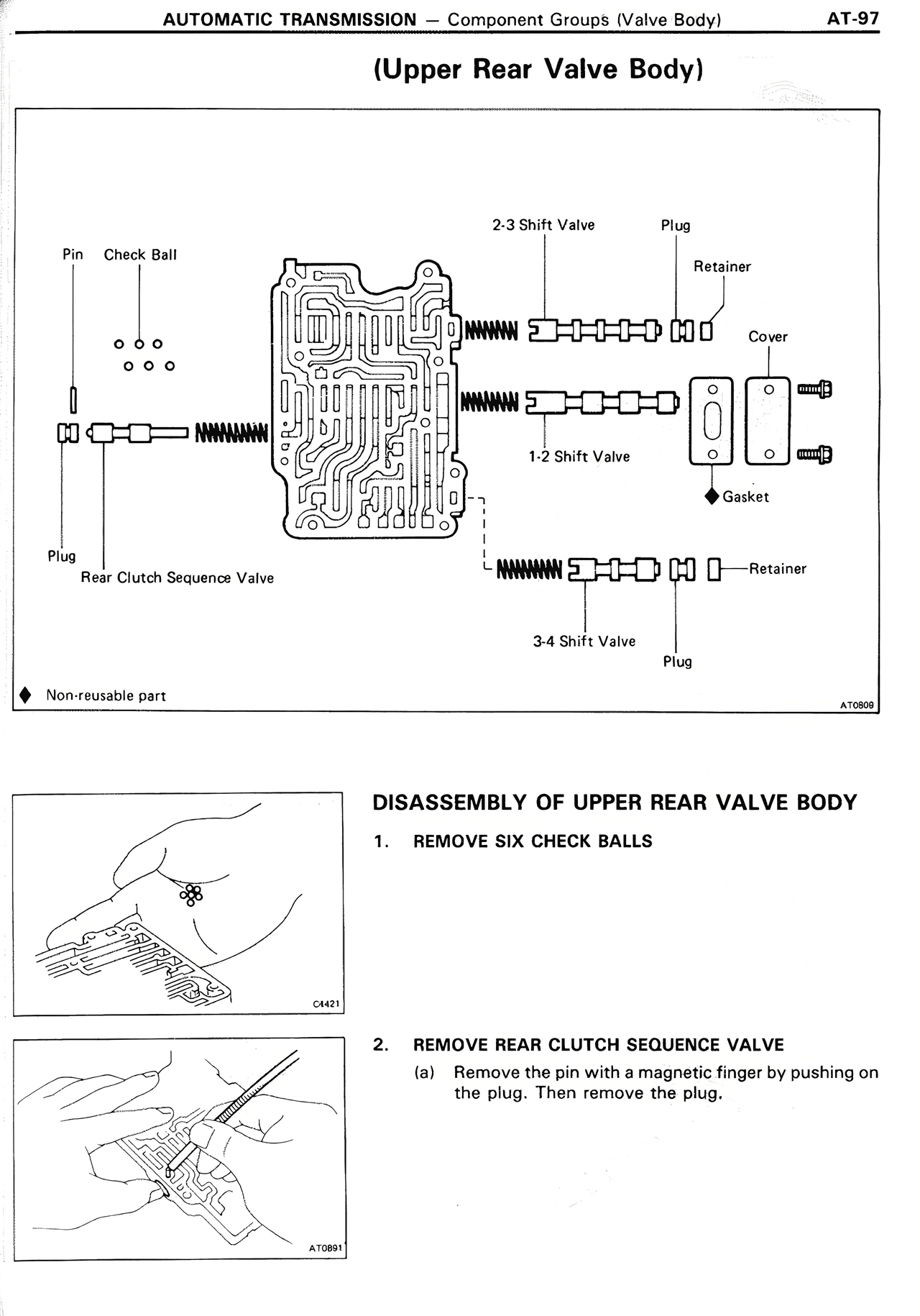

AT/Automatic Transmission — (Upper Rear Valve Body), page 97

AUTOMATIC TRANSMISSION — Component Groups (Valve Body)     AT-97

(Upper Rear Valve Body)

Pin    Check Ball

o o o
o o o

Plug

Rear Clutch Sequence Valve

2-3 Shift Valve    Plug
                    Retainer
                    Cover

1-2 Shift Valve

                    Gasket

3-4 Shift Valve
           Plug    Retainer

◆ Non-reusable part

A70663

DISASSEMBLY OF UPPER REAR VALVE BODY

1.    REMOVE SIX CHECK BALLS

C4421

2.    REMOVE REAR CLUTCH SEQUENCE VALVE
      (a)  Remove the pin with a magnetic finger by pushing on
           the plug. Then remove the plug.

A73661
