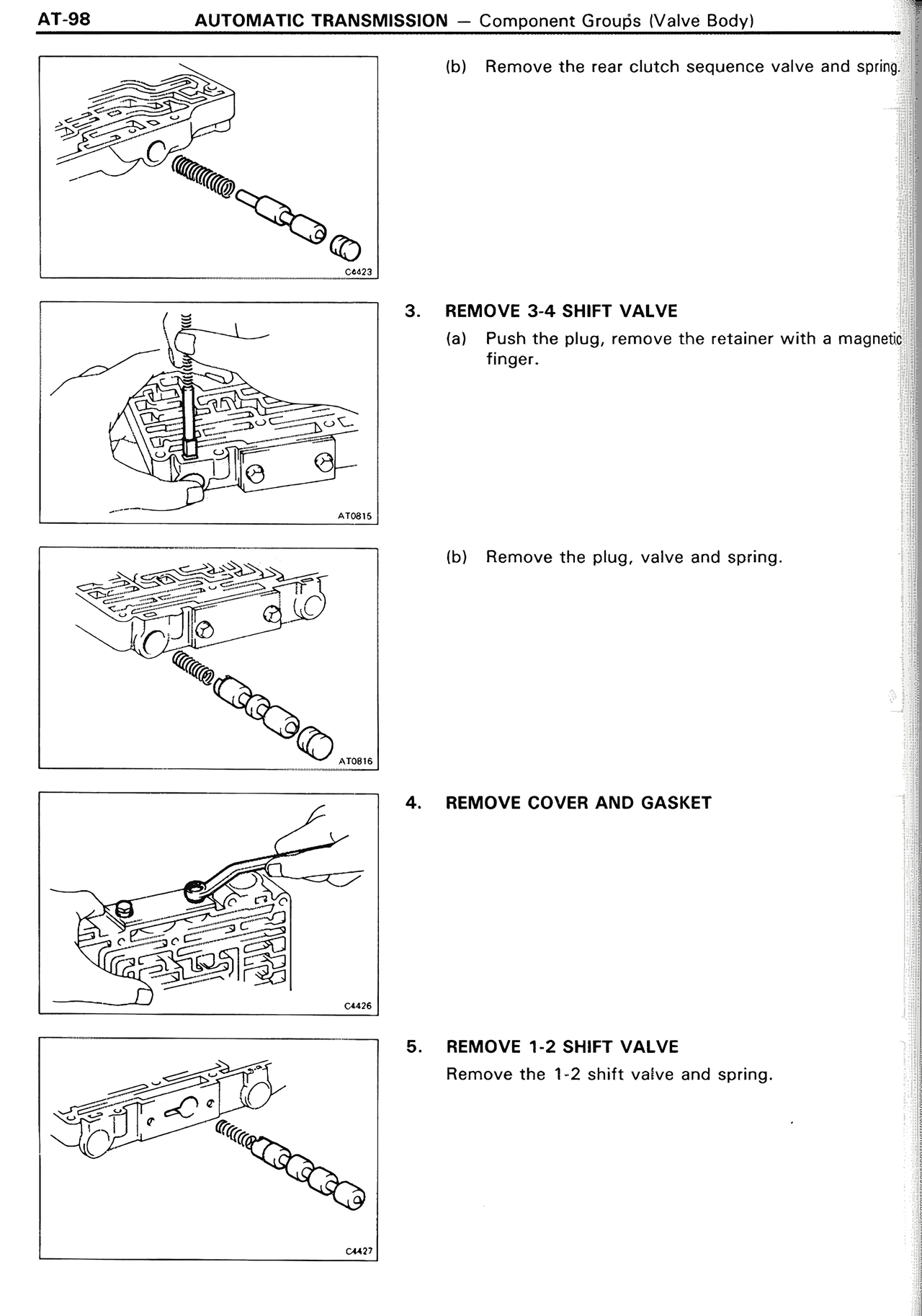

AT-98        AUTOMATIC TRANSMISSION — Component Groups (Valve Body)

(b)  Remove the rear clutch sequence valve and spring.

3.   REMOVE 3-4 SHIFT VALVE
(a)  Push the plug, remove the retainer with a magnetic finger.

(b)  Remove the plug, valve and spring.

4.   REMOVE COVER AND GASKET

5.   REMOVE 1-2 SHIFT VALVE
Remove the 1-2 shift valve and spring.
