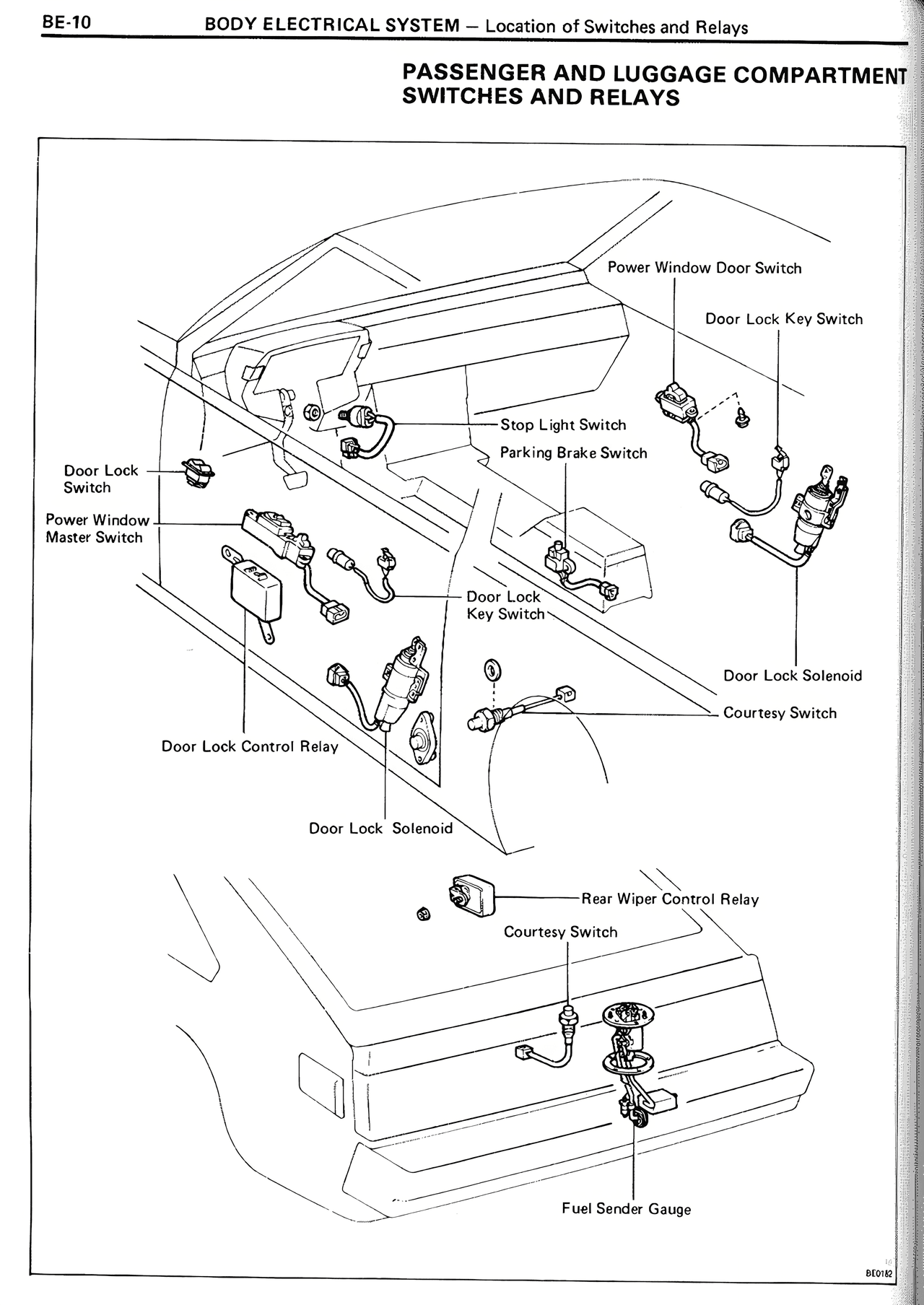

BE/Body Electrical System — Passenger and Luggage Compartment Switches and Relays, page 10

BE-10

BODY ELECTRICAL SYSTEM — Location of Switches and Relays

PASSENGER AND LUGGAGE COMPARTMENT
SWITCHES AND RELAYS

Power Window Door Switch
Door Lock Key Switch
Stop Light Switch
Parking Brake Switch
Door Lock Switch
Power Window Master Switch
Door Lock Key Switch
Door Lock Solenoid
Courtesy Switch
Door Lock Control Relay
Door Lock Solenoid
Rear Wiper Control Relay
Courtesy Switch
Fuel Sender Gauge

B8010
