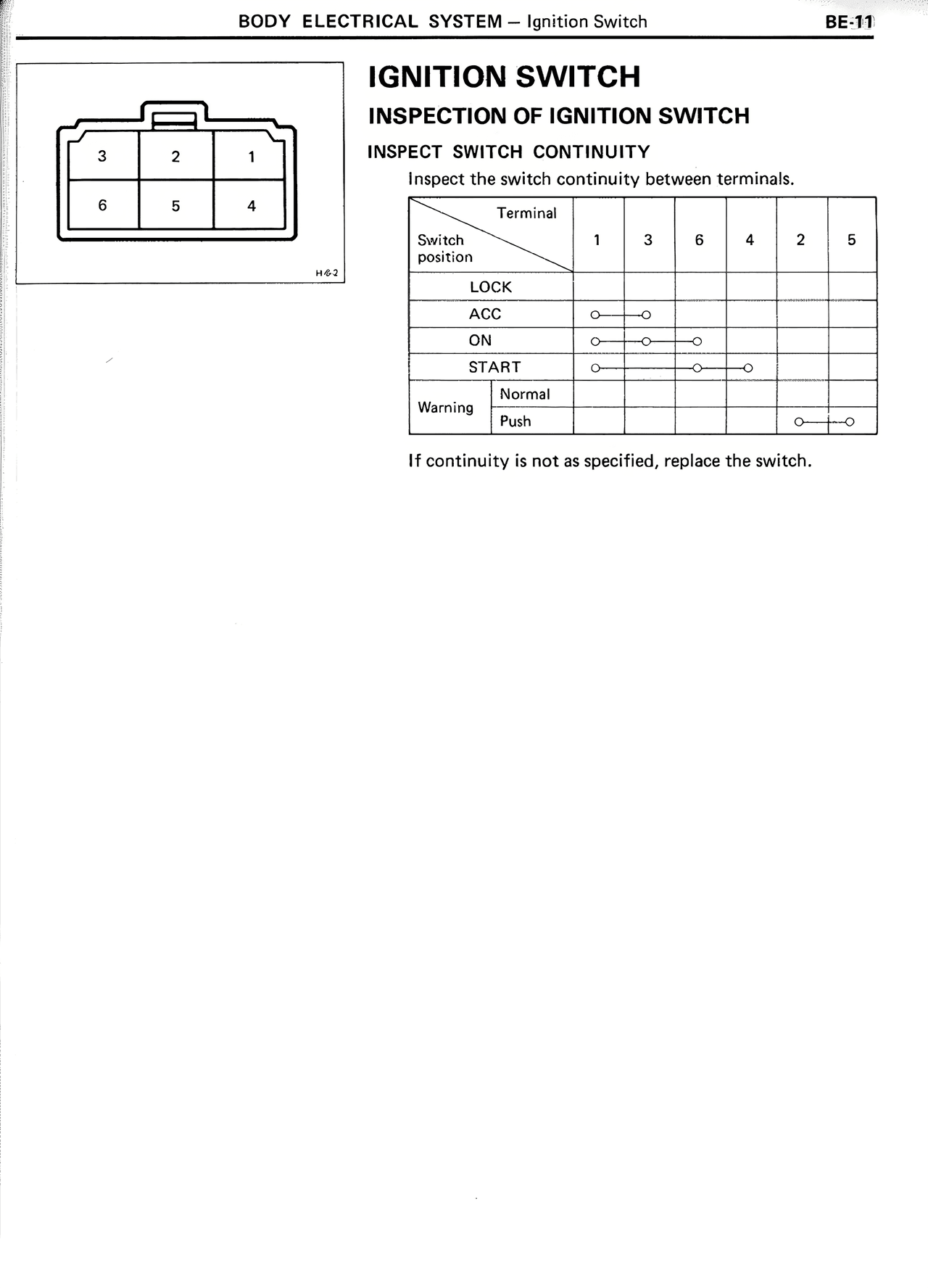

IGNITION SWITCH
INSPECTION OF IGNITION SWITCH
INSPECT SWITCH CONTINUITY
Inspect the switch continuity between terminals.
Switch position | Terminal | 1 | 3 | 6 | 4 | 2 | 5
LOCK | | | | | | |
ACC | | ○—○ | | | | |
ON | | ○—○—○ | | | |
START | | ○— | —○—○ | | |
Warning Normal | | | | | | |
Push | | | | | ○—○ |
If continuity is not as specified, replace the switch.
