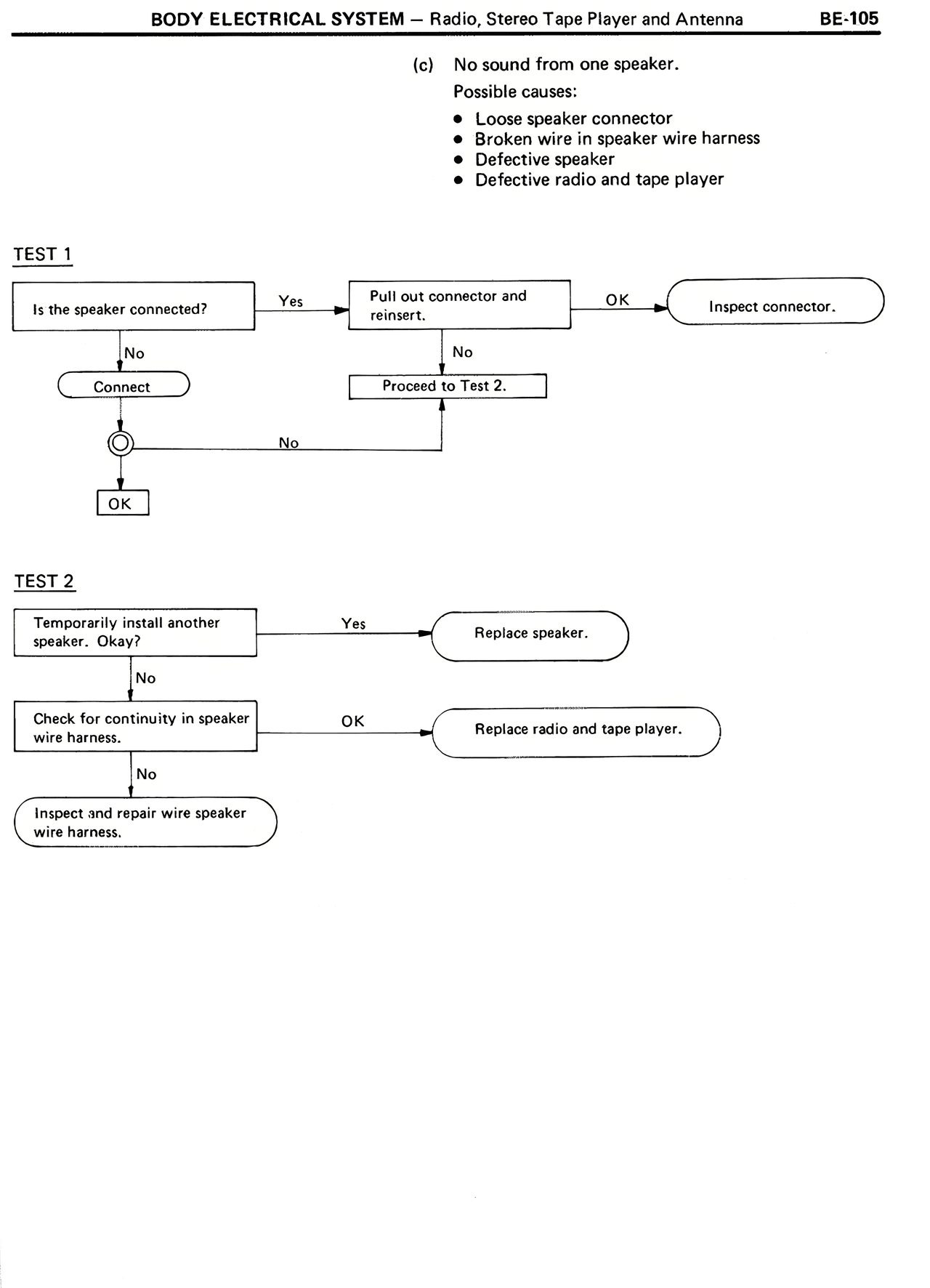

BE/Body Electrical System, page 105

BODY ELECTRICAL SYSTEM — Radio, Stereo Tape Player and Antenna     BE-105

(c)  No sound from one speaker.
     Possible causes:
     • Loose speaker connector
     • Broken wire in speaker wire harness
     • Defective speaker
     • Defective radio and tape player


TEST 1

Is the speaker connected? → Yes → Pull out connector and reinsert. → OK → Inspect connector.
     ↓
     No
     ↓
   Connect
     ↓
     ⊙ ← No ←┘
     ↓
    Yes
     ↓
     OK

     No
     ↓
   Proceed to Test 2.


TEST 2

Temporarily install another speaker. Okay? → Yes → Replace speaker.
     ↓
     No
     ↓
Check for continuity in speaker wire harness. → OK → Replace radio and tape player.
     ↓
     No
     ↓
Inspect and repair wire speaker wire harness.
