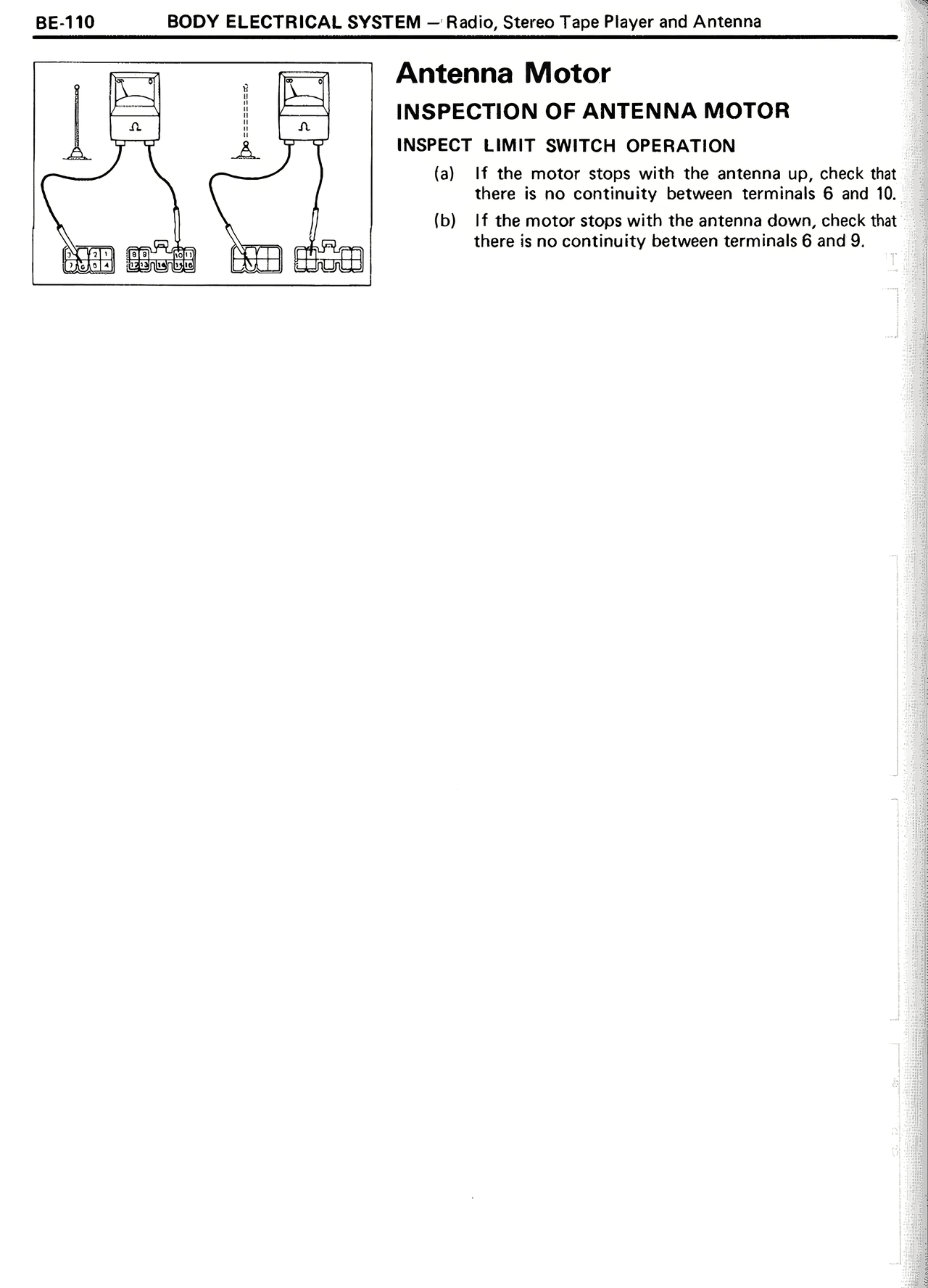

Antenna Motor INSPECTION OF ANTENNA MOTOR INSPECT LIMIT SWITCH OPERATION (a) If the motor stops with the antenna up, check that there is no continuity between terminals 6 and 10. (b) If the motor stops with the antenna down, check that there is no continuity between terminals 6 and 9.
