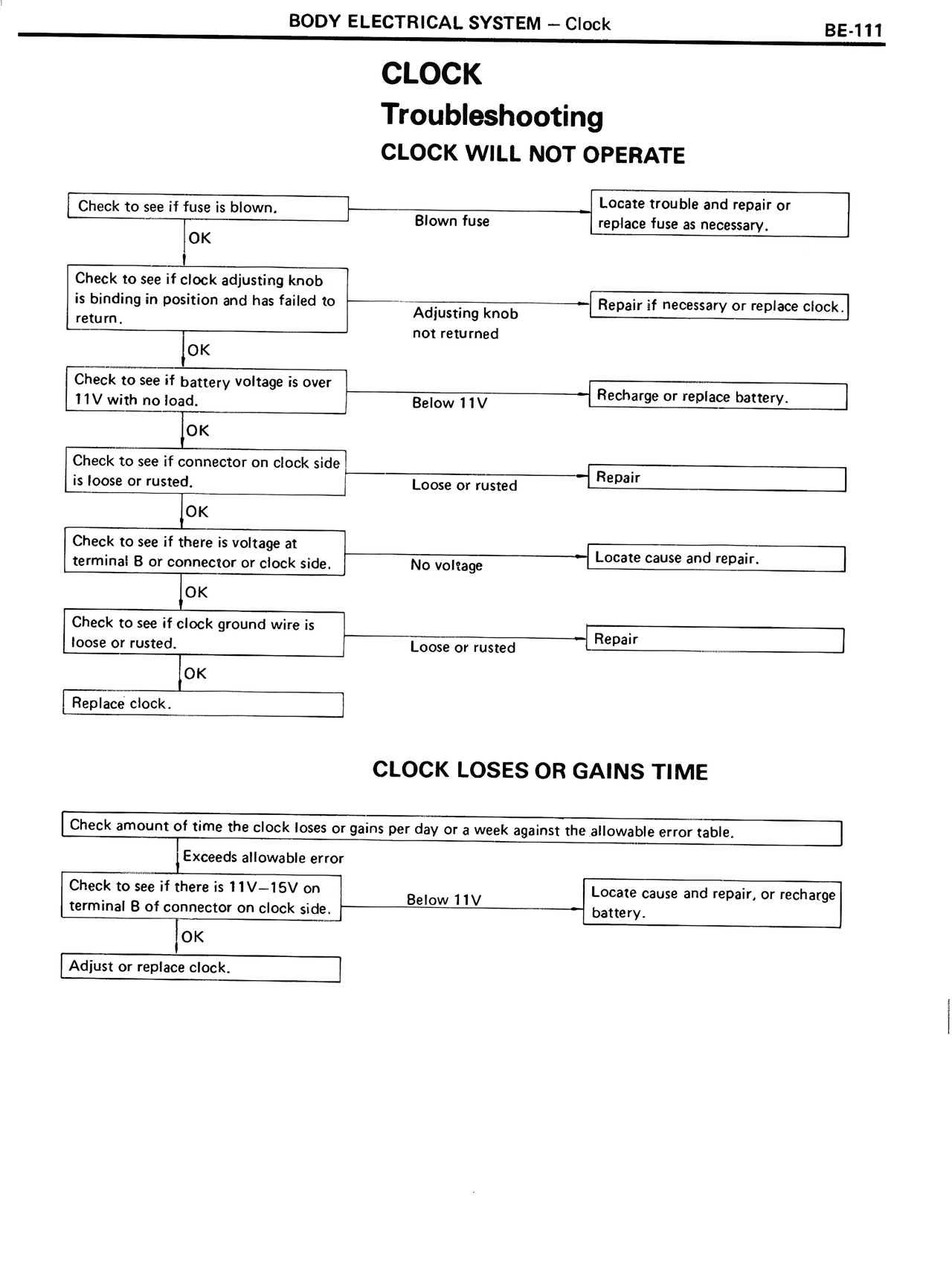

CLOCK
Troubleshooting
CLOCK WILL NOT OPERATE
Check to see if fuse is blown.
↓
OK
↓
Check to see if clock adjusting knob is binding in position and has failed to return.
↓
OK
↓
Check to see if battery voltage is over 11V with no load.
↓
OK
↓
Check to see if connector on clock side is loose or rusted.
↓
OK
↓
Check to see if there is voltage at terminal B or connector or clock side.
↓
OK
↓
Check to see if clock ground wire is loose or rusted.
↓
OK
↓
Replace clock.
Blown fuse → Locate trouble and repair or replace fuse as necessary.
Adjusting knob not returned → Repair if necessary or replace clock.
Below 11V → Recharge or replace battery.
Loose or rusted → Repair
No voltage → Locate cause and repair.
Loose or rusted → Repair
CLOCK LOSES OR GAINS TIME
Check amount of time the clock loses or gains per day or a week against the allowable error table.
↓
Exceeds allowable error
↓
Check to see if there is 11V—15V on terminal B of connector on clock side.
↓
OK
↓
Adjust or replace clock.
Below 11V → Locate cause and repair, or recharge battery.
