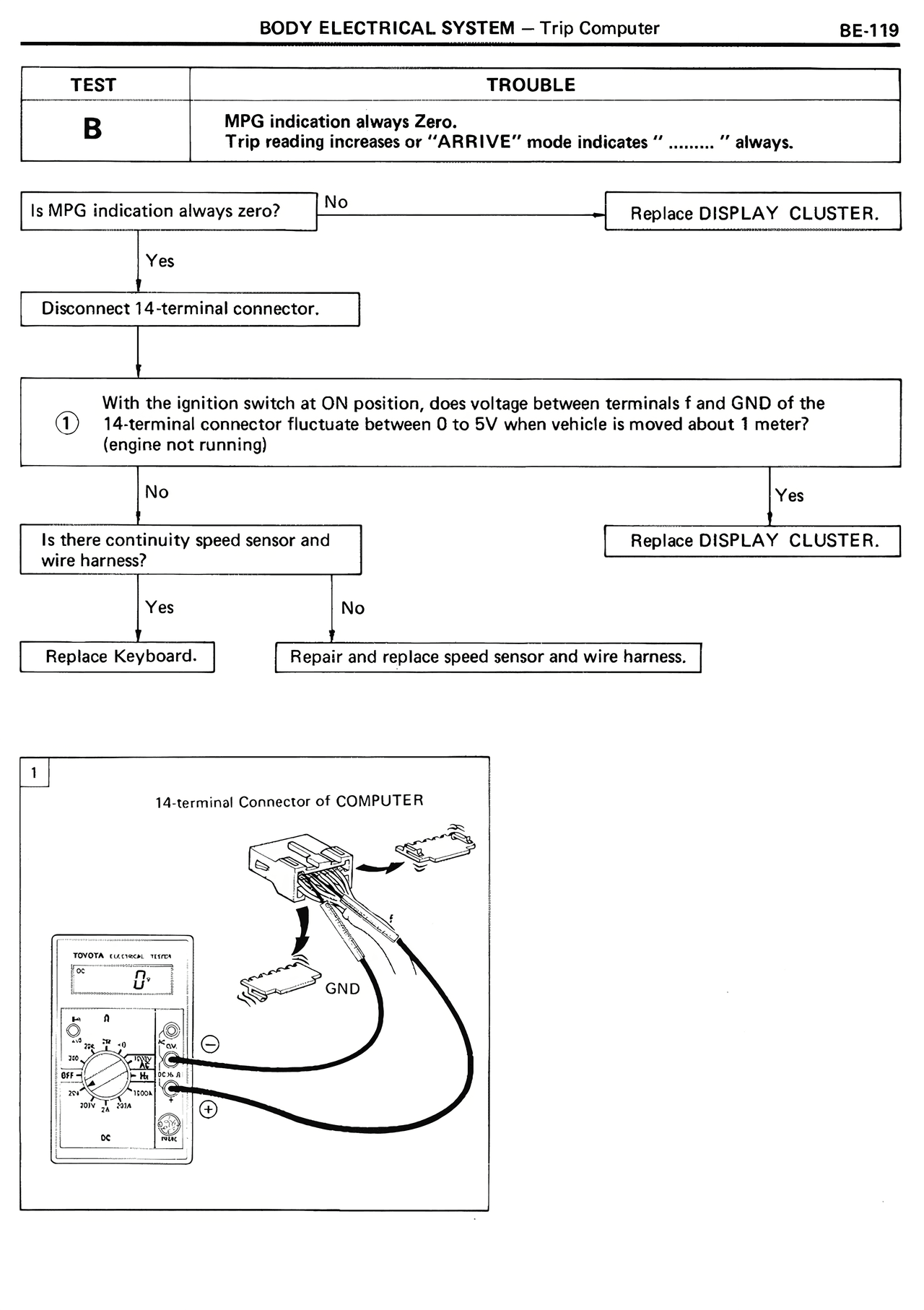

BODY ELECTRICAL SYSTEM — Trip Computer
BE-119
TEST
TROUBLE
B
MPG indication always Zero.
Trip reading increases or "ARRIVE" mode indicates " ......... " always.
Is MPG indication always zero?
No
Replace DISPLAY CLUSTER.
Yes
Disconnect 14-terminal connector.
①
With the ignition switch at ON position, does voltage between terminals f and GND of the 14-terminal connector fluctuate between 0 to 5V when vehicle is moved about 1 meter?
(engine not running)
No
Yes
Is there continuity speed sensor and wire harness?
Replace DISPLAY CLUSTER.
Yes
No
Replace Keyboard.
Repair and replace speed sensor and wire harness.
1
14-terminal Connector of COMPUTER
GND
TOYOTA
DC
