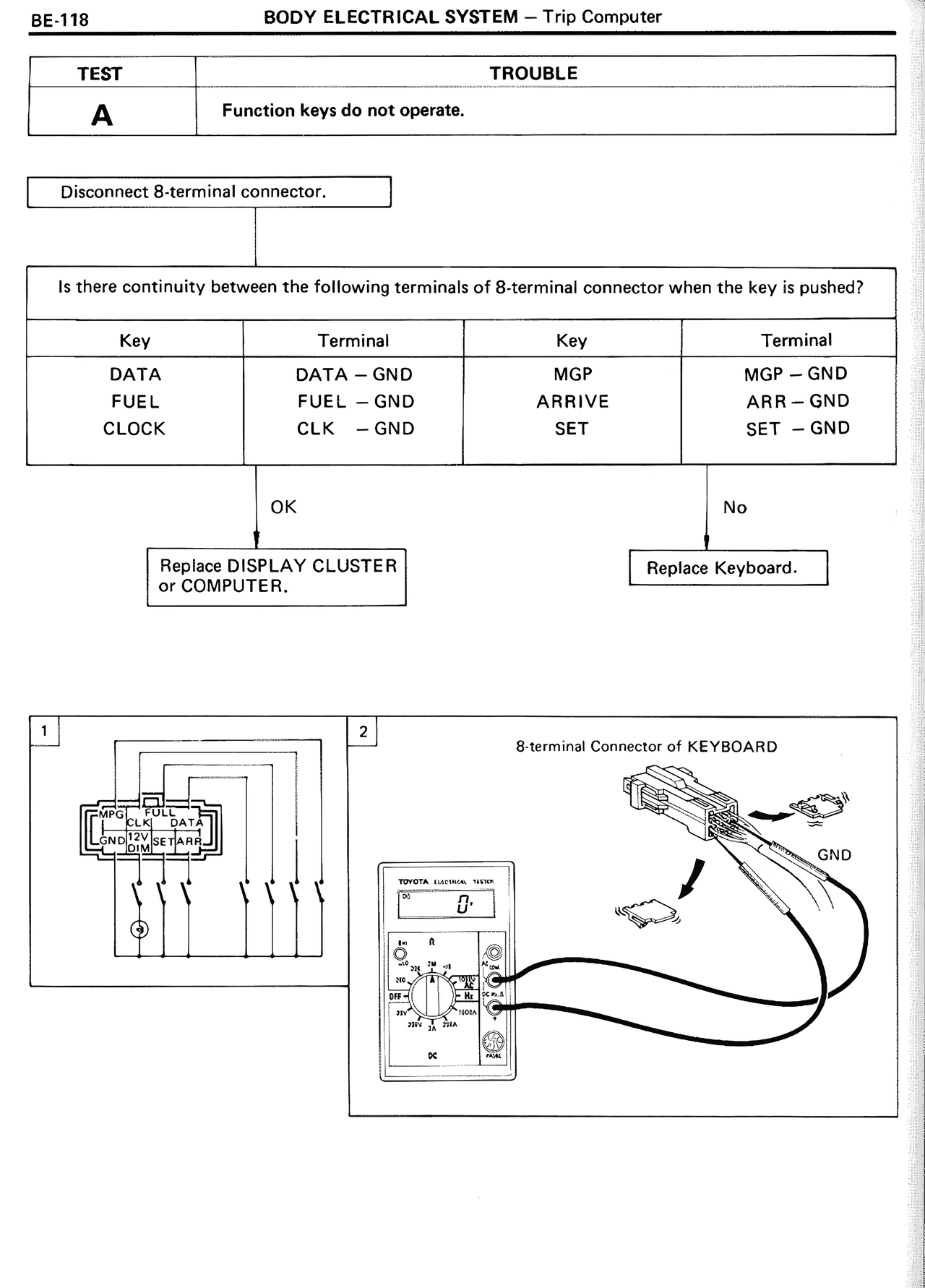

BE-118 BODY ELECTRICAL SYSTEM — Trip Computer TEST TROUBLE A Function keys do not operate. Disconnect 8-terminal connector. Is there continuity between the following terminals of 8-terminal connector when the key is pushed? Key Terminal Key Terminal DATA DATA — GND MGP MGP — GND FUEL FUEL — GND ARRIVE ARR — GND CLOCK CLK — GND SET SET — GND OK No Replace DISPLAY CLUSTER or COMPUTER. Replace Keyboard. 1 2 8-terminal Connector of KEYBOARD MGP CLK DATA GND FUEL ARR SET
