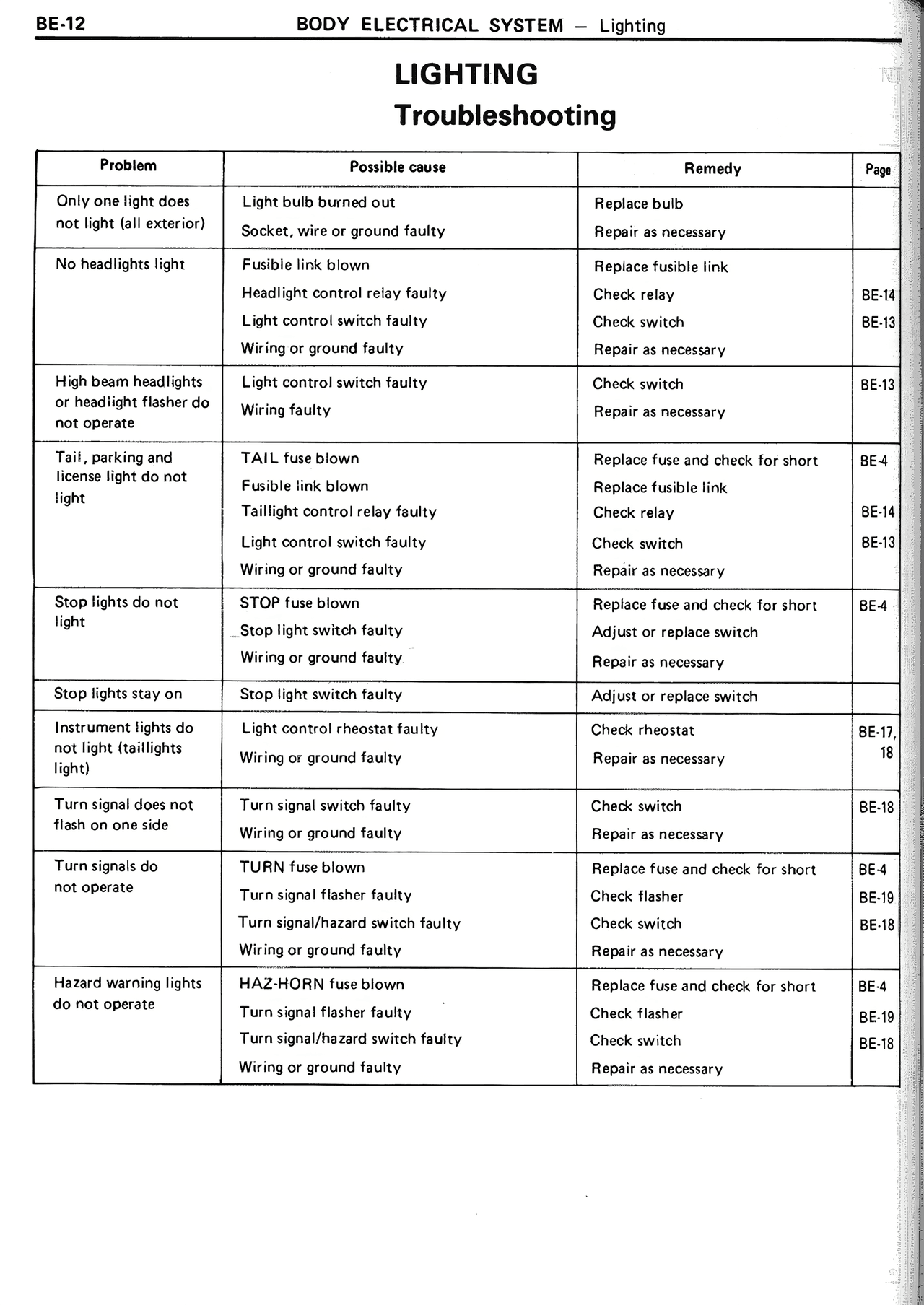

LIGHTING
Troubleshooting
Problem | Possible cause | Remedy | Page
Only one light does not light (all exterior) | Light bulb burned out | Replace bulb |
| Socket, wire or ground faulty | Repair as necessary |
No headlights light | Fusible link blown | Replace fusible link |
| Headlight control relay faulty | Check relay | BE-14
| Light control switch faulty | Check switch | BE-13
| Wiring or ground faulty | Repair as necessary |
High beam headlights or headlight flasher do not operate | Light control switch faulty | Check switch | BE-13
| Wiring faulty | Repair as necessary |
Tail, parking and license light do not light | TAIL fuse blown | Replace fuse and check for short | BE-4
| Fusible link blown | Replace fusible link |
| Taillight control relay faulty | Check relay | BE-14
| Light control switch faulty | Check switch | BE-13
| Wiring or ground faulty | Repair as necessary |
Stop lights do not light | STOP fuse blown | Replace fuse and check for short | BE-4
| Stop light switch faulty | Adjust or replace switch |
| Wiring or ground faulty | Repair as necessary |
Stop lights stay on | Stop light switch faulty | Adjust or replace switch |
Instrument lights do not light (taillights light) | Light control rheostat faulty | Check rheostat | BE-17
| Wiring or ground faulty | Repair as necessary | B
Turn signal does not flash on one side | Turn signal switch faulty | Check switch | BE-18
| Wiring or ground faulty | Repair as necessary |
Turn signals do not operate | TURN fuse blown | Replace fuse and check for short | BE-4
| Turn signal flasher faulty | Check flasher | BE-19
| Turn signal/hazard switch faulty | Check switch | BE-18
| Wiring or ground faulty | Repair as necessary |
Hazard warning lights do not operate | HAZ-HORN fuse blown | Replace fuse and check for short | BE-4
| Turn signal flasher faulty | Check flasher | BE-19
| Turn signal/hazard switch faulty | Check switch | BE-18
| Wiring or ground faulty | Repair as necessary |
