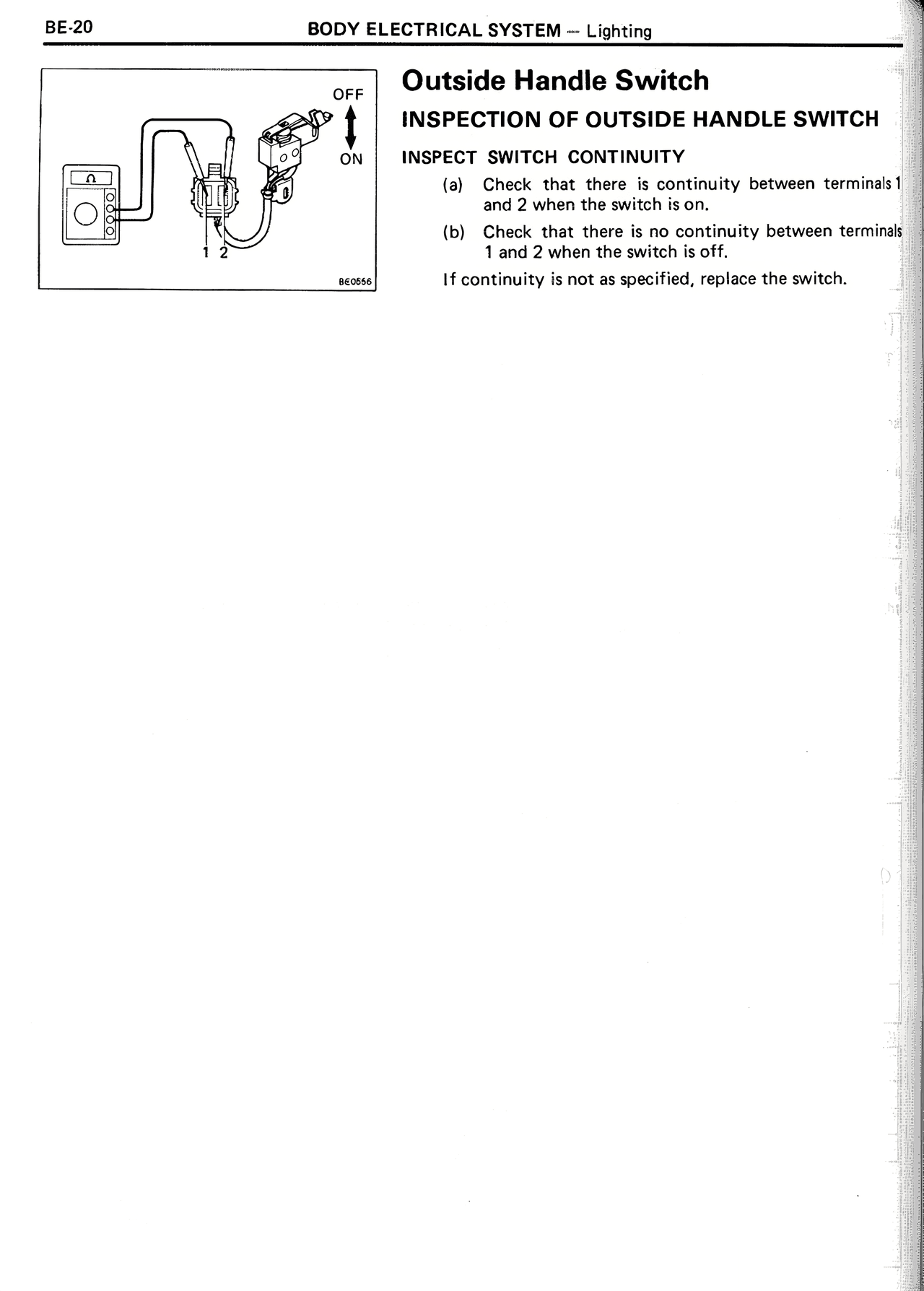

Outside Handle Switch — MK2 Supra Body Electrical System, page 20
100%
Outside Handle Switch INSPECTION OF OUTSIDE HANDLE SWITCH INSPECT SWITCH CONTINUITY (a) Check that there is continuity between terminals 1 and 2 when the switch is on. (b) Check that there is no continuity between terminals 1 and 2 when the switch is off. If continuity is not as specified, replace the switch.
