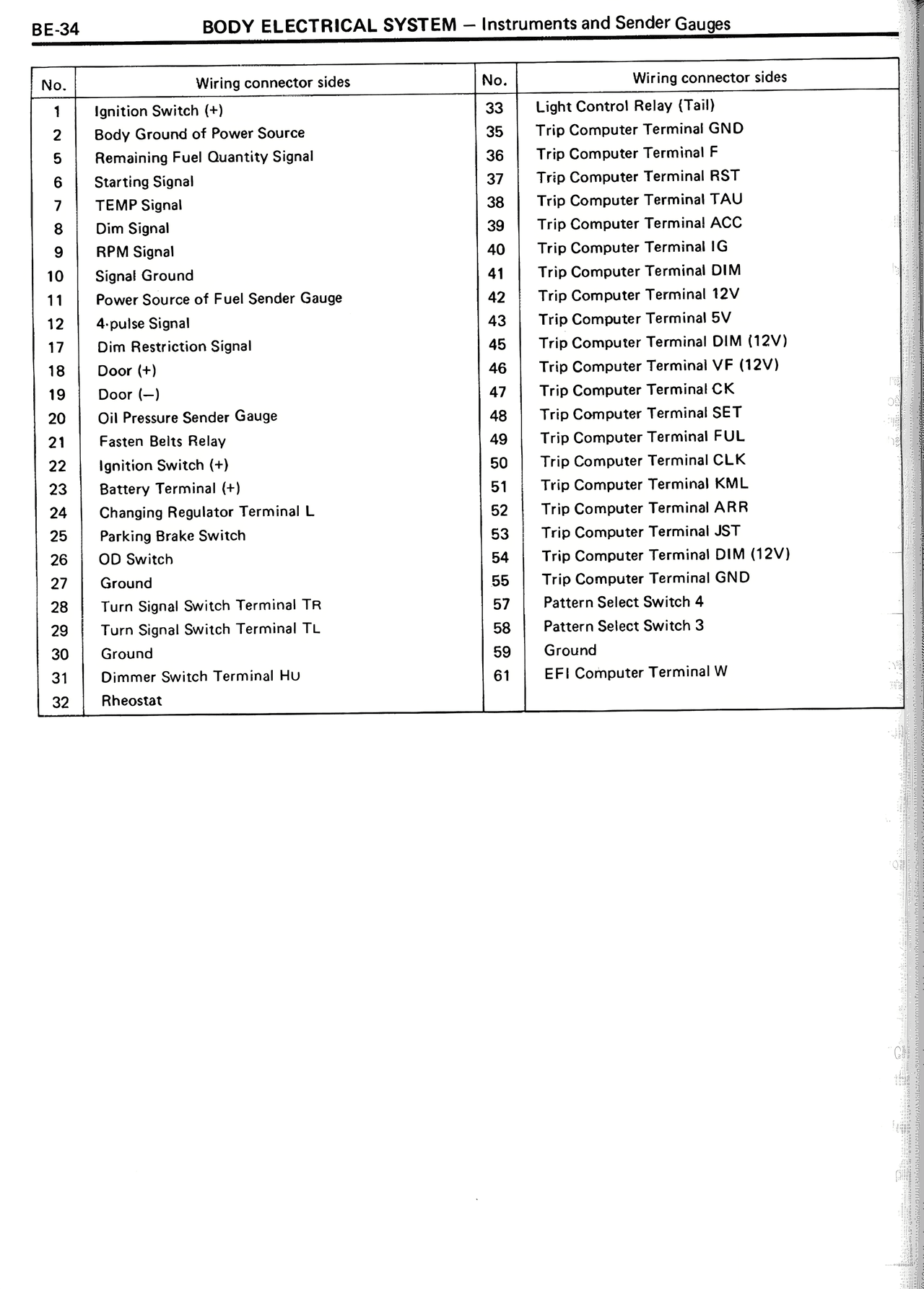

No. Wiring connector sides No. Wiring connector sides
1 Ignition Switch (*) 33 Light Control Relay (Tail)
2 Body Ground of Power Source 35 Trip Computer Terminal GND
5 Remaining Fuel Quantity Signal 36 Trip Computer Terminal F
6 Starting Signal 37 Trip Computer Terminal RST
7 TEMP Signal 38 Trip Computer Terminal TAU
8 Dim Signal 39 Trip Computer Terminal ACC
9 RPM Signal 40 Trip Computer Terminal IG
10 Signal Ground 41 Trip Computer Terminal DM
11 Power Source of Fuel Sender Gauge 42 Trip Computer Terminal 12V
12 4-pulse Signal 43 Trip Computer Terminal 5V
17 Dim Restriction Signal 45 Trip Computer Terminal DIM (12V)
18 Door (+) 46 Trip Computer Terminal VF (12V)
19 Door (–) 47 Trip Computer Terminal CK
20 Oil Pressure Sender Gauge 48 Trip Computer Terminal SET
21 Fasten Belts Relay 49 Trip Computer Terminal FUL
22 Ignition Switch (+) 50 Trip Computer Terminal CLK
23 Battery Terminal (+) 51 Trip Computer Terminal KML
24 Changing Regulator Terminal L 52 Trip Computer Terminal ARR
25 Parking Brake Switch 53 Trip Computer Terminal JST
26 OD Switch 54 Trip Computer Terminal DIM (12V)
27 Ground 55 Trip Computer Terminal GND
28 Turn Signal Switch Terminal TR 57 Pattern Select Switch 4
29 Turn Signal Switch Terminal TL 58 Pattern Select Switch 3
30 Ground 59 Ground
31 Dimmer Switch Terminal HU 61 EFI Computer Terminal W
32 Rheostat
