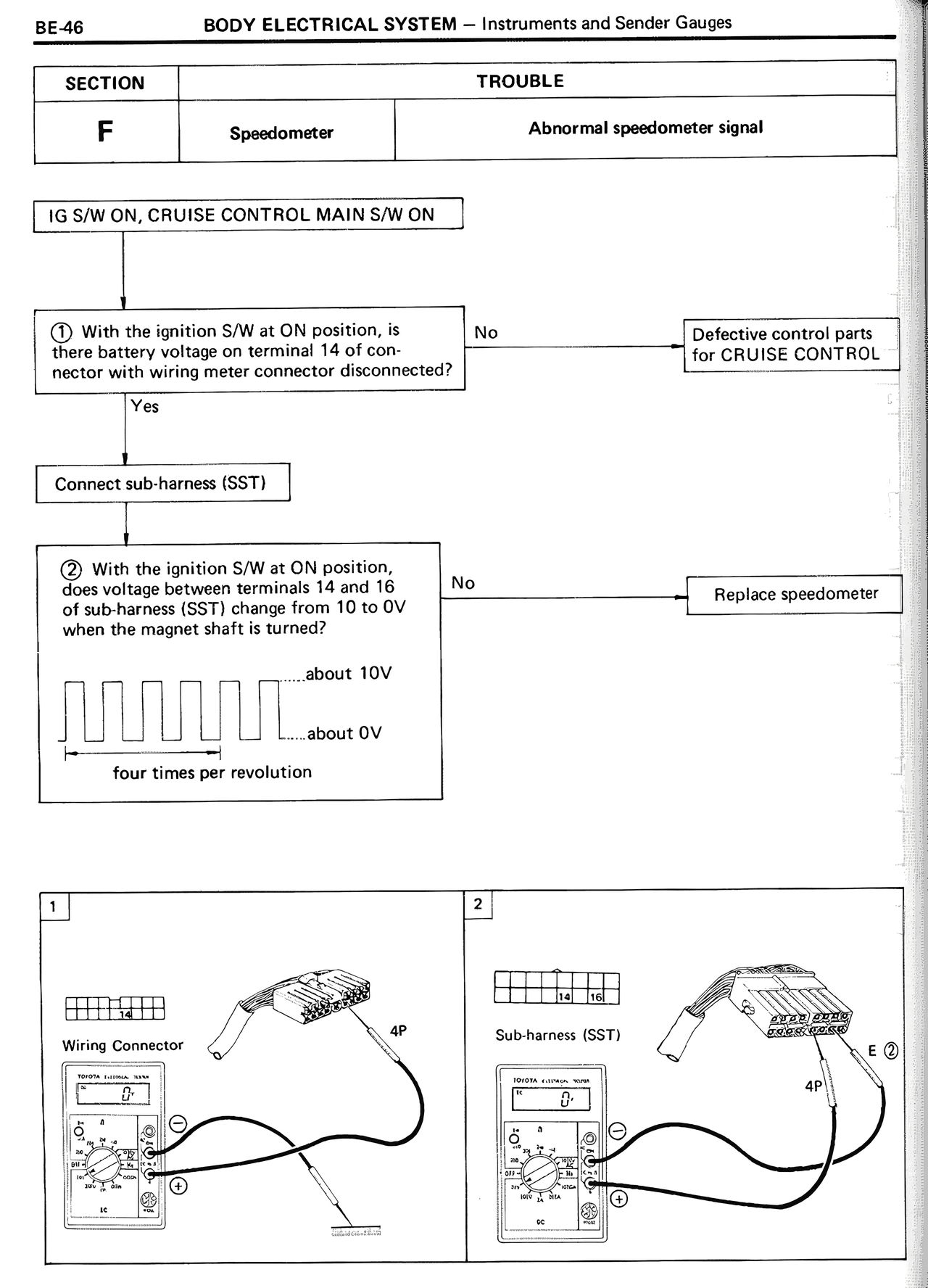

BE-46
BODY ELECTRICAL SYSTEM — Instruments and Sender Gauges
SECTION
TROUBLE
F
Speedometer
Abnormal speedometer signal
IG S/W ON, CRUISE CONTROL MAIN S/W ON
① With the ignition S/W at ON position, is there battery voltage at terminal 14 of connector with wiring meter connector disconnected?
No → Defective control parts for CRUISE CONTROL
Yes ↓
Connect sub-harness (SST)
② With the ignition S/W at ON position, does voltage between terminals 14 and 16 of sub-harness (SST) change from 10 to 0V when the magnet shaft is turned?
No → Replace speedometer
about 10V
about 0V
four times per revolution
1
Wiring Connector
4P
2
Sub-harness (SST)
4P
E ②
