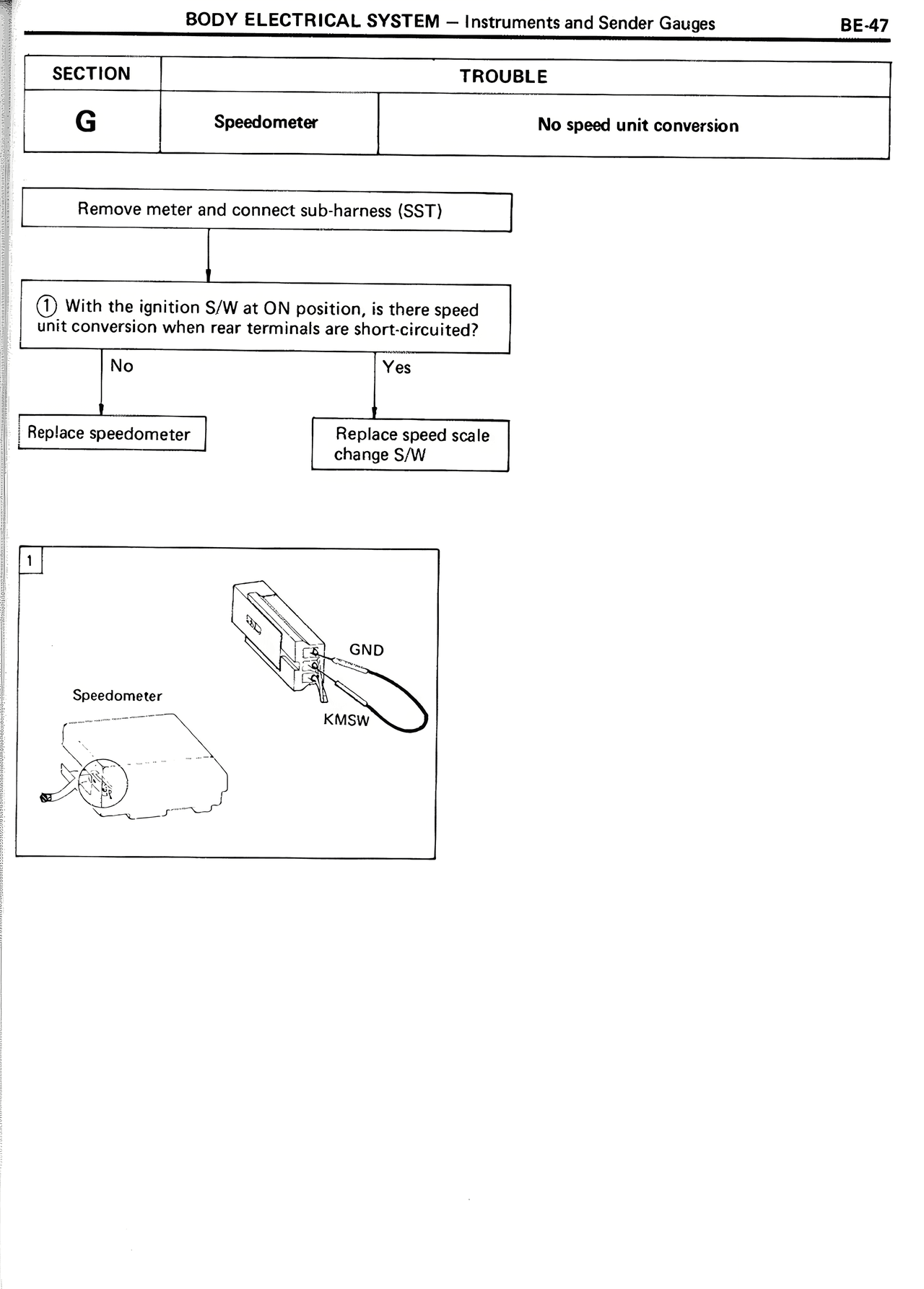

SECTION G Speedometer TROUBLE No speed unit conversion Remove meter and connect sub-harness (SST) ① With the ignition S/W at ON position, is there speed unit conversion when rear terminals are short-circuited? No Yes Replace speedometer Replace speed scale change S/W 1 Speedometer GND KMSW
