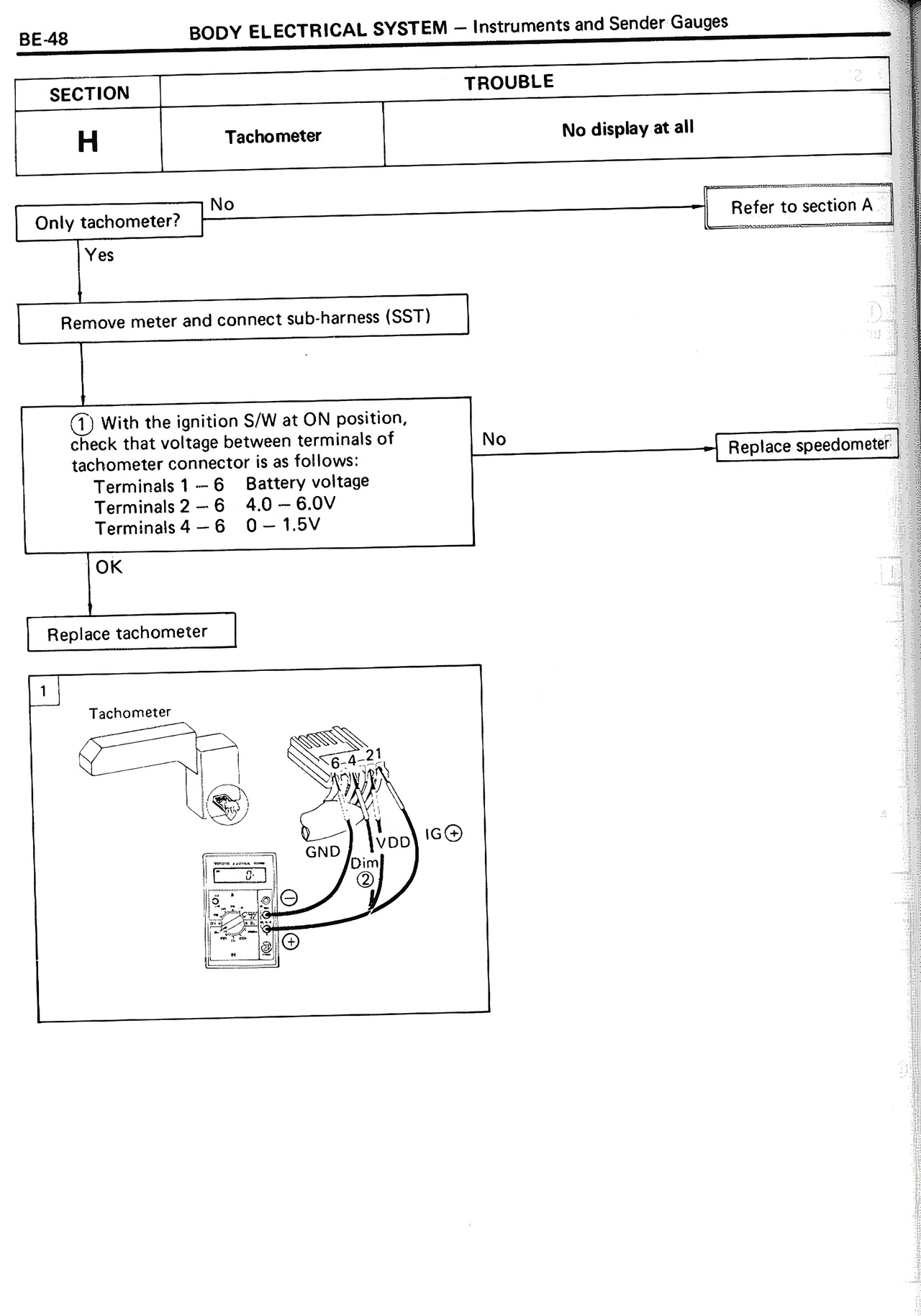

SECTION H
TROUBLE
Tachometer
No display at all
Only tachometer?
No
Refer to section A
Yes
Remove meter and connect sub-harness (SST)
1 With the ignition S/W at ON position,
check that voltage between terminals of
tachometer connector is as follows:
Terminals 1 — 6 Battery voltage
Terminals 2 — 6 4.0 — 6.0V
Terminals 4 — 6 0 — 1.5V
No
Replace speedometer
OK
Replace tachometer
1
Tachometer
[DIAGRAM showing tachometer and connector with terminals labeled: 1G, IG, GND, 1, 2, 3, 4, 5, 6, 21]
