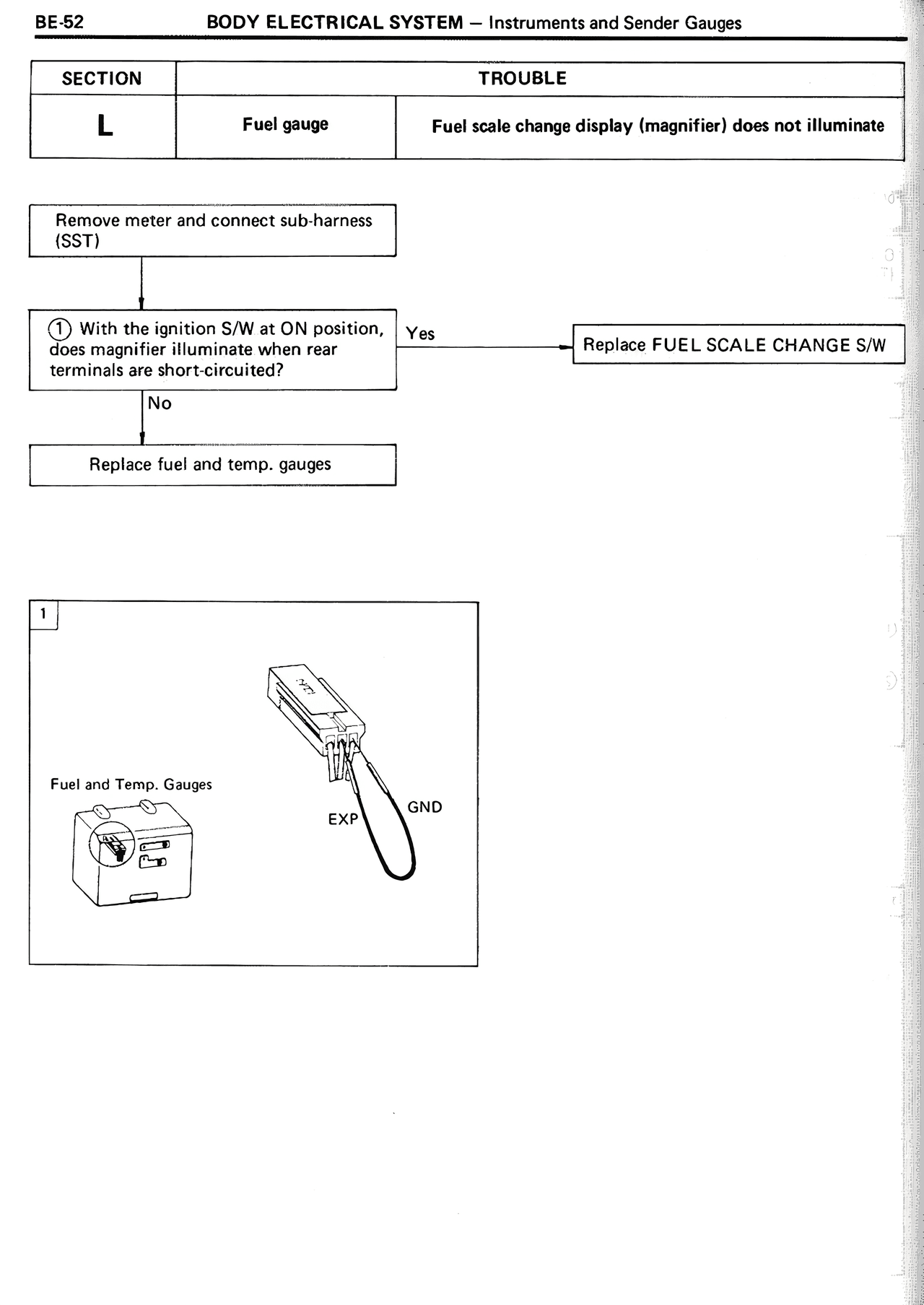

BE-62          BODY ELECTRICAL SYSTEM — Instruments and Sender Gauges

SECTION     TROUBLE
L           Fuel gauge     Fuel scale change display (magnifier) does not illuminate

Remove meter and connect sub-harness
(SST)

① With the ignition S/W at ON position,     Yes ────→ Replace FUEL SCALE CHANGE S/W
does magnifier illuminate when rear
terminals are short-circuited?
            │ No
            ↓
Replace fuel and temp. gauges



1

Fuel and Temp. Gauges
                                    GND
                            EXP
