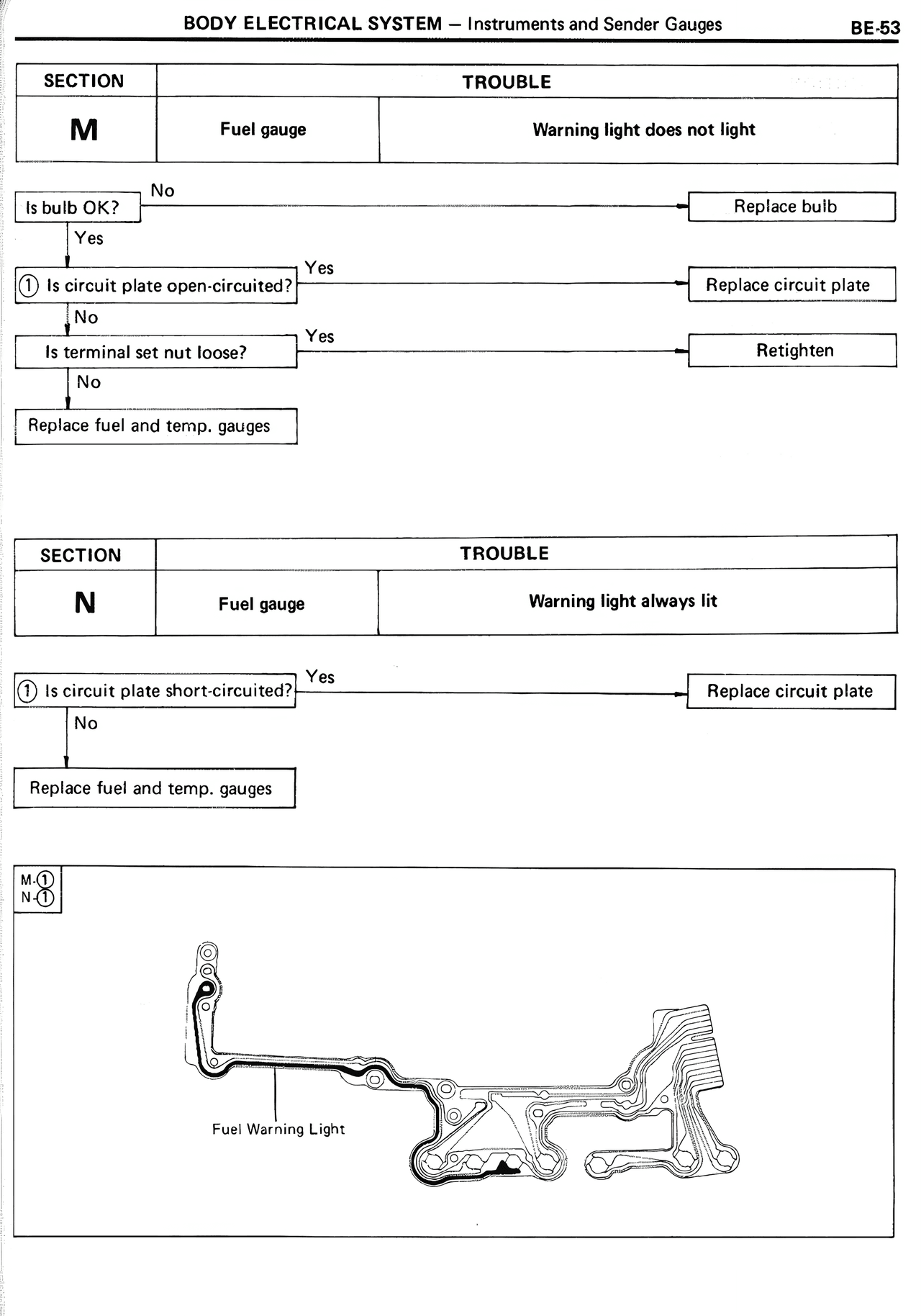

SECTION TROUBLE M Fuel gauge Warning light does not light Is bulb OK? No Replace bulb Yes ① Is circuit plate open-circuited? Yes Replace circuit plate No Is terminal set nut loose? Yes Retighten No Replace fuel and temp. gauges SECTION TROUBLE N Fuel gauge Warning light always lit ① Is circuit plate short-circuited? Yes Replace circuit plate No Replace fuel and temp. gauges M ① N ① Fuel Warning Light
