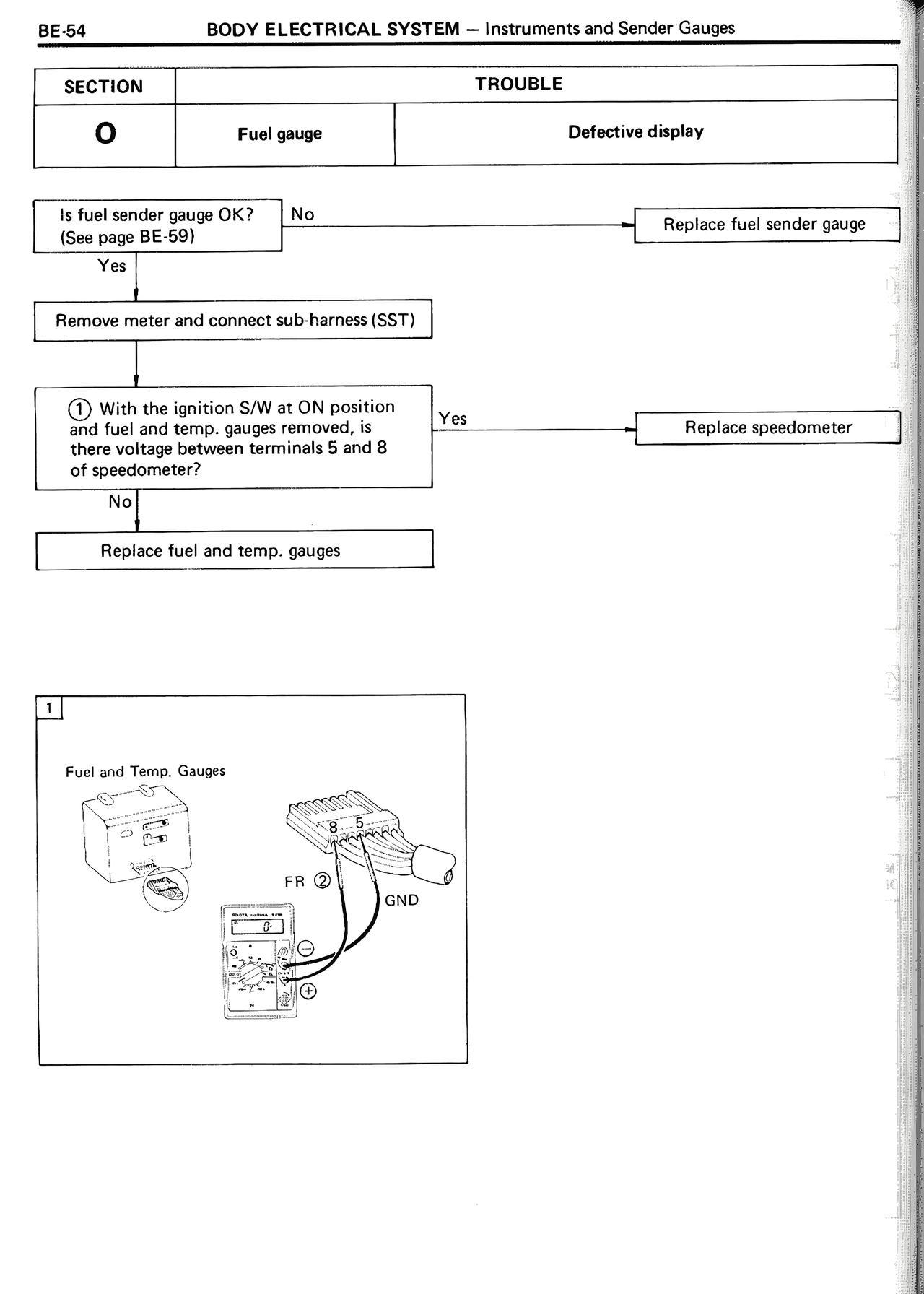

BE-54
BODY ELECTRICAL SYSTEM — Instruments and Sender Gauges
SECTION | TROUBLE
O | Fuel gauge | Defective display
Is fuel sender gauge OK?
(See page BE-59) | No → Replace fuel sender gauge
Yes ↓
Remove meter and connect sub-harness (SST)
↓
① With the ignition S/W at ON position
and fuel and temp. gauges removed, is
there voltage between terminals 5 and 8
of speedometer? | Yes → Replace speedometer
No ↓
Replace fuel and temp. gauges
①
Fuel and Temp. Gauges
[DIAGRAM showing fuel and temperature gauges with meter connections. Shows terminals labeled FR ②, GND, and terminals 5 and 8 on a meter display]
