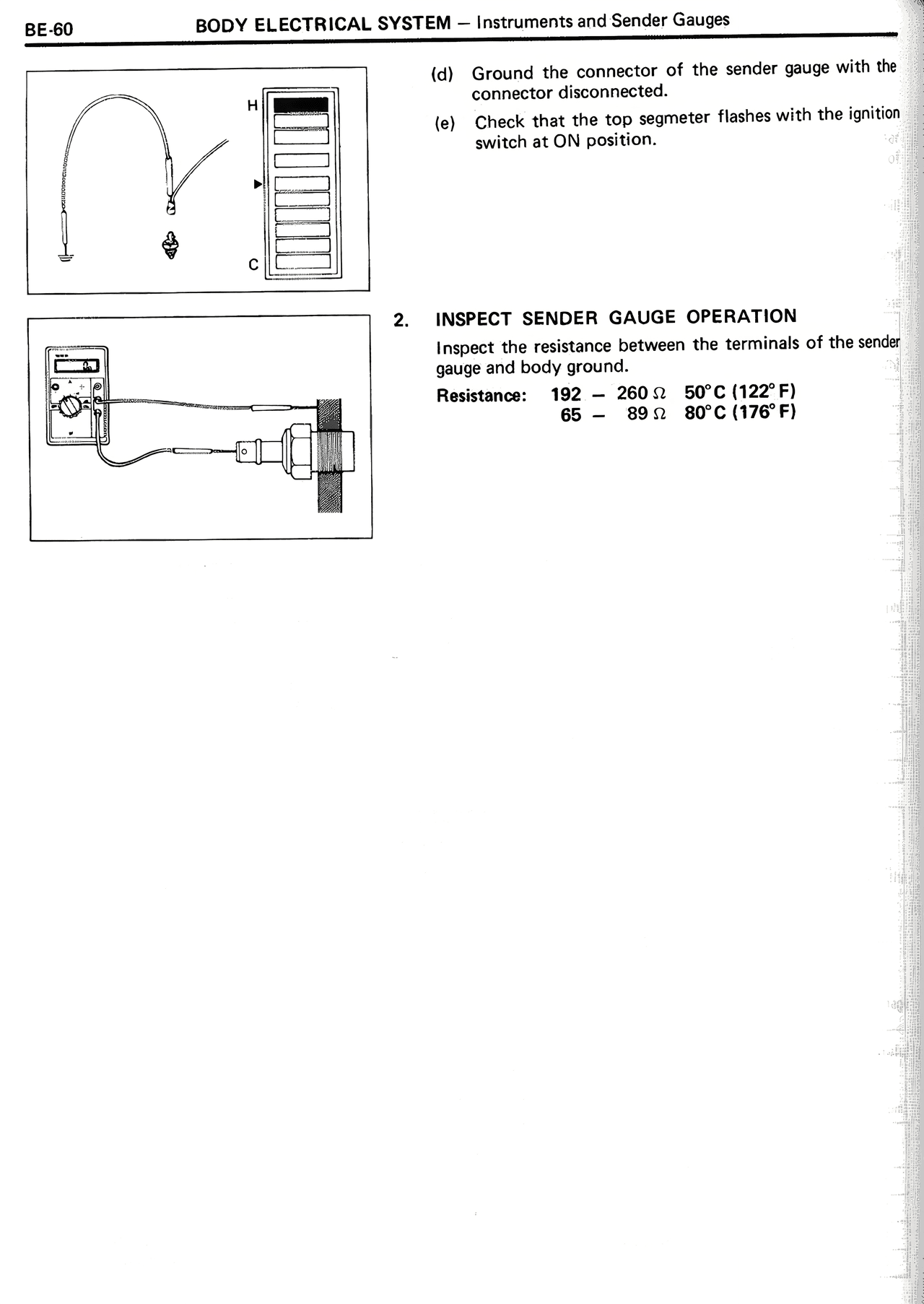

(d) Ground the connector of the sender gauge with the
connector disconnected.
(e) Check that the top segment flashes with the ignition
switch at ON position.
2. INSPECT SENDER GAUGE OPERATION
Inspect the resistance between the terminals of the sender
gauge and body ground.
Resistance: 192 — 320 Ω 50°C (122°F)
65 — 89 Ω 80°C (176°F)
