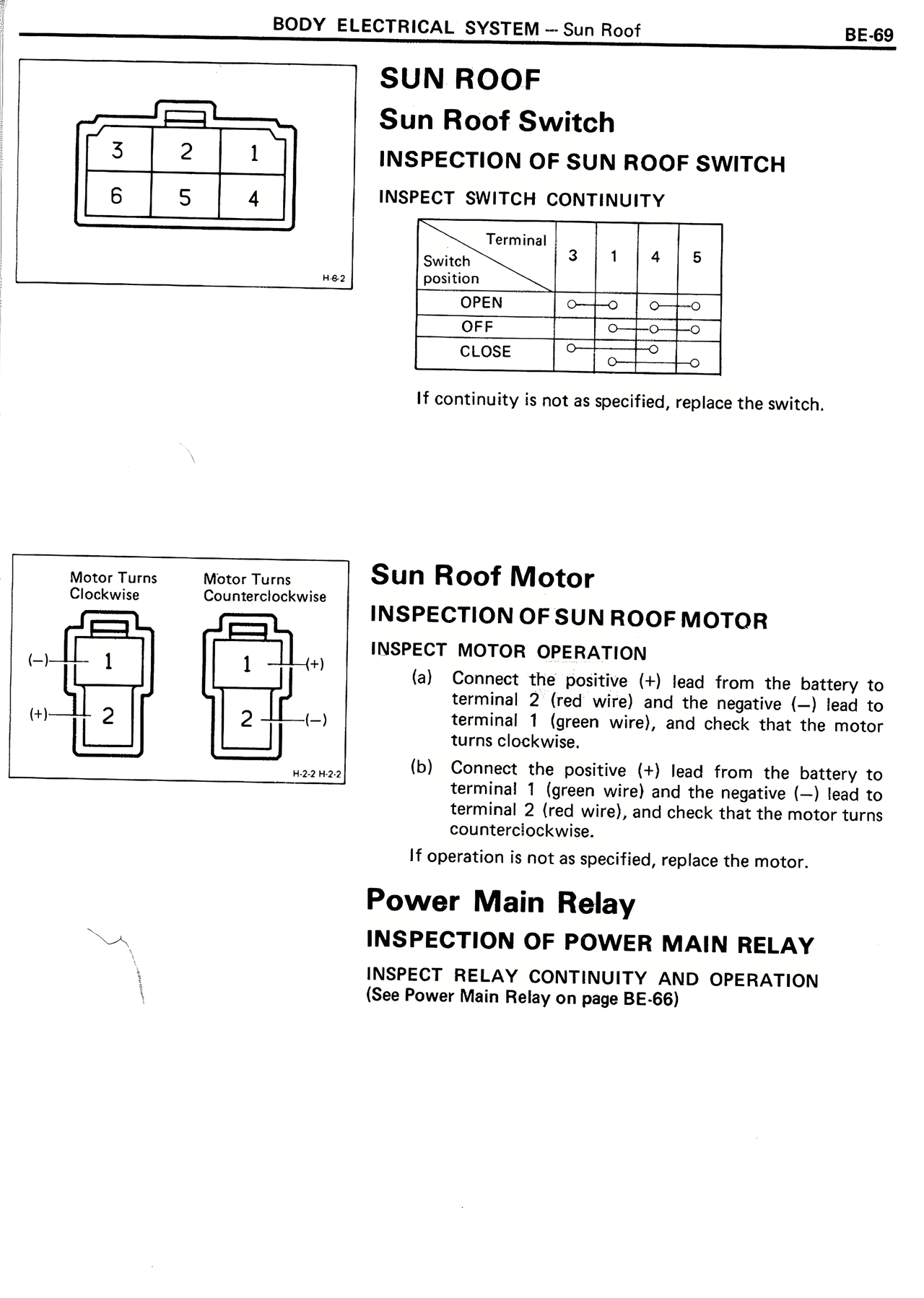

SUN ROOF
Sun Roof Switch
INSPECTION OF SUN ROOF SWITCH
INSPECT SWITCH CONTINUITY
Switch
position
OPEN
OFF
CLOSE
Terminal
3 1 4 5
o—o o—o
o o o
o o
If continuity is not as specified, replace the switch.
Sun Roof Motor
INSPECTION OF SUN ROOF MOTOR
INSPECT MOTOR OPERATION
(a) Connect the positive (+) lead from the battery to
terminal 2 (red wire) and the negative (−) lead to
terminal 1 (green wire), and check that the motor
turns clockwise.
(b) Connect the positive (+) lead from the battery to
terminal 1 (green wire) and the negative (−) lead to
terminal 2 (red wire), and check that the motor turns
counterclockwise.
If operation is not as specified, replace the motor.
Power Main Relay
INSPECTION OF POWER MAIN RELAY
INSPECT RELAY CONTINUITY AND OPERATION
(See Power Main Relay on page BE-66)
Motor Turns
Clockwise
(−)
1
(+)
2
Motor Turns
Counterclockwise
1 (+)
2 (−)
