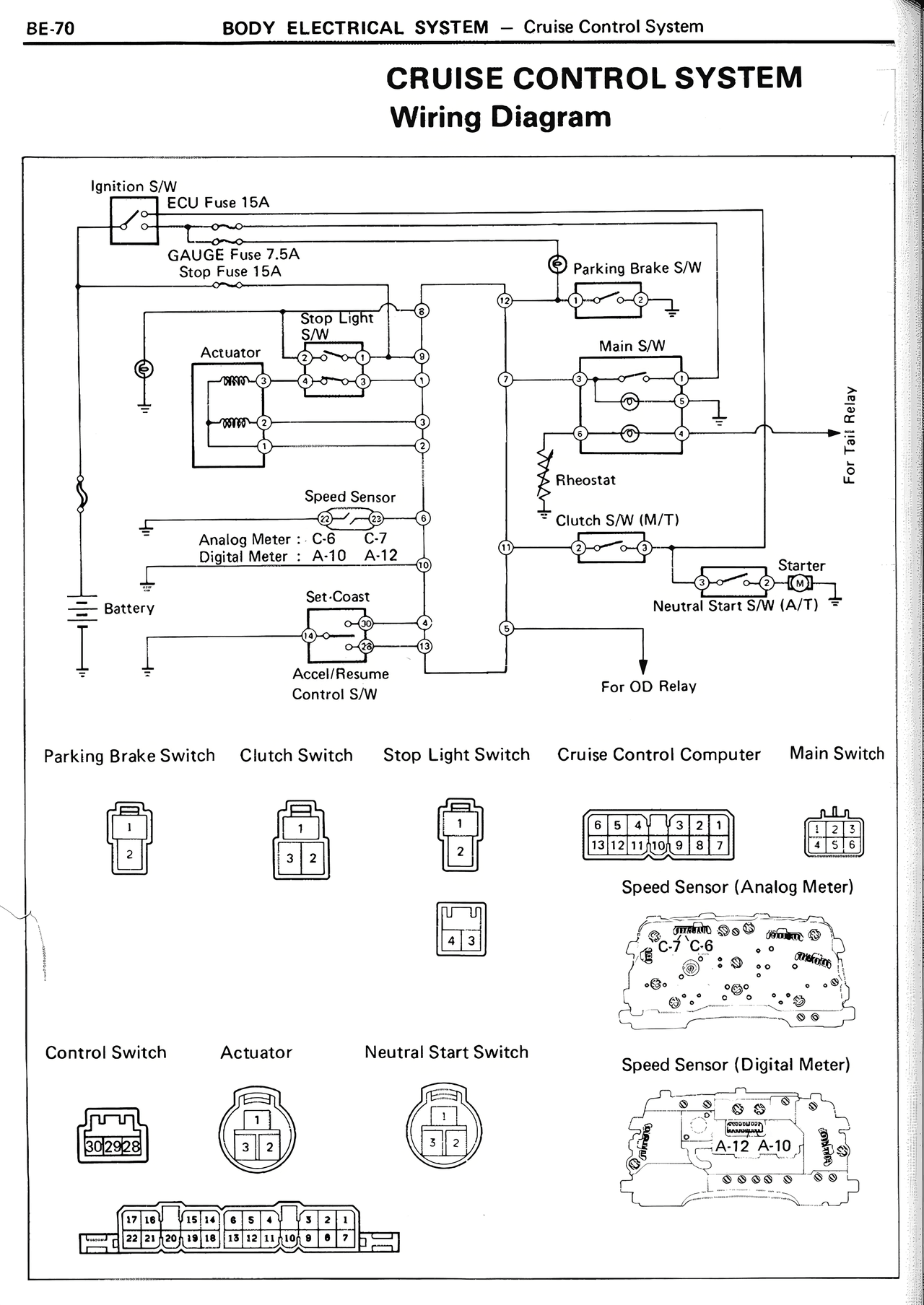

BE-70 BODY ELECTRICAL SYSTEM — Cruise Control System
CRUISE CONTROL SYSTEM
Wiring Diagram
Ignition S/W
ECU Fuse 15A
GAUGE Fuse 7.5A
Stop Fuse 15A
Parking Brake S/W
Stop Light
S/W
Actuator
Main S/W
For Tail Relay
Speed Sensor
Analog Meter : C-6 C-7
Digital Meter : A-10 A-12
Clutch S/W (M/T)
Starter
Set-Coast
Neutral Start S/W (A/T)
Battery
Accel/Resume
Control S/W
For OD Relay
Parking Brake Switch Clutch Switch Stop Light Switch Cruise Control Computer Main Switch
[Switch diagrams showing pin configurations for each component]
Speed Sensor (Analog Meter)
C-7 C-6
Control Switch Actuator Neutral Start Switch
Speed Sensor (Digital Meter)
A-12 A-10
