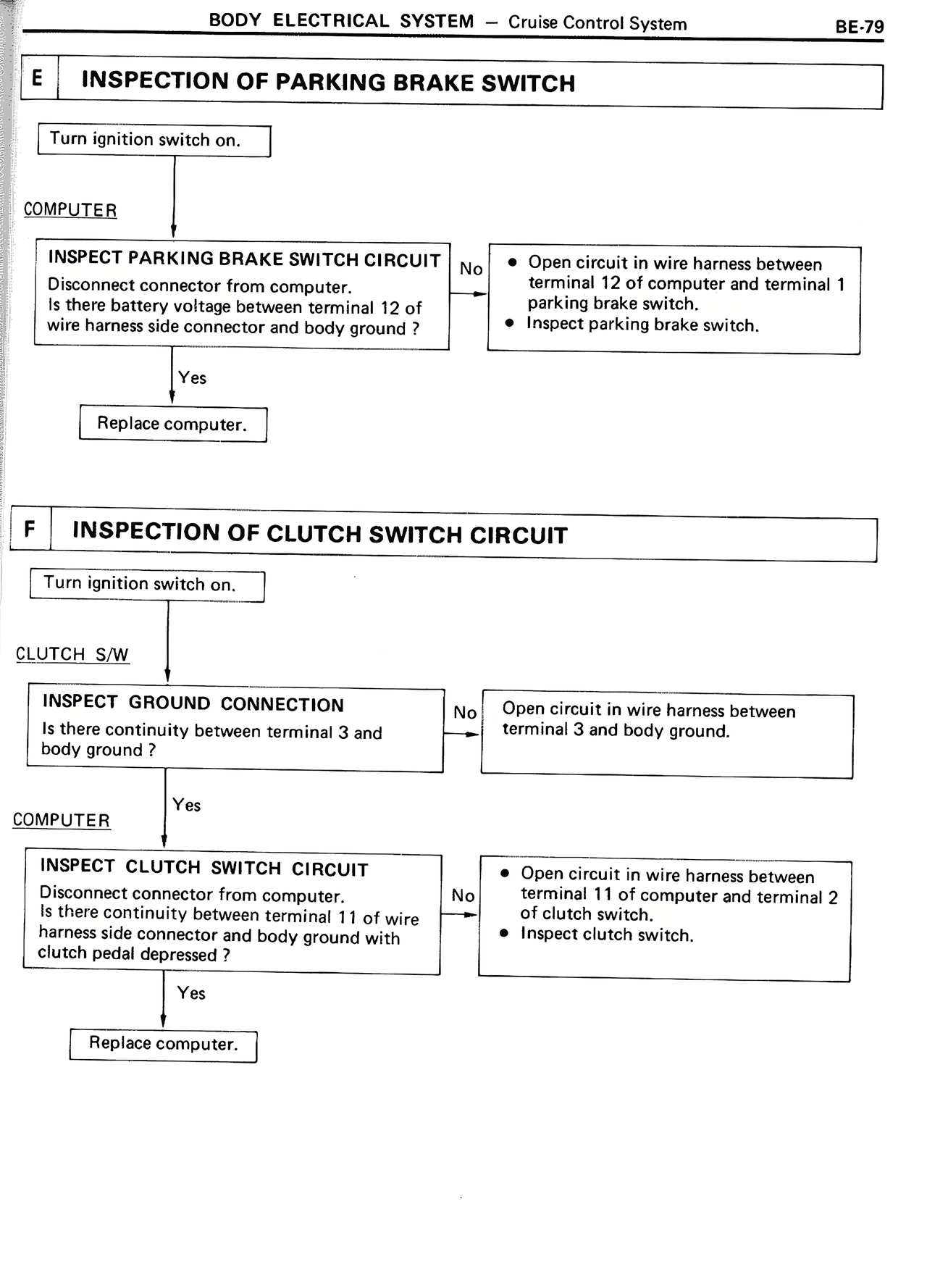

E INSPECTION OF PARKING BRAKE SWITCH
Turn ignition switch on.
COMPUTER
INSPECT PARKING BRAKE SWITCH CIRCUIT
Disconnect connector from computer.
Is there battery voltage between terminal 12 of
wire harness side connector and body ground ?
No → • Open circuit in wire harness between
terminal 12 of computer and terminal 1
parking brake switch.
• Inspect parking brake switch.
Yes
↓
Replace computer.
F INSPECTION OF CLUTCH SWITCH CIRCUIT
Turn ignition switch on.
CLUTCH S/W
INSPECT GROUND CONNECTION
Is there continuity between terminal 3 and
body ground ?
No → Open circuit in wire harness between
terminal 3 and body ground.
Yes
↓
COMPUTER
INSPECT CLUTCH SWITCH CIRCUIT
Disconnect connector from computer.
Is there continuity between terminal 11 of wire
harness side connector and body ground with
clutch pedal depressed ?
No → • Open circuit in wire harness between
terminal 11 of computer and terminal 2
of clutch switch.
• Inspect clutch switch.
Yes
↓
Replace computer.
