INSPECTION OF NEUTRAL START SWITCH CIRCUIT — MK2 Supra Body Electrical System, page 80
100%

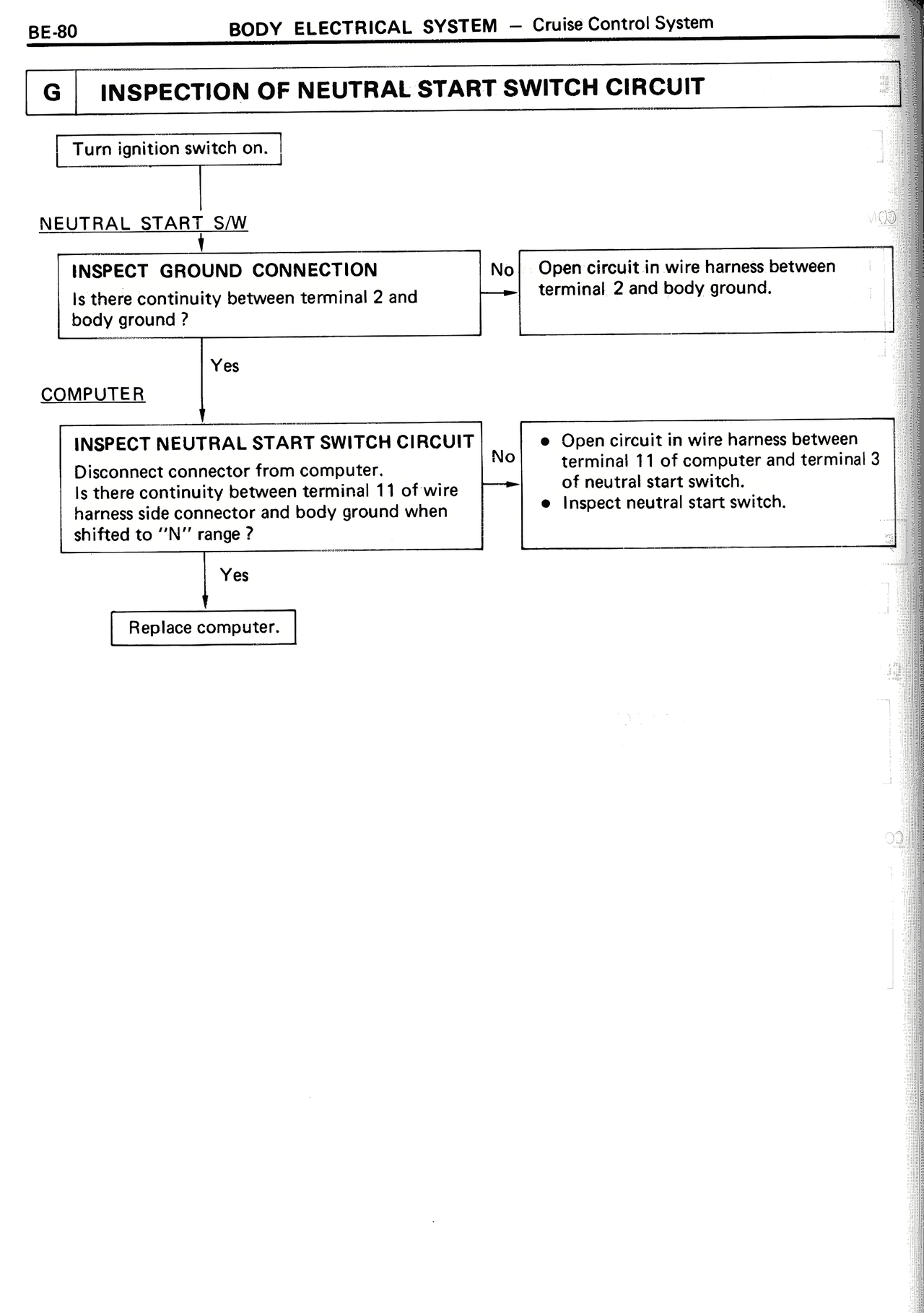

BE-80 BODY ELECTRICAL SYSTEM — Cruise Control System G INSPECTION OF NEUTRAL START SWITCH CIRCUIT Turn ignition switch on. NEUTRAL START S/W INSPECT GROUND CONNECTION Is there continuity between terminal 2 and body ground? No Open circuit in wire harness between terminal 2 and body ground. Yes COMPUTER INSPECT NEUTRAL START SWITCH CIRCUIT Disconnect connector from computer. Is there continuity between terminal 11 of wire harness side connector and body ground when shifted to "N" range? No • Open circuit in wire harness between terminal 11 of computer and terminal 3 of neutral start switch. • Inspect neutral switch. Yes Replace computer.
